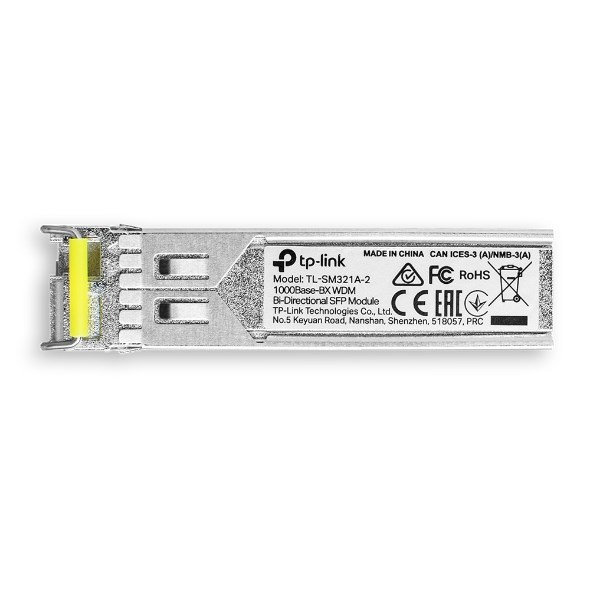

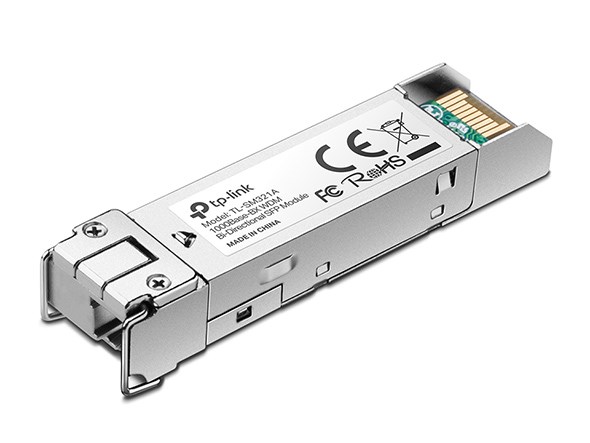

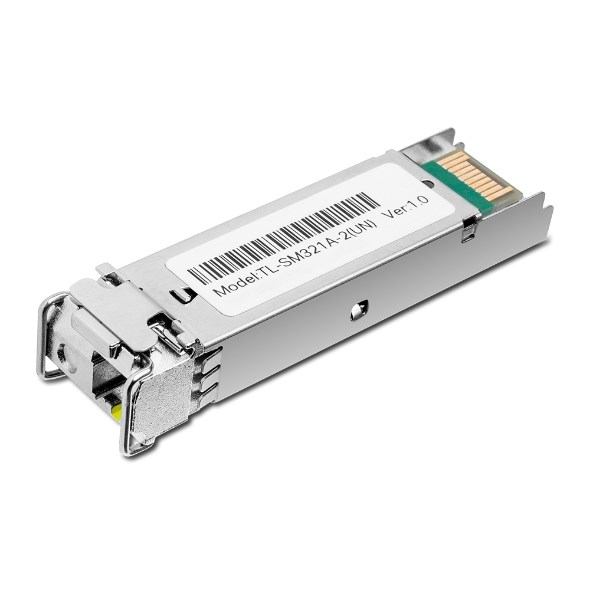

TP-Link TL-SM321A network transceiver module Fiber optic 1250 Mbit/s SFP

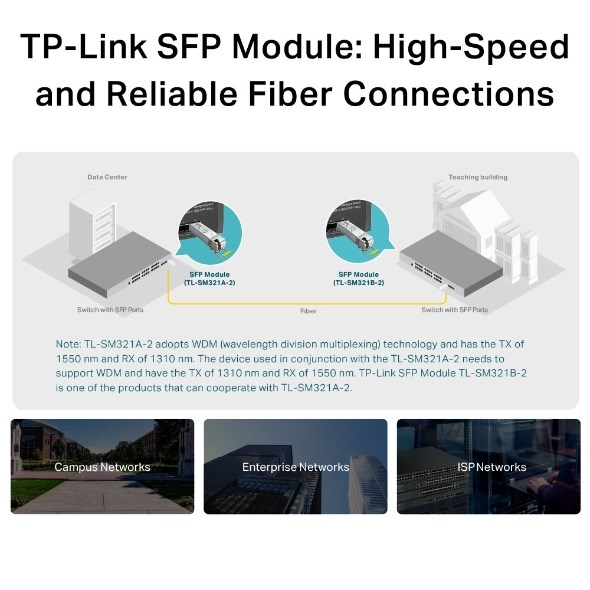

TP-LINK´s TL-SM321A adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km (6.2 miles) paired with TP-LINK TL-SM321A, MC112CS, or compatible third-party WDM module.

23 IN STOCK

SKU: TL-SM321A-2

Manufacturer: TP-Link TP-Link

RRP Price €15.41

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
1250 Mbit/s
Interface type
SFP
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No

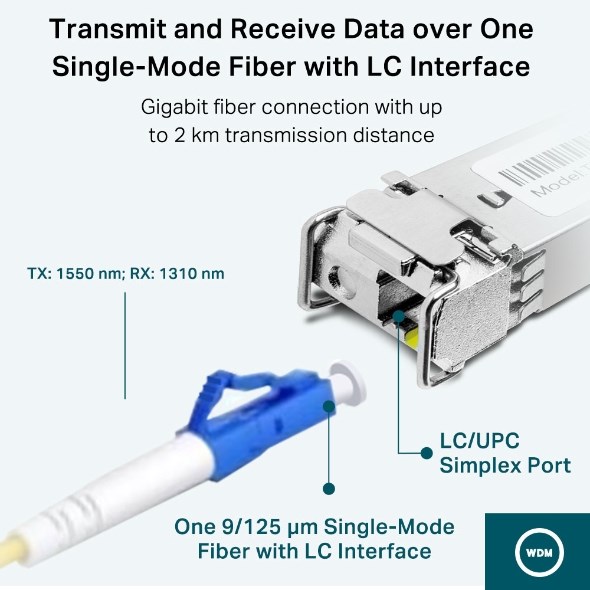

Fiber optic connector
LC (UPC)
Fiber cable diameters supported (core/cladding)
9/125 µm
SFP transceiver standard
BX
Maximum transfer distance
1000 m
Tx wavelength (max)
1550 nm
Rx wavelength (max)
1310 nm
Networking standards
IEEE 802.3z
Fiber ethernet cabling technology
1000BASE
Wavelength-division multiplexing (WDM)
Yes

Features

Product colour
Metallic
Hot-swap
Yes

Power

Input voltage
3.3 V

Certificates

Compliance certificates
RoHS
Certification
CE, FCC

Operational conditions

Operating temperature (T-T)
0 - 70 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
81.5 mm
Package depth
122.5 mm
Package height
38.5 mm
Package weight
60 g

Logistics data

Harmonized System (HS) code
85369010
