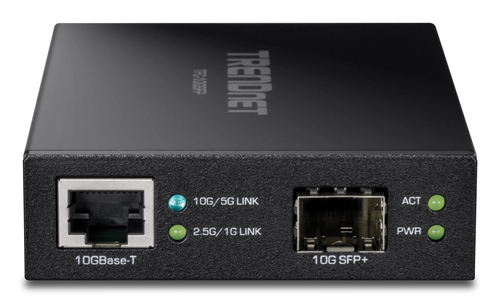

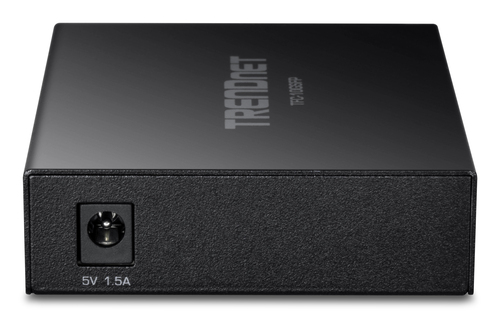

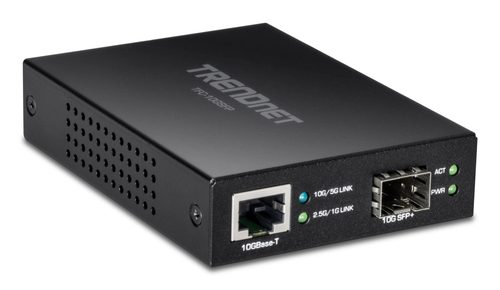

Trendnet TFC-10GSFP network media converter 10000 Mbit/s

TRENDnet’s compact 10GBASE-T to SFP Fiber Media Converter, model TFC-10GSFP, converts a 10GBASE-T (Copper 10Gbps) ethernet connection to 10G BASE-SX/LX (Fiber) SFP media connection , and vice versa. The 10GBASE-T RJ-45 port on the 10G SFP+ transceiver supports a full-duplex 10G connection at wire speed. The SFP slot supports both multimode (SX) or single-mode (LX) SFP modules.

ON ORDER

SKU: TFC-10GSFP

Manufacturer: Trendnet Trendnet

RRP Price €141.06

Specifications

Network

Maximum data transfer rate
10000 Mbit/s
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3z
Ethernet interface type
10 Gigabit Ethernet
Duplex system
Full

Features

Internal
No

Ports & interfaces

Connectivity technology
Wired
Ethernet LAN (RJ-45) ports
1
Fiber ports quantity
1
Fiber optic connector
SFP+

Power

Input voltage
110 - 240 V
AC input frequency
50 - 60 Hz
Output voltage
5 V
Output current
1.5 A
Power consumption (max)
4 W

Weight & dimensions

Width
105 mm
Depth
75 mm
Height
22 mm
Weight
188 g

Operational conditions

Operating temperature (T-T)
0 - 50 °C

Certificates

Certification
CE FCC
