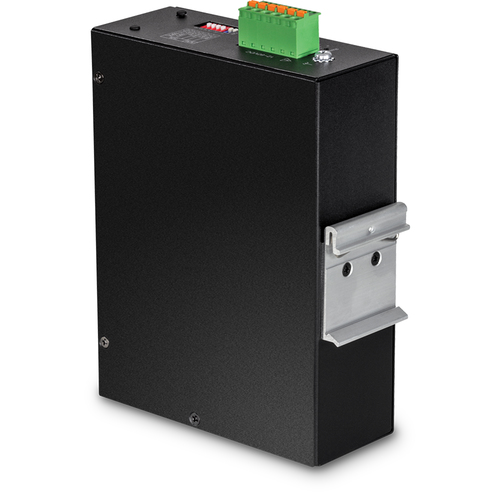

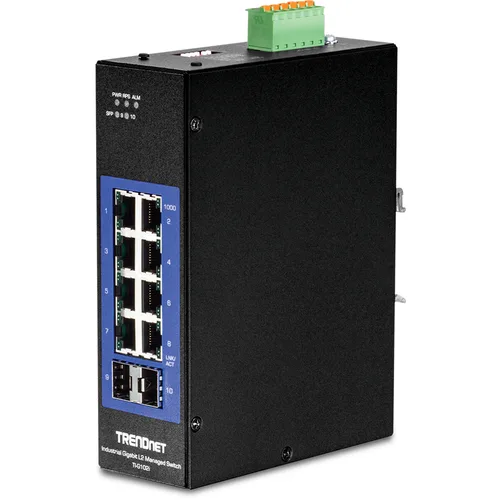

Trendnet TI-G102i Managed L2 Gigabit Ethernet (10/100/1000) Black

TRENDnet’s Industrial Gigabit L2 Managed DIN-Rail Switch series offers advanced layer 2 managed features with enhanced traffic controls to meet the evolving demands of today’s SMB networks. Each industrial layer 2 managed switch is equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Our industrial layer 2 managed switch models feature copper Gigabit ports for high-speed device connections, and SFP slots that support both 100Base-FX and 1000Base-FX modules for long distance fiber networking applications.

These industrial layer 2 managed DIN-Rail switches provide an intuitive web-based management interface. Each TRENDnet industrial layer 2 managed switch supports advanced traffic management controls, troubleshooting, and SNMP monitoring. Advanced managed switch features include LACP to group ports together to increase bandwidth between switches, VLANs for segmenting and isolating virtual LAN groups, QoS for traffic prioritization, port bandwidth controls, and SNMP monitoring making each TRENDnet industrial layer 2 managed switch a powerful solution for SMB networks.

ON ORDER

SKU: TI-G102I

Manufacturer: Trendnet Trendnet

RRP Price €345.97

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Configuring Location Settings (CLI)
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2

Network

Networking standards
IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Port mirroring
Yes
Full duplex
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Spanning tree protocol
Yes

Data transmission

Switching capacity
20 Gbit/s
Forwarding rate
14.88 Mpps
MAC address table
8192 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10240

Security

DHCP features
DHCP relay
Access Control List (ACL)
Yes
IGMP snooping
Yes
BPDU filtering/protection
Yes
Authentication
Guest VLAN
Authentication type
RADIUS

Multicast features

Multicast support
Yes
Number of multicast groups filtered
256

Protocols

Management protocols
SNMP v1, v2c, v3

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
Reset button
Yes
LED indicators
Yes
International Protection (IP) code
IP30
DIN rail mounting
Yes

Performance

Firmware upgradeable
Yes
Mean time between failures (MTBF)
617085 h

Power

Redundant power supply (RPS) support
Yes
Power consumption (max)
13 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
160 mm
Depth
120 mm
Height
50 mm
Weight
884 g

Packaging content

Quick start guide
Yes

Certificates

Certification
CE, FCC

Logistics data

Harmonized System (HS) code
85176990
