Trendnet TI-BE200 network extender Network transmitter & receiver Black 10, 100, 1000 Mbit/s

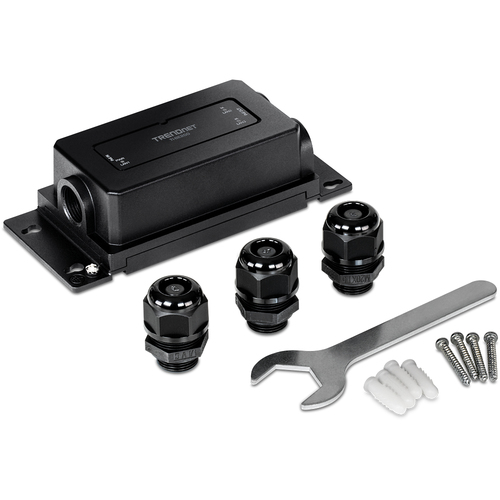

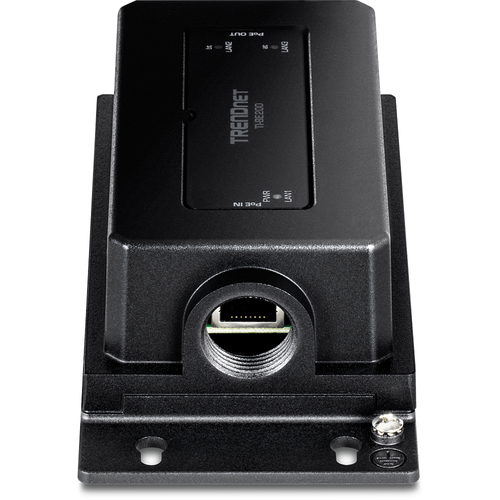

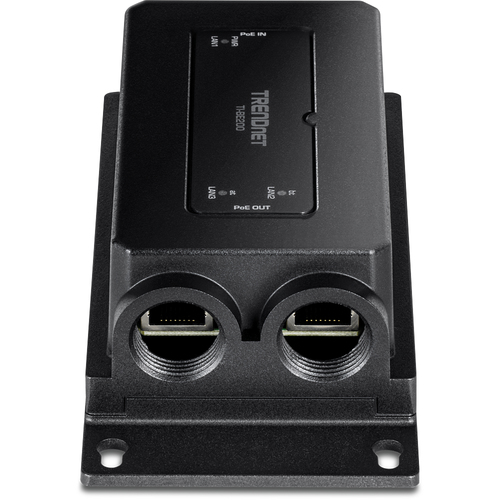

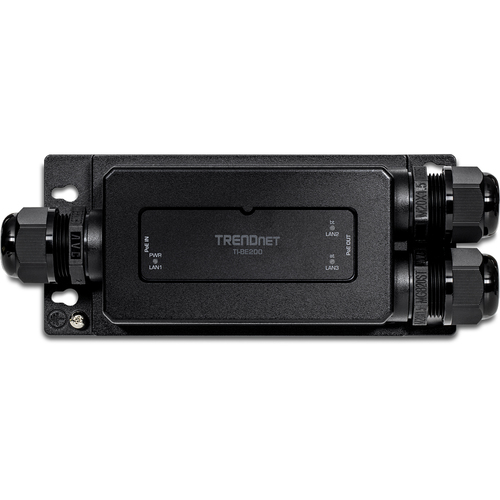

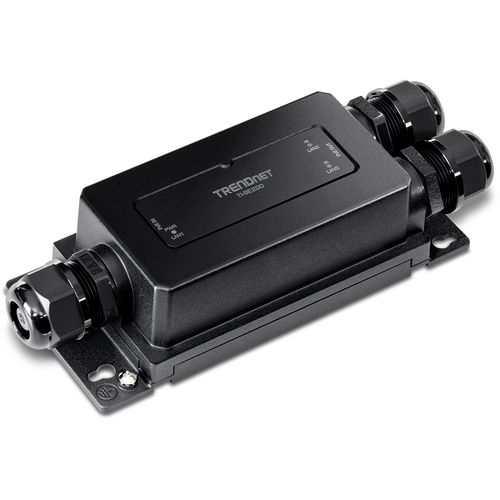

TRENDnet’s 2-Port Industrial Outdoor Gigabit PoE++ Extender, model TI-BE200, takes a single PoE++ (90W) connection and extends it an additional 100 meters (328 ft.) for up to two PoE+ devices. The industrial outdoor PoE++ extender auto-detects a PoE (15.4W), PoE+ (30W), or PoE++ (60W) signal, and extends it for a total distance of up to 200 meters (656 ft.) from the PoE source. Daisy chain up to four outdoor PoE++ extenders together for a total PoE network extension of up to 500 meters (1,640 ft.). This industrial PoE++ extender features a single PoE++ input port and two PoE+ output ports encased in an IP67 weather rated housing.

PoE++ Power

Extends a PoE++ (90W) connection up to 100 meters (328 ft.) to PoE (15.4W), PoE+ (30W), and PoE++ (60W) devices.

Gigabit Ports

Features one gigabit PoE++ input port and two gigabit PoE+ output ports that extend a single PoE++ connection an additional 100 meters (328 ft.) to two PoE+ devices.

Outdoor Rated

Built for outdoor and industrial environments, with an IP67 weather rated metal housing and an operating temperature range of -40°– 75° C (-40° – 167° F).

Extension Distance

Extends a PoE, PoE+, or PoE++ network connection an additional 100 meters for a total distance of up to 200 meters (656 ft.) from the PoE source

PoE/PoE+/PoE++

The industrial PoE++ extender conveniently auto detects PoE (15.4W), PoE+ (30W), and PoE++ (60W) network connections

Gigabit Ports

1 x Gigabit PoE++ input port, 2 x Gigabit PoE++ output ports, with a 60W PoE budget and a 90W PoE++ input

Daisy Chain

Connect up to 4 outdoor PoE++ repeaters for a total PoE network extension of up to 500m (1,640 ft.)*

PoE Powered

No external power required—saves installation time and cost

Outdoor Ready

The outdoor PoE++ extender features a rugged IP67 outdoor weather rated metal housing

ON ORDER

SKU: TI-BE200

Manufacturer: Trendnet Trendnet

RRP Price €203.84

Specifications

Performance

Type
Network transmitter & receiver
Maximum transfer distance
100 m
Data transfer rate
2000 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Jumbo frames support
Yes
Duplex system
Full, Half
MAC address table
2048 entries
International Protection (IP) code
IP67

Network

Cabling technology
10/100/1000Base-T(X)
Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x

Ports & interfaces

Ethernet LAN (RJ-45) ports
3

Design

Product colour
Black
Mounting type
Wall
LED indicators
Yes
Certification
FCC IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 IEC 60068-2-27 IEC 60068-2-32 IEC 60068-2-6

Power

Power consumption (typical)
2.8 W
External power adapter
No
Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
60 W

Operational conditions

Operating temperature (T-T)
-40 - 75 °C

Weight & dimensions

Width
167 mm
Depth
74 mm
Height
44 mm
Weight
364 g

Packaging content

Quick start guide
Yes
Wall mounting kit
Yes
AC adapter included
No

Sustainability

Sustainability compliance
Yes

Certificates

Compliance certificates
CE
