Tripp Lite U460-2A2C-IND Industrial 4-Port USB-C Hub - USB 3.x Gen 2 (10Gbps), 2x USB-A & 2x USB-C Ports, 15 kV ESD Immunity

Industrial-Grade USB 3.2 Gen 2 Hub Adds up to 4 USB Devices to Your Computer
This USB 3.2 Gen 2 hub with a heavy-duty all-metal housing connects as many as four USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host computer. The durable metal housing withstands harsh physical conditions in industrial and commercial applications, such as factories, construction sites, supply rooms and warehouses. Note
: Host must support USB OTG (On-the-Go).

Transfers Data at Lightning-Fast USB 3.2 Gen 2 Speeds and Charges Mobile Devices
All four downstream USB ports transfer data at speeds up to 10 Gbps, which is twice as fast as USB 3.2 Gen 1. In addition to accepting USB peripherals, the two USB-C and two USB-A ports provide up to 0.9 amps each for charging and powering mobile devices simultaneously. Because the ports are BC 1.2-compliant, they can deliver up to 2 amps of fast-charging power to mobile devices (when connected to power).

USB-C Ports Help Prevent Your Devices from Becoming Disconnected
Equipment vibrations in industrial environments can loosen cable connections over time. This hub’s USB-C ports, including the host port, support USB cables with locking connectors that can prevent devices and peripherals from accidentally coming loose. All USB-C and USB-A ports are backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.

Protects Your Devices against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, wiping out data and damaging sensitive electronics. This four-port hub includes ESD protection to ±15 kV, reducing potential static damage to your connected peripherals. This feature works in tandem with ±2.5kV-per-port overcurrent protection to safeguard your connected devices against damage and data loss from power surges.

Reversible USB-C Cable Connects in Either Direction
Connect the included two-foot USB-C cable between your source device’s USB-C or Thunderbolt 3 port and the hub’s host port. The fumble-free USB-C plugs connect in either direction to ensure fast, easy connection every time.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

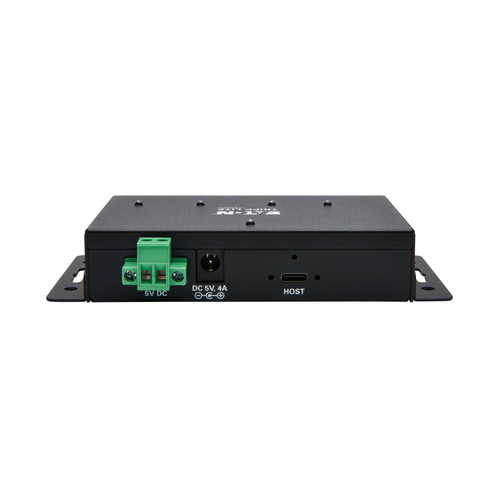

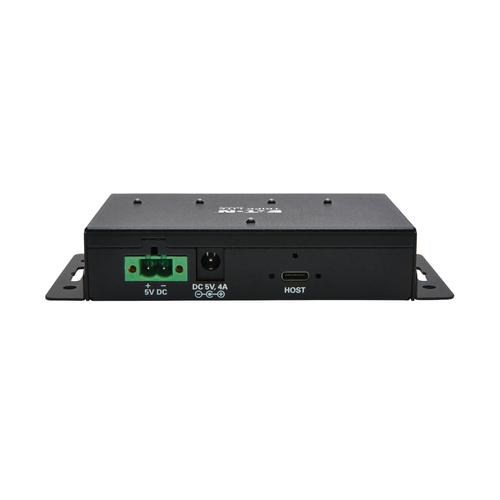

The U460-2A2C-IND requires no software or drivers to download and install. You can power the unit by connecting the included power adapter to a standard AC outlet, or you can use the included 2-wire terminal block to draw power from a power terminal. The hub mounts easily to a wall or other flat surface using the built-in brackets and user-supplied hardware.

TAA-Compliant for GSA Schedule Purchases
The U460-2A2C-IND is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: U460-2A2C-IND

Manufacturer: Eaton Eaton

RRP Price €160.10

Specifications

Ports & interfaces

Host interface
USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
Ports quantity
4

Features

Data transfer rate
10000 Mbit/s
Product colour
Black
Housing material
Metal
Overcurrent protection
Yes
LED indicators
Activity, Power
Plug and Play
Yes
Country of origin
China

Network

UASP support
Yes

Power

Power consumption (typical)
1.75 W
Input voltage
100 - 240 V
Input current
0.6 A
AC input frequency
50 - 60 Hz
Output voltage
5 V
Output current
4 A
USB charging port
Yes

Weight & dimensions

Width
107 mm
Depth
64 mm
Height
25 mm
Weight
230 g

Packaging data

Package width
230.1 mm
Package depth
198.1 mm
Package height
63 mm
Package weight
600 g
Package type
Box

Packaging content

AC adapter included
Yes
Included power plug types
AU, EU, UK, US
Cables included
USB Type-C
Manual
Yes
Terminal block included
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Operating temperature (T-T)
32 - 122 °F
Storage temperature (T-T)
-10 - 80 °C
Operating relative humidity (H-H)
0 - 90%

Logistics data

Master (outer) case width
430 mm
Master (outer) case length
355.1 mm
Master (outer) case height
249.9 mm
Master (outer) case gross weight
7.3 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332236316
Harmonized System (HS) code
84719000
