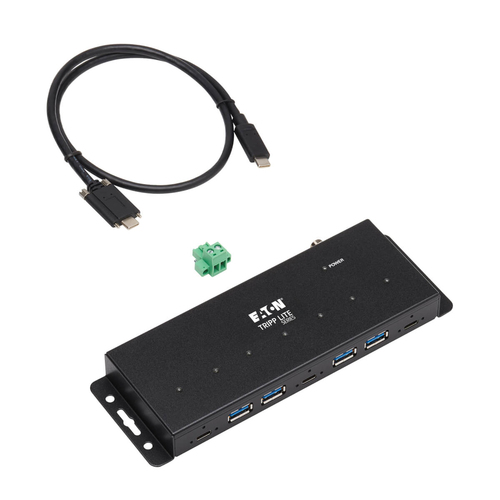

Tripp Lite U460-4A3C-IND Industrial 7-Port USB-C Hub, USB 3.x Gen 2 (10Gbps), 4x USB-A & 3x USB-C Ports, 15Kv ESD Immunity, 2Kv Surge

Tripp Lite U460-4A3C-IND Industrial 7-Port USB-C Hub, USB 3.x Gen 2 (10Gbps), 4x USB-A & 3x USB-C Ports, 15Kv ESD Immunity, 2Kv Surge

Name: Tripp Lite U460-4A3C-IND Industrial 7-Port USB-C Hub, USB 3.x Gen 2 (10Gbps), 4x USB-A & 3x USB-C Ports, 15Kv ESD Immunity, 2Kv Surge
Brand: Eaton
SKU: U460-4A3C-IND
Price: 205.48 EUR
Availability: OutOfStock

Industrial-Grade USB 3.1 Gen 2 Hub Adds up to 7 USB Devices to Your Computer
This USB 3.1 Gen 2 hub with a heavy-duty all-metal housing connects as many as seven USB devices, such as external hard drives, industrial printers, barcode scanners, serial devices and sensors, to your host computer. The heavy-duty metal housing withstands harsh physical conditions in industrial and commercial locations, such as factories, construction sites, supply rooms and warehouses.
Note: Host must support USB OTG (On-the-Go)
Transfers Data at Super-Fast USB 3.1 Gen 2 Speeds and Charges Mobile Devices

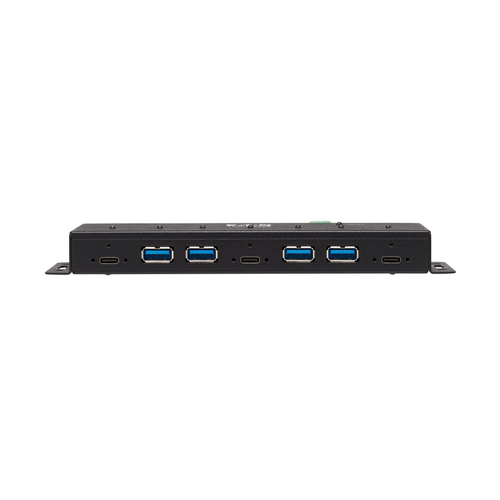

The four USB-A and three USB-C ports can transfer data at speeds up to 10 Gbps, which is twice as fast as USB 3.1 Gen 1. If all the ports are used simultaneously, each port provides up to 0.9 amps of power. Because the ports are BC 1.2-compliant, they can deliver up to 1.5 amps of charging power to mobile devices (when connected to power). The ports are backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.

USB-C Ports Support Cables with Locking Screws for Extra-Secure Connections
Equipment vibrations in industrial environments can loosen cable connections over time. This hub’s USB-C ports, including the host port, support USB cables that have locking screws to help prevent unintentional disconnection. The hub comes with a 2 ft. USB-C cable with male connectors; one connector has locking screws for secure attachment to the hub’s host port. The other end connects to your computer.

Protects Your Devices Against Electrostatic Discharge (ESD) and Overcurrent
Machines on the shop floor can generate electrostatic discharges, which can wipe out data and damage sensitive electronics. This seven-port hub includes ESD protection to ±15 kV, reducing potential static damage to connected peripherals. This feature works in tandem with ±2.5 kV per port overcurrent protection to safeguard connected devices against damage and data loss from power surges.

Plug-and-Play Hub Offers Flexible Power and Mounting Options

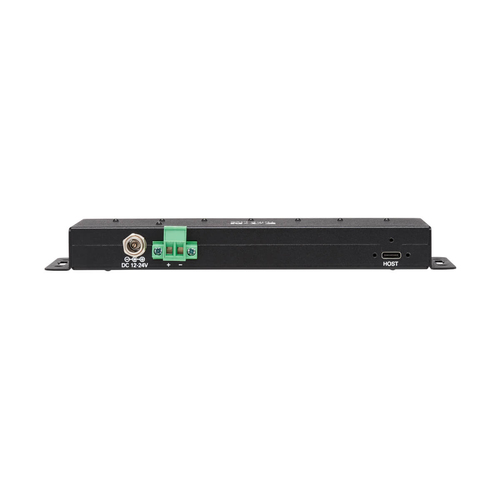

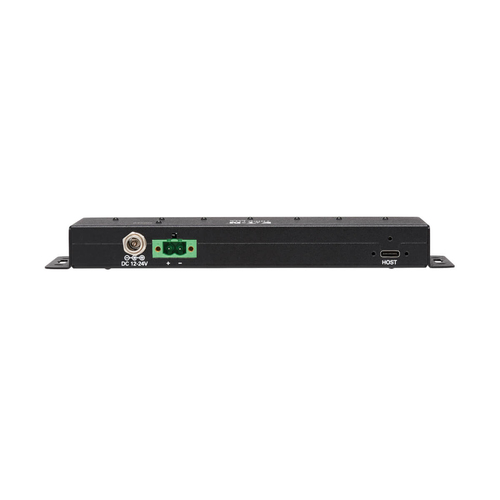

This hub does not require software or drivers. To power the hub, use the included 2-wire terminal block to draw power from a power terminal or connect a compatible user-supplied power adapter to an AC outlet. LEDs indicate power and connection status. Place the hub on a flat surface or mount it to a wall or desk using the built-in brackets and user-supplied hardware.

TAA-Compliant for GSA Schedule Purchases
The U460-4A3C-IND complies with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: U460-4A3C-IND

Manufacturer: Eaton Eaton

RRP Price €205.48

Specifications

Ports & interfaces

Host interface

USB 3.2 Gen 2 (3.1 Gen 2) Type-C

Hub interfaces

USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

Ports quantity

Terminal block port

Yes

Features

Data transfer rate

10000 Mbit/s

Product colour

Black

Housing material

Metal, SECC

Overcurrent protection

Yes

LED indicators

Yes

Plug and Play

Yes

Country of origin

Taiwan

Certification

CE, FCC, RoHS, REACH

Power

Power source type

USB

Weight & dimensions

Width

188 mm

Depth

64 mm

Height

20 mm

Weight

300 g

Packaging data

Package width

230.1 mm

Package depth

198.1 mm

Package height

63 mm

Package weight

500 g

Package type

Box

Packaging content

Cables included

USB Type-C

Manual

Yes

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Operating temperature (T-T)

32 - 122 °F

Storage temperature (T-T)

-10 - 80 °C

Operating relative humidity (H-H)

0 - 90%

Storage relative humidity (H-H)

0 - 90%

Logistics data

Master (outer) case width

430 mm

Master (outer) case length

335 mm

Master (outer) case height

249.9 mm

Master (outer) case gross weight

5.7 kg

Products per master (outer) case

10 pc(s)

Master (outer) case GTIN (EAN/UPC)

10037332239911

Harmonized System (HS) code

84719000

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.3 kg

Country of Origin

N/A

Datasheet
