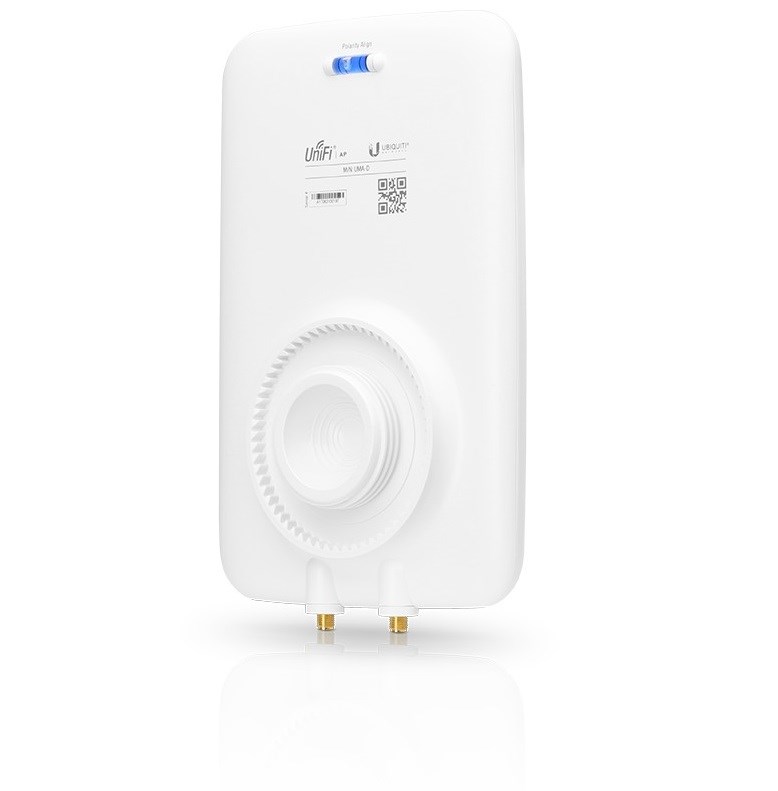

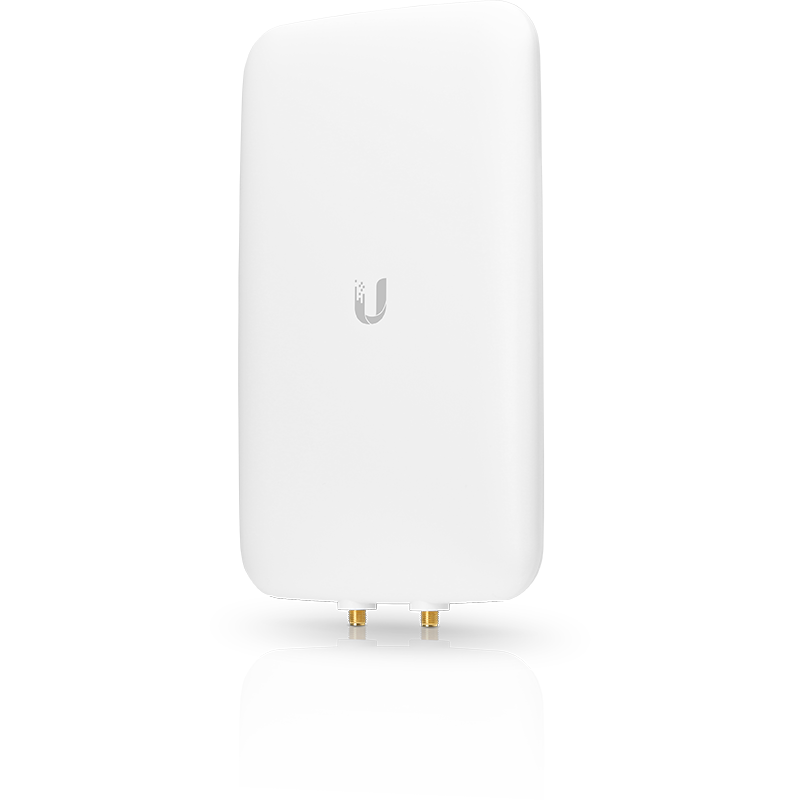

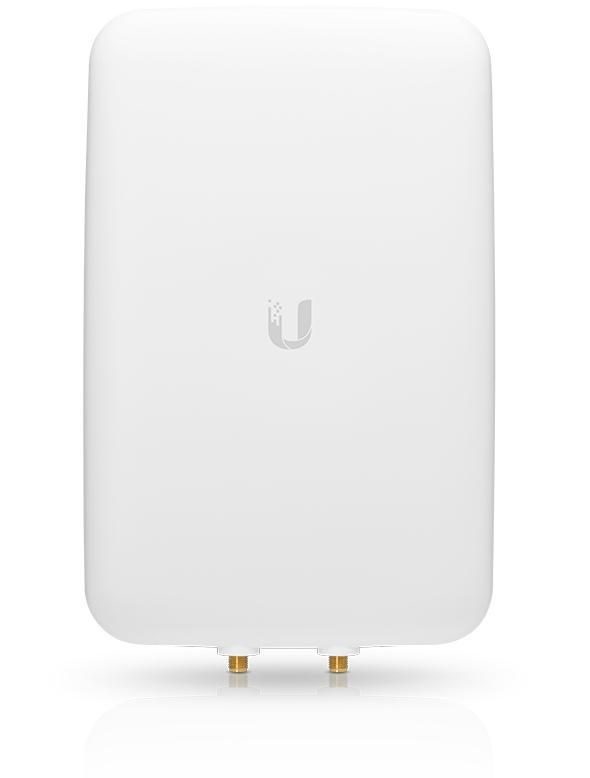

Ubiquiti UMA-D network antenna Directional antenna RP-SMA 15 dBi

Ubiquiti UMA-D network antenna Directional antenna RP-SMA 15 dBi

Name: Ubiquiti UMA-D network antenna Directional antenna RP-SMA 15 dBi
Brand: Ubiquiti
SKU: UMA-D
Price: 104.89 EUR
Availability: InStock

The UniFi Antenna, model UMA-D, is an optional mesh antenna designed to work with the UniFi® AC Mesh AP, model UAP-AC-M. With dual-band support, the UMA-D expands range coverage and provides customized pattern shaping. It is available in single- and five-packs.

Antenna Features
Optimized for 802.11ac, the UMA-D offers a high efficiency directional radiation pattern with dual polarity.

Weather-Resistant Enclosure
Encased in UV-stabilized plastic, the UMA-D can be used indoors or outdoors.

Versatile Mounting

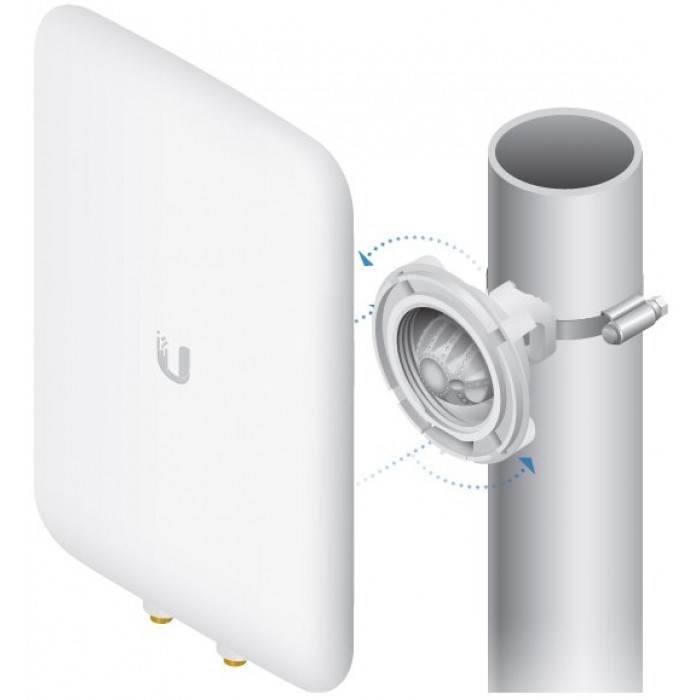

The UMA-D has a ball joint mount designed for precise aiming and can be mounted on a pole or wall.

Compatibility
The UMA-D is a connectorized antenna that is compatible with the UAP-AC-M.

17 IN STOCK

SKU: UMA-D

Manufacturer: Ubiquiti

RRP Price €104.89

Specifications

Performance

Frequency band

2.4 - 2.5, 5.1 - 5.9 GHz

Networking standards

IEEE 802.11ac

Antenna gain (2.4 GHz)

10 dBi

Antenna gain (5 GHz)

15 dBi

Horizontal beam width (2.4 GHz)

90°

Vertical beam width (2.4 GHz)

90°

Horizontal beam width (5 GHz)

45°

Vertical beam width (5 GHz)

45°

Antenna gain level (max)

15 dBi

Features

Antenna type

Directional antenna

Antenna connector type

RP-SMA

Polarization

Dual polarization

Voltage Standing Wave Ratio (VSWR)

2:1

Product colour

White

Housing material

Plastic

Mounting

Wall/Pole

Purpose

Indoor & outdoor

Compatible products

UAP-AC-M

Weight & dimensions

Width

128 mm

Depth

32.5 mm

Height

201.3 mm

Weight

480 g

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Yes

Logistics data

Harmonized System (HS) code

85177100

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.48 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
