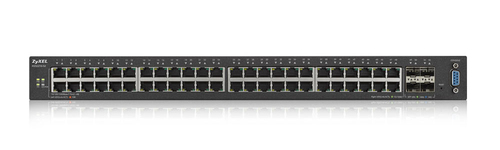

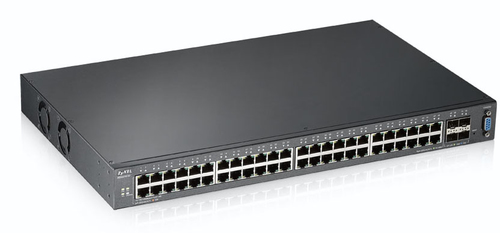

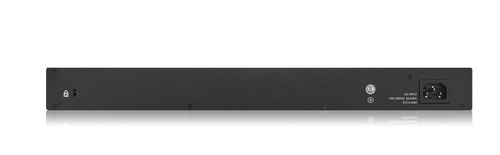

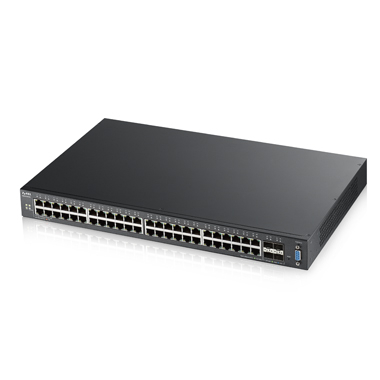

Zyxel XGS2210-52 Managed L2 Gigabit Ethernet (10/100/1000) 1U Black

Agile traffic control for converged networking applications

ZyXEL XGS2210/GS2210 Series has a rich Layer 2 feature set that can shape the traffic for diverse VoIP, video conference, IPTV and IP surveillance deployments and provide hotels, businesses andeducational institutions greater agility and more effective traffic management for the converged applications of today.

ZyXEL One Network experience

Aiming for relieving our customers from repetitive operations of deploying and managing a network, ZyXEL One Network is designed to simplify the configuration, management, and troubleshooting, allowing our customers to focus on the business priorities. ZyXEL One Network presents an easy-to-use tool, ZyXEL One Network Utility (ZON Utility), to realize speed network setup. ZyXEL Smart Connect allows ZyXEL networking equipment to be aware and recognize each other and further facilitating the network maintenance via one-click remote functions such as factory reset or power cycling. ZyXEL One Network redefines the network integration across multiple networking products from switch to Wi-Fi AP and to Gateway.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

High-powered Power over Ethernet (PoE)

The ZyXEL XGS2210/GS2210 Series PoE switches support the IEEE 802.3af PoE and 802.3at PoE Plus standards, which provide up to 30 watts of power per port for advanced Powered Devices (PD) like 802.11ac wireless APs and video IP phones. The high power budget enables the XGS2210/GS2210 PoE switches to comfortably accommodate the PDs required in a modern network edge.

24 IN STOCK

SKU: XGS2210-52-EU0101F

Manufacturer: Zyxel Zyxel

RRP Price €991.15

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Traffic shaping
Yes
ARP inspection
Yes
System event log
Yes
MIB support
RFC 1066, RFC 1213, RFC 1493, RFC 1643, RFC 1757, RFC 2011, RFC 2233, RFC 2358, RFC 2674, RFC 2819, RFC 2925, RFC 3621, RFC 4022, RFC 4113, RFC 4292, RFC 4293

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
Yes
Port mirroring
Yes
IP routing
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Rate limiting
Yes
Spanning tree protocol
Yes
MAC address auto-learning supported
Yes
VLAN support
Yes
Virtual LAN features
Private VLAN, Protocol-based VLAN, Port-based VLAN

Data transmission

Switching capacity
176 Gbit/s
Throughput
130.9 Mpps
MAC address table
16000 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
1.5 MB

Security

DHCP features
DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS, SNMP, SSH, SSH-2
MAC address filtering
Yes
SSH/SSL support
Yes
BPDU filtering/protection
Yes
Authentication
MAC-based authentication

Multicast features

Multicast support
Yes

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Black
Safety
LVD, BSMI
Electromagnetic compatibility
FCC 15 (A), CE (A), BSMI

Performance

Noise level
44.15 dB
Plug and Play
Yes
Mean time between failures (MTBF)
970594 h

Power

AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
45 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
153.3 BTU/h

Weight & dimensions

Width
441 mm
Depth
270 mm
Height
45 mm
Weight
3.86 kg

Packaging content

Cables included
AC
Rack mount kit
Yes

Packaging data

Package width
622 mm
Package depth
358 mm
Package height
108 mm
Package weight
4.92 kg

Certificates

Certification
RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
