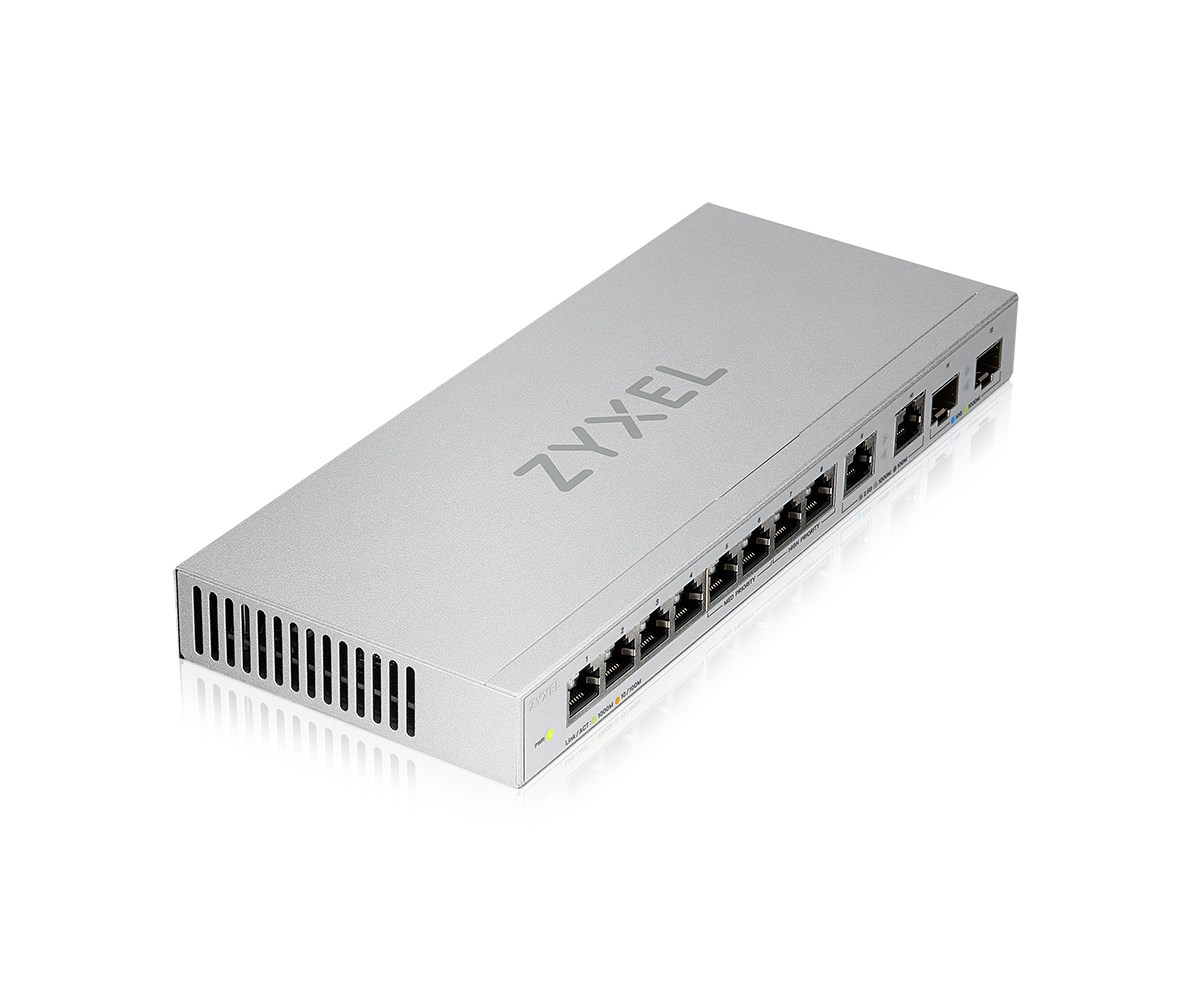

Zyxel XGS1010-12-ZZ0102F network switch Unmanaged Gigabit Ethernet (10/100/1000) Grey

12-Port 10G SFP+ Unmanaged Multi-Gigabit Switch provides high performance and simplified controls
The Zyxel XGS1010-12 comes with two 10G SFP+ uplink ports, two 2.5G Multi-Gigabit ports, and eight Gigabit Ethernet ports with plug-and play design. It has been designed specifically for customers who require an affordable 10GbE network connectivity over a variety of mixed environments from the home to the office.

Maximums the flexibility for your network.

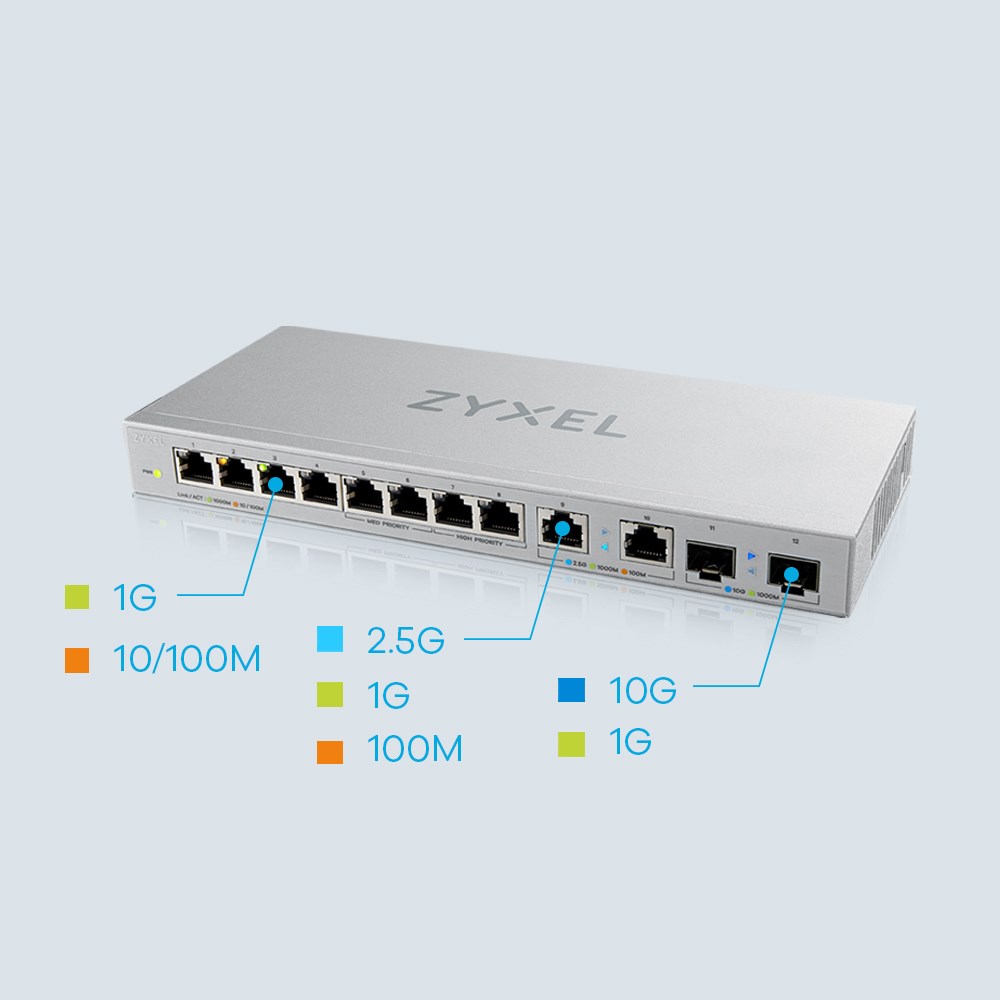

The XGS1010-12 features with 1G ports, 2.5G Multi-Gigabit ports, as well as 10G fiber ports. This port combination is capable of servicing a range of network devices such as gaming pc, NAS, workstation, or WiFi 6 AP.

Experience hyper-fast 2.5G networking!
Equipped with two 2.5G Multi-Gigabit ports, the switch gives your wired connection a boost, with speeds that are 2.5 times faster than standard Gigabit connections. It is the most ideal option to work with new motherboard for speedy file transfers, lag-free gaming, and high-res video streaming.

10G SFP+ Ultra Speed Uplink.
Provide two SFP+ ports compatible with 10GbE, which offers higher transmission speeds, instantly upgrade to a hybrid high-speed network environment at a cost-effective price.

QoS for Better Traffic Control.
The Zyxel XGS1010-12 comes with two high-priority and two medium p-priority ports, which provides enhanced download quality, all while giving you a better surfing, gaming, and streaming experience on other devices.

Easy to Use, No Setup Required.
Its easy plug-and-play design allows you to connect the XGS1010-12 to VoIP, media players, game consoles, set-top box, and any other web browsing devices to your home or studio network without any configuration.

Saving energy and space.

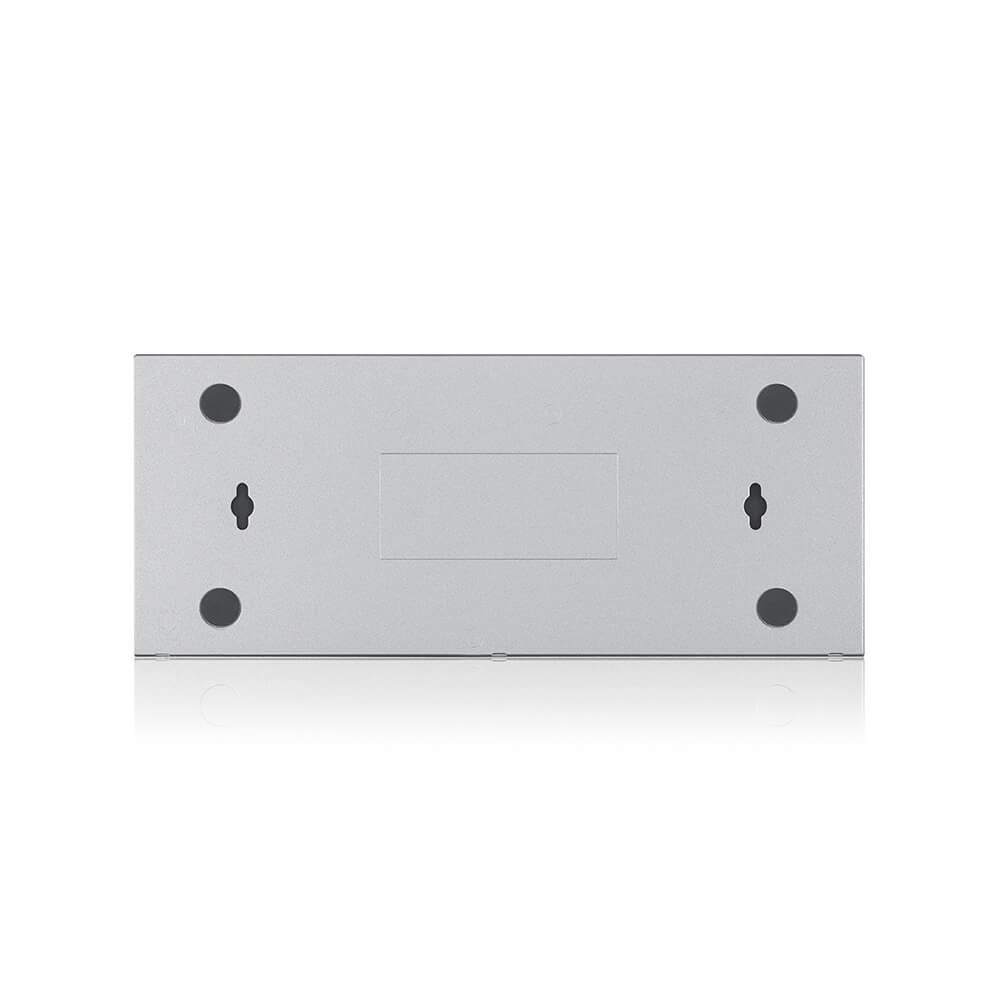

The fanless design ensures noiseless operation. Also, its built-in Energy Efficient Ethernet function automatically adjusts power consumption to dynamically reduce power usage during low link utilization. The wall-mount installation design provides more flexibility for wired home or office networks.

6 IN STOCK

SKU: XGS1010-12-ZZ0102F

Manufacturer: Zyxel Zyxel

RRP Price €156.92

Specifications

Management features

Switch type
Unmanaged
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
2.5G Ethernet (copper) ports quantity
2
SFP+ module slots quantity
2

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s

Data transmission

Switching capacity
66 Gbit/s
Forwarding rate
49 Mpps
MAC address table
16000 entries
Jumbo frames support
Yes
Jumbo frames
12000
Packet buffer memory
1.5 MB

Security

Access Control List (ACL)
Yes

Design

Rack mounting
No
Product colour
Grey
Reset button
Yes
LED indicators
Yes

Power

Power source
AC/DC
Power supply included
Yes
AC input voltage
100 - 240 V
DC input voltage
12 V
Input current
1.5 A
Power consumption (max)
15.61 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
10 - 90%

Weight & dimensions

Width
250 mm
Depth
104 mm
Height
24 mm
Weight
768 g

Packaging data

Package width
306 mm
Package depth
225 mm
Package height
64 mm
Package weight
1.22 kg

Logistics data

Harmonized System (HS) code
85176990
