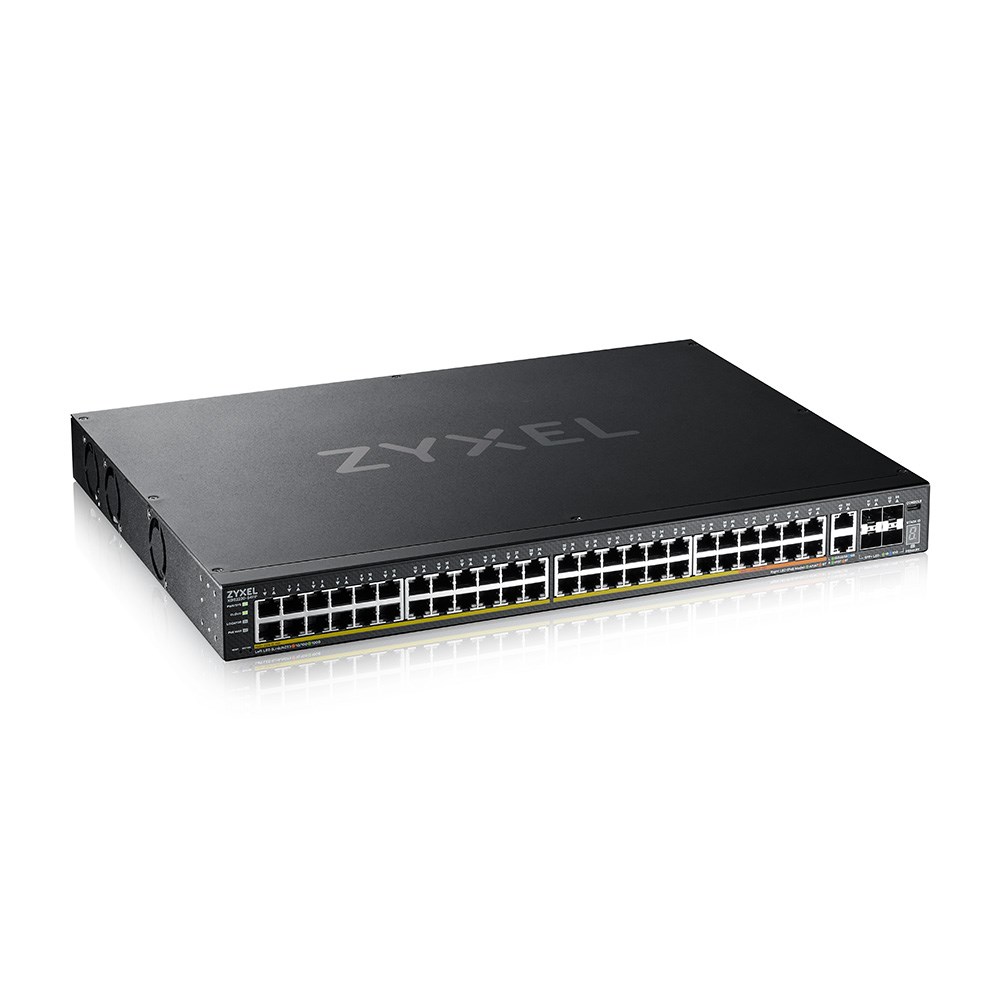

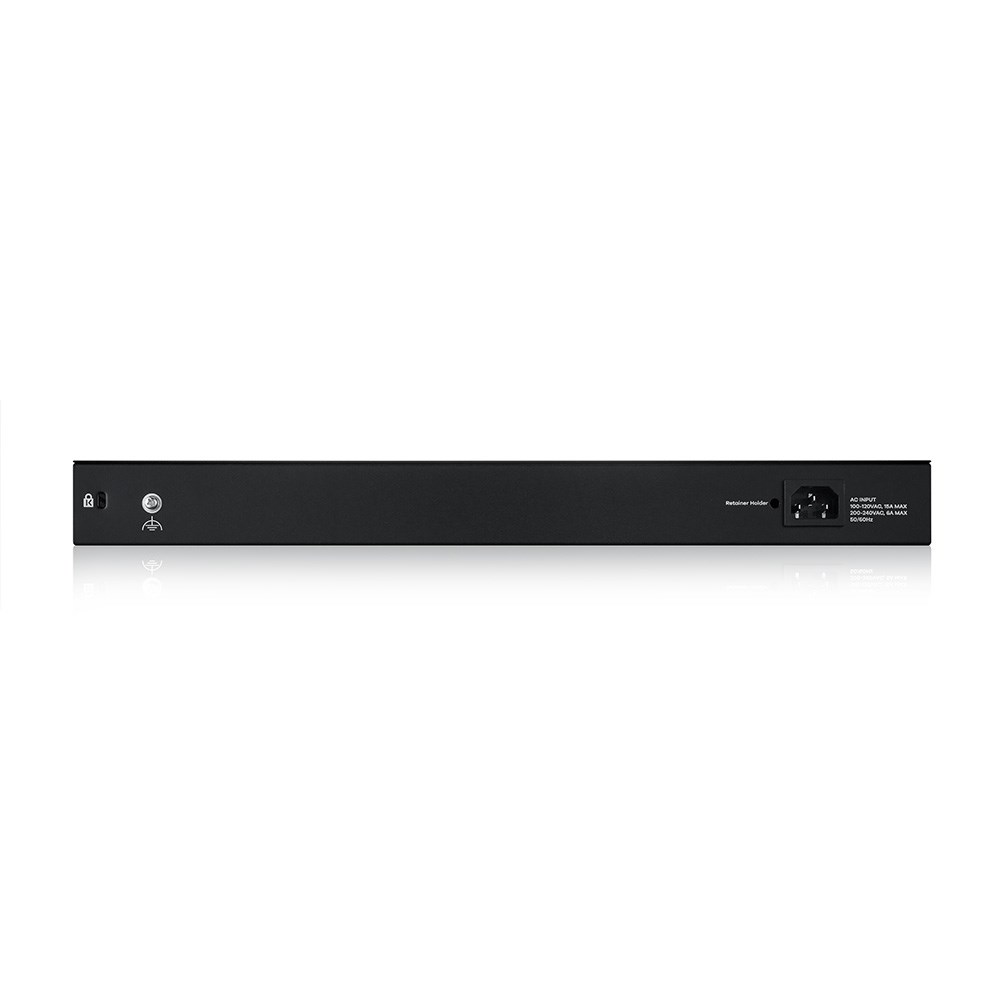

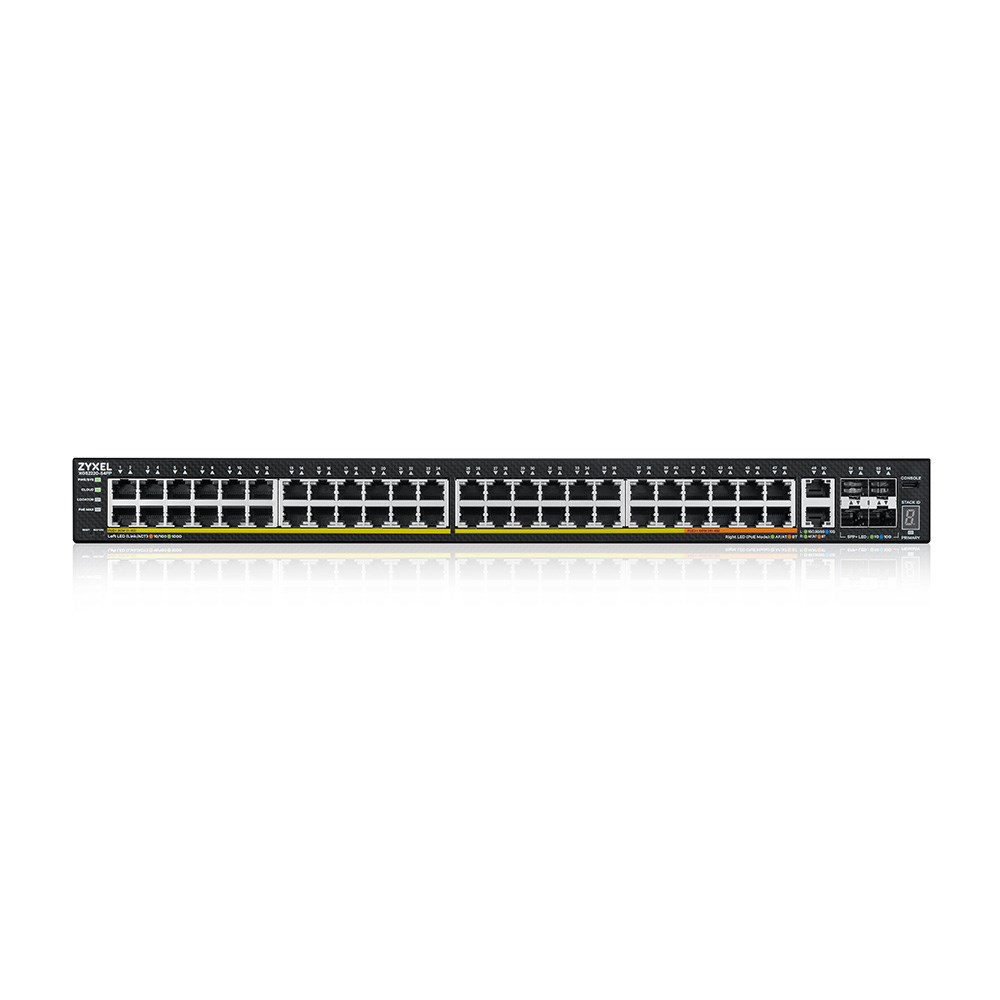

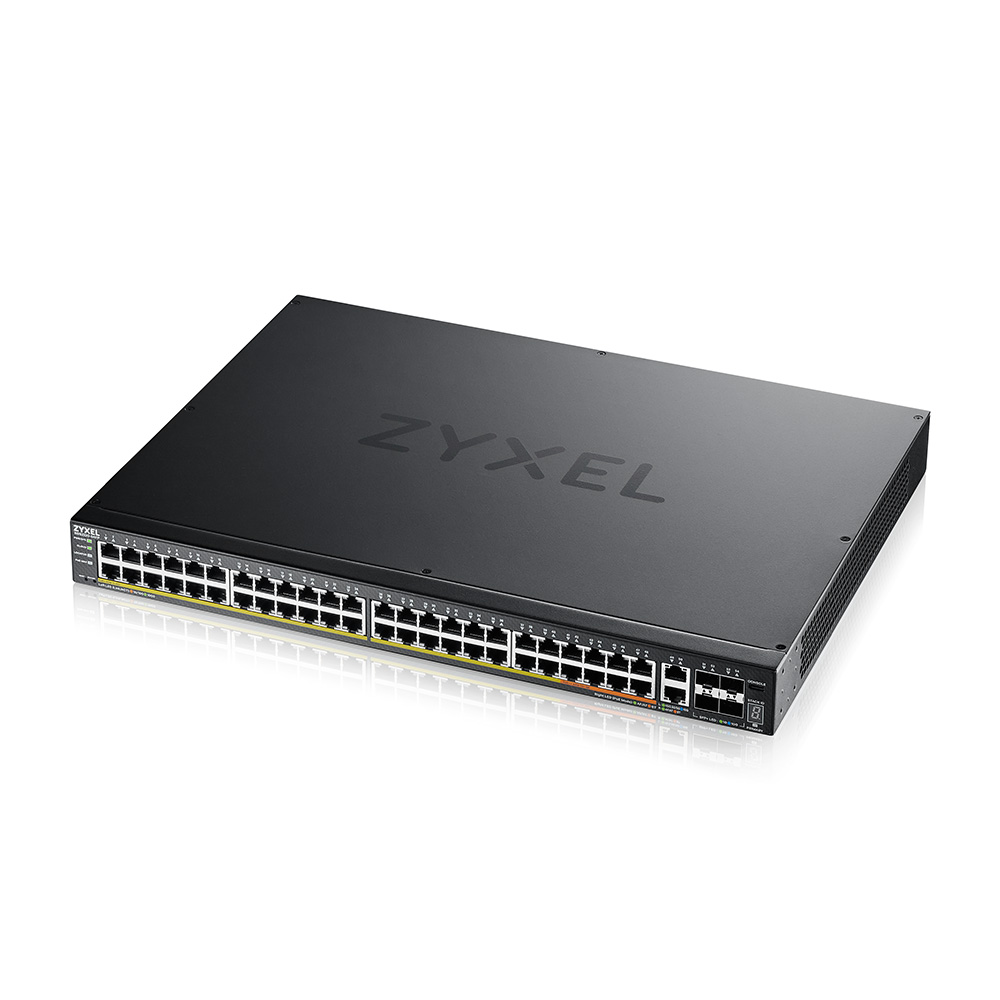

Zyxel XGS2220-54FP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE)

Nebula Cloud-managed Layer 3 Enterprise Switch
The XGS2220 Series is a family of Layer 3 access Switches that consists of six models, including PoE, Non PoE and Fiber options. Non PoE models offer Gigabit desktop ports for everyday network access; PoE models allow flexible options with larger PoE budgets and a mix of 60 W and 30 W ports to power devices like the latest WiFi 6/6E Wireless Access Points; The Fiber model aims to achieve business connectivity for high fiber port density requirement.

Flexible 10G For Converged Networking Applications
On top of four 10G SFP+ uplinks, the XGS2220 Series comes with two additional 10G Multi-Gig RJ 45 ports to offer the flexibility to connect to servers, network storage, or other high speed network devices. Business can operate smoothly with the better extensibility and robust network infrastructure.

Multiple Power Budget options
PoE models come with 10 ports of PoE++ (IEEE 802.3bt) offering up to 60 W per port and 16-40 ports of PoE+ (IEEE 802.3at) delivering up to 30 W per port to meet a variety of applications, including the latest generation of Wireless Access Points.

Within the range, the 3 PoE models of 30HP, 54HP and 54FP can offer larger Power budgets of 400 W, 600 W and 960 W respectively, allowing flexibility in powering a full range of PoE devices efficiently for applications like VoIP, surveillance, high density networked AV applications and Zyxel’s compressive WiFi 6/6E AP portfolio.

Nebula, Manage It Your Way!
The support of NebulaFlex Pro allows you to easily switch management modes between standalone management and intuitive Nebula cloud managed mode with 1 YEAR Pro Pack bundled. Nebula provides both intuitive web interface and mobile App to deliver a streamlined experience for installation and management of your network, without additional cost for a software or hardware controller.

ON ORDER

SKU: XGS2220-54FP-EU0101F

Manufacturer: Zyxel Zyxel

RRP Price €1,896.68

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
ARP inspection
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
48
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
10G Ethernet (copper) ports quantity
2
Installed SFP+ modules quantity
4

Network

Networking standards
IEEE 802.3ab, IEEE 802.3bt, IEEE 802.1ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.1p, IEEE 802.1s, IEEE 802.3x, IEEE 802.3at, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.3az, IEEE 802.1x
10G support
Yes
Routing entries
64

Data transmission

Switching capacity
216 Gbit/s
Forwarding rate
161 Mpps
MAC address table
32000 entries
Jumbo frames support
Yes
Packet buffer memory
2 MB

Security

DHCP features
DHCP relay, DHCP server
IGMP snooping
Yes
IGMP proxy
Yes
Authentication type
IEEE 802.1x, RADIUS, TACACS+

Multicast features

Multicast Listener Discovery (MLD) snooping
MLD v1/v2

Protocols

GARP VLAN Registration Protocol (GVRP)
Yes

Design

Rack mounting
Yes

Performance

Internal memory
1024 MB
Flash memory
64 MB
Mean time between failures (MTBF)
298.735 h

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
1161.6 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
50
Total Power over Ethernet (PoE) budget
960 W

Operational conditions

Operating temperature (T-T)
-20 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 95%
Storage relative humidity (H-H)
10 - 90%
Heat dissipation
195.43 BTU/h

Weight & dimensions

Width
441 mm
Depth
330 mm
Height
44 mm
Weight
5 kg

Accessories

License
