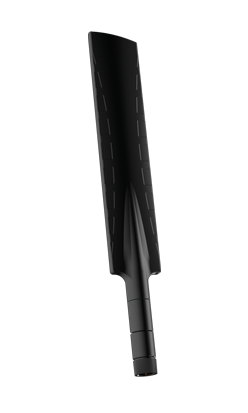

Poynting OMNI-85 network antenna Omni-directional antenna SMA 4 dBi

The OMNI-85 is Poynting’s third-generation “V3” version of its widely used router/equipment mount antenna. This wideband omni-directional antenna supports all contemporary 4G/LTE and future 5G frequency bands, ensuring seamless connectivity across various network technologies. Its compact and versatile design makes it ideal for global deployment.

Wideband Frequency Coverage: Operates from 617 to 3800 MHz, supporting 2G, 3G, 4G, and future 5G networks.
Peak Gain of 3.5 dBi: Provides stable and reliable signal performance across all frequency bands.
Omni-Directional Design: Ensures uniform coverage in all directions for enhanced connectivity.
Ground Plane Independent: Can be mounted directly onto equipment using an SMA female connector.
Flexible Deployment Options: Features a knuckle base that allows for multiple angle adjustments to suit various installation requirements.
Global Compatibility: Designed for use in all parts of the world, ensuring reliable connectivity across multiple network providers.
The OMNI-85 is a versatile and high-performance antenna solution, offering robust and future-proof connectivity for LTE and 5G applications.

Ideal Applications
Highly portable and ideal for on-the-go implementation
Improve poor data signal reception (indoor or outdoor)
Improve slow data transmission connection
Increase system transmission reliability
5G/LTE fringe areas (close to an 4G/LTE area, but out of reach)
Network operator flexibility – as the antenna is wideband, a new antenna is not needed per network operator

ON ORDER

SKU: A-OMNI-0085-V3-01

Manufacturer: Poynting Poynting

RRP Price €15.52

Specifications

Performance

Frequency band
0.617 - 3.8 GHz
Impedance
50 Ω
Antenna gain level (max)
4 dBi
Wi-Fi standards
802.11g
Wi-fi frequency range
2.4 - 2.5 GHz

Features

Antenna type
Omni-directional antenna
Antenna connector type
SMA
Voltage Standing Wave Ratio (VSWR)
2.5:1
Product colour
Black
Housing material
Acrylonitrile butadiene styrene (ABS)
Protection features
Impact resistant, Water resistant
International Protection (IP) code
IP65
Waterproof
Yes
Power handling
10 W
Purpose
Indoor

Certificates

Doesn't contain
Halogen
Certification
MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
0 - 98%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Depth
31 mm
Height
209 mm
Diameter
1.3 cm
Weight
42 g

Packaging data

Package width
16 mm
Package depth
45 mm
Package height
250 mm
Package weight
44 g

Mobile network

4G standard
LTE

Packaging content

Quantity per pack
1 pc(s)

Accessories

License
