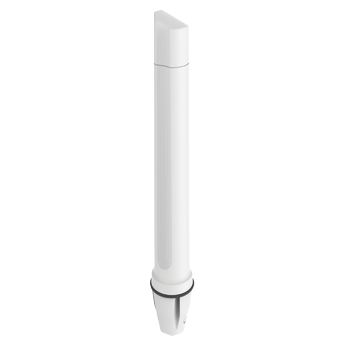

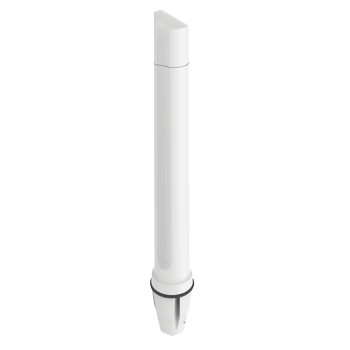

Poynting OMNI-291 network antenna Omni-directional antenna N-type 7 dBi

Name: Poynting OMNI-291 network antenna Omni-directional antenna N-type 7 dBi
Brand: Poynting
SKU: A-OMNI-0291-V2
Price: 216.41 EUR
Availability: OutOfStock

The OMNI-291 is a high-performance marine antenna. This antenna uses a standard 1-inch (14 TPI) marine mount for simplified installation to most marine attachments. The ultra-wide frequency band covers all contemporary LTE operating frequencies with excellent balanced gain across all frequencies, including the LTE & CDMA 450 MHz bands which are common requirements for marine applications. Higher frequencies are not compromised, and the antenna design allows Poynting to have superior pattern control over the entire frequency range making the OMNI-291 a true high performance omni-directional antenna. The OMNI-291 guarantees signal reception almost everywhere along the coast, allowing it to be usable in all parts of the world. Poynting Antennas achieves this through new antenna configuration using multiple dipoles and a uniquely (patented) feed network. The antenna is future proof as it covers the 450 MHz LTE frequency getting more and more popular in various regions and countries!

ON ORDER

SKU: A-OMNI-0291-V2

Manufacturer: Poynting

RRP Price €216.41

Specifications

Performance

Frequency band

0.45 - 2.7 GHz

Antenna gain level (max)

7 dBi

Features

Antenna type

Omni-directional antenna

Antenna connector type

N-type

Connector gender

Female

Polarization

Vertical polarization

Voltage Standing Wave Ratio (VSWR)

2.5:1

Product colour

White

Protection features

Saltwater resistant, Dust resistant, Fireproof, UV resistant, Water resistant

International Protection (IP) code

IP68

Ultraviolet (UV) resistant

Yes

Survival wind speed

186 km/h

Power handling

10 W

Mounting

Wall/Pole

Purpose

Outdoor

Certificates

Sustainability compliance

Yes

Compliance certificates

CE, RoHS

Certification

MIL-STD 810G/ASTM B117

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

75 mm

Depth

75 mm

Height

560 mm

Weight

576 g

Packaging data

Package width

580 mm

Package depth

95 mm

Package height

95 mm

Package weight

1.25 kg

Packaging content

Quantity per pack

1 pc(s)

Logistics data

Country of origin

China

Description

Manufacturer

Poynting

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.576 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
