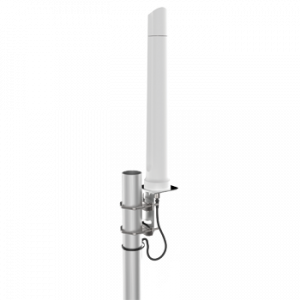

Poynting A-OMNI-0296-V2-01 network antenna Omni-directional antenna 10 dBi

The OMNI-296 is a high-performance dual-band Wi-Fi omni-directional antenna, developed by Poynting Antennas. Designed for seamless connectivity with both older and modern dual-band Wi-Fi technologies, this antenna helps resolve channel saturation and enhance network performance. Its robust construction and broad frequency coverage make it ideal for high-density and RF-noisy environments.

Dual-Band Wi-Fi Coverage
Operates across 2.4 GHz, 3.3 – 4.2 GHz, and 5 – 7.2 GHz, ensuring maximum radio spectrum utilization.
High-Gain Performance
Provides 7 dBi gain in the 2.4 GHz band, 10 dBi gain in the 5 GHz band, and 8 dBi peak gain for the 3.5 GHz CBRS band.
Omni-Directional Design
Ensures 360° coverage, making it suitable for point-to-point links in cluttered RF environments.
CBRS & Future 5G Ready: Supports the 3.5 GHz CBRS band, preparing for next-generation 5G applications.
Durable Industrial Construction
Made from high-impact ABS plastic, resistant to acids and chemicals found in industrial environments.
Versatile Deployment: Ideal for commercial, industrial, and high-interference environments, ensuring stable Wi-Fi connectivity.
Easy Integration: Equipped with an N-Type female connector, allowing flexible cable connections for customized installations.
The OMNI-296 is a versatile and future-ready Wi-Fi antenna, providing high-gain omni-directional coverage for demanding industrial, commercial, and high-density network environments.

18 IN STOCK

SKU: A-OMNI-0296-V2-01

Manufacturer: Poynting Poynting

RRP Price €91.21

Specifications

Performance

Frequency band
2.4 - 7.4 GHz
Networking standards
IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
Antenna gain level (max)
10 dBi
Wi-Fi standards
802.11b, 802.11g, Wi-Fi 4 (802.11n)

Features

Antenna type
Omni-directional antenna
Protection features
Water resistant
International Protection (IP) code
IP65

Operational conditions

Operating temperature (T-T)
-40 - 80 °C

Accessories

License
