Tripp Lite B040-008-19 NetController 8-Port 1U Rack-Mount Console KVM Switch with 19-in. LCD

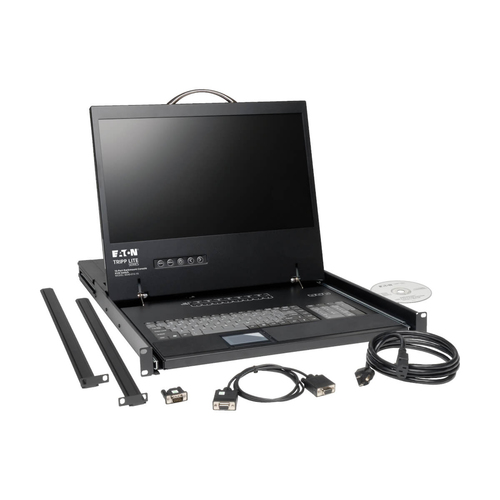

The B040-008-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it’s the cost-effective solution for controlling up to eight directly connected computers/servers.

The B040-008-19 has a built-in 19-inch LCD screen that supports video resolutions up to 1366 x 768. You can switch easily between the ports using on-console push buttons, an on-screen display (OSD) or keyboard hotkey commands. Password protection prohibits unauthorized users from accessing the connected computers.

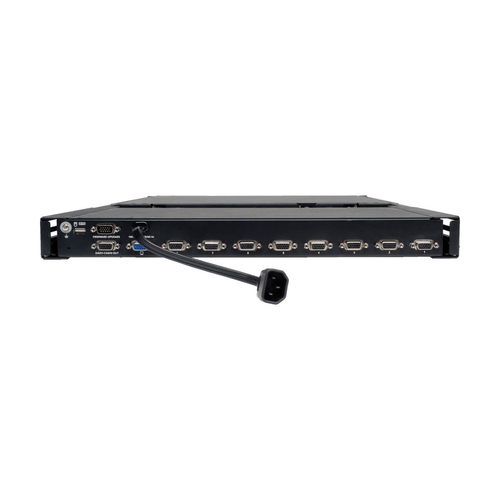

With this KVM switch, you can increase the number of connected computers up to 248 by daisy-chaining up to 15 B042-Series KVM switches. Uses P780-Series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a B051-000 IP Remote Access Unit to connect from anywhere in the world. When not in use, the B040-008-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

ON ORDER

SKU: B040-008-19

Manufacturer: Eaton Eaton

RRP Price €1,217.24

Specifications

Display

Display diagonal
48.3 cm (19")
Display resolution
1366 x 768 pixels
Display
LCD
On Screen Display (OSD)
Yes

Technical details

Form factor
1U
Built-in KVM switch
Yes
KVM switch ports quantity
8
Operating temperature (T-T)
32 - 104 °F
Relative humidity
20 - 90%
Compliance certificates
RoHS
Country of origin
Taiwan

Ports & interfaces

I/O ports
8 x HD15F USB

Certificates

Certification
UL 60950-1 (USA), CAN/CSA (Canada), FCC Part 15 Class A, CE, IEC 60950-1, TUV (UL), CTUV, CE, FCC, NOM

Power

Power consumption (typical)
30 W
Power consumption (standby)
5 W

Weight & dimensions

Width
449.3 mm
Height
43.4 mm
Depth
722.4 mm
Weight
14.4 kg

Packaging data

Package weight
18.2 kg
Package width
594.4 mm
Package depth
830.1 mm
Package height
154.9 mm

Logistics data

Products per master (outer) case
1 pc(s)

Accessories

License
