Tripp Lite B030-DP16-17DIP NetDirector 16-Port DisplayPort KVM Switch Console with 17 in. LCD, IP Remote Access, Dual Rail, 1U Rack-Mount

Tripp Lite B030-DP16-17DIP NetDirector 16-Port DisplayPort KVM Switch Console with 17 in. LCD, IP Remote Access, Dual Rail, 1U Rack-Mount

Name: Tripp Lite B030-DP16-17DIP NetDirector 16-Port DisplayPort KVM Switch Console with 17 in. LCD, IP Remote Access, Dual Rail, 1U Rack-Mount
Brand: Eaton
SKU: B030-DP16-17DIP
Price: 3527.15 EUR
Availability: OutOfStock

Connects 16 DisplayPort Computers or Servers to a Single Monitor, Keyboard and Mouse

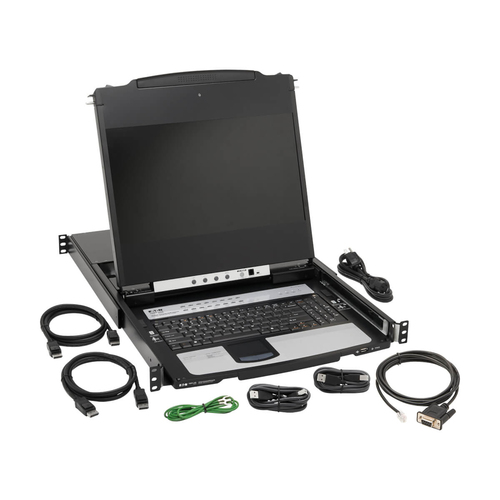

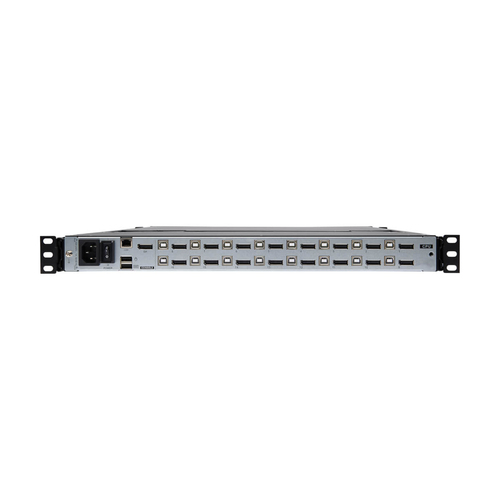

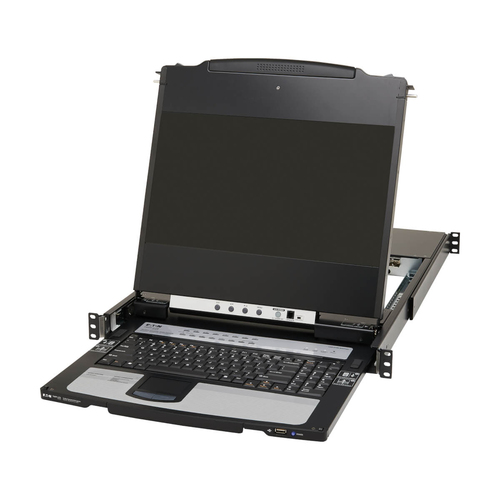

This NetDirector® DisplayPort KVM switch combines a rack-mountable keyboard, 17-inch LCD, touchpad, built-in IP remote access and 16 DisplayPort inputs into a compact housing that occupies only 1U of rack space. Control, boot and reboot up to 16 DisplayPort computers or servers at the same time remotely 24/7. No adapters are needed for connecting DisplayPort-enabled equipment.

Offers Both Local and Remote Control Options
From across the room, down the street or halfway around the globe, you can access and control up to 16 connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-DP16-17DIP lets you handle complex problems without needing to be on-site, which saves money and time. It supports IPv4, IPv6, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method). AP Windows- and Java non-browser client applications allow the KVM switch to be remotely accessed via the network without a browser.

Saves Valuable Space and Keeps Your Operating Costs Low
All connected DisplayPort computers or servers share a single monitor, keyboard and mouse, which saves space in your rack or workspace. DDC emulation allows each computer’s settings to adjust automatically for optimal screen output. Eliminating the cost of buying monitors, adapters, keyboards and mice for all 16 connected devices keeps your TCO (total cost of ownership) low.

17 in. LCD Supports Crystal-Clear 1080p Video

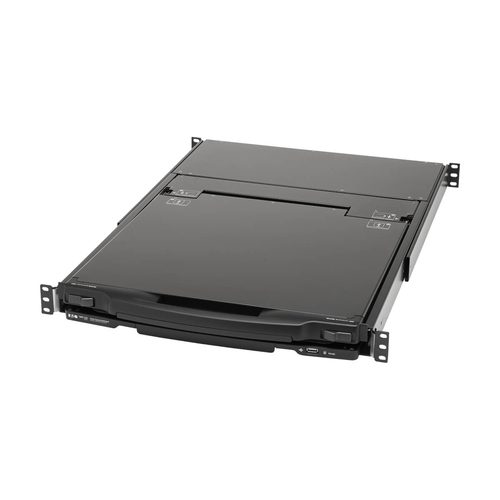

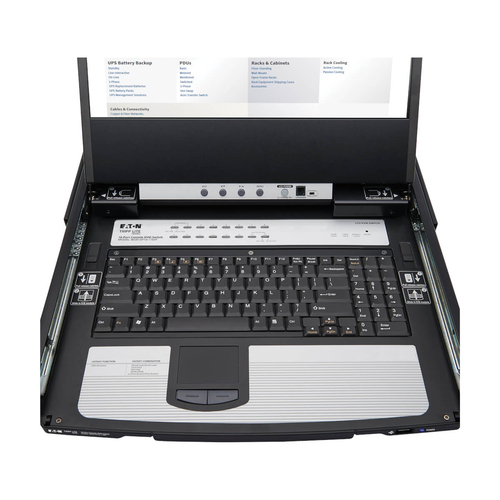

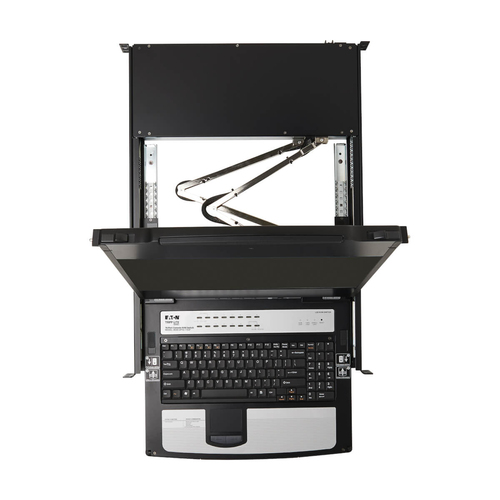

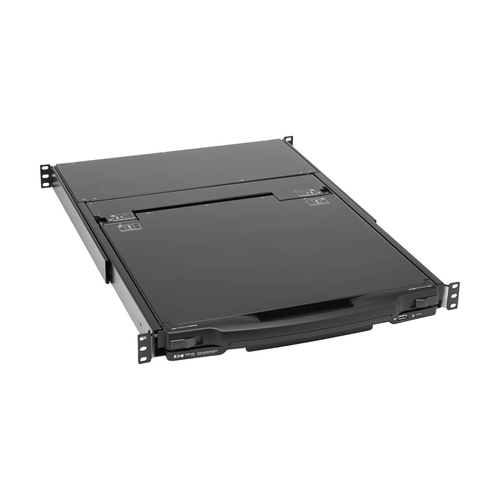

The dual-rail B030-DP16-17DIP supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. The wide display flips up to provide access to connected computers, making multitasking easier and more convenient, and folds down to prevent the console from blocking adjacent rack equipment when not in use. The LCD and the keyboard/touchpad are on separate rails, so the LCD can remain open while the keyboard/touchpad is stored out of the way, keeping the rack aisle clear.

Switching Between Computers Is Fast and Easy
Use the on-console push buttons, keyboard hotkey commands or multi-lingual local console On-Screen Display (OSD) to quickly toggle between connected computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Computers or servers can be quickly added or removed without having to power down the KVM switch. Also features a USB 1.1 hub port on the front of the console for the connection of a USB peripheral device such as a flash drive or external mouse.

Multi-Level Password Security Keeps Your Private Data Private
The B030-DP16-17DIP offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Up to 64 users can be authorized and 32 remote users logged on concurrently. Remote authentication support is provided via RADIUS, LDAP, LDAPS and MS Active Directory. The B030-DP16-17DIP also incorporates advanced encryption technologies: 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, 128-bit SSL and 1024-bit RSA.

Long-Lasting Reliability and Compatibility

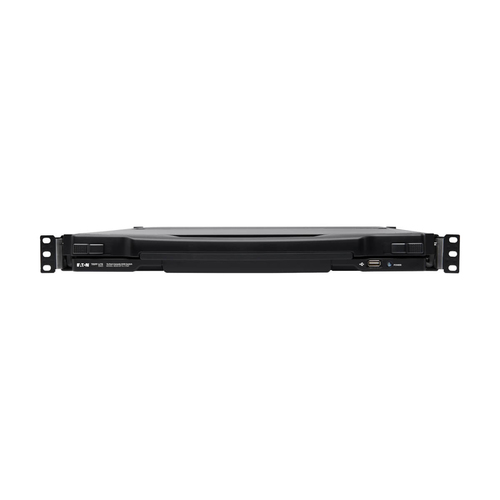

This DisplayPort KVM switch mounts easily into 1U of space in an EIA-standard 19-inch rack with the included brackets (optional B019-000 – sold separately – allows mounting in a 2-post rack). The B030-DP16-17DIP is compatible with all major operating systems, including Windows and macOS, for simple integration into your existing structure. Mac/Sun keyboard emulation also is supported. The RJ11 port allows you to upgrade the KVM switch’s firmware using the included cable.

TAA-Compliant for GSA Schedule Purchases
The B030-DP16-17DIP is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: B030-DP16-17DIP

Manufacturer: Eaton Eaton

RRP Price €3,527.15

Specifications

Ports & interfaces

Number of computers controlled

Keyboard port type

USB

Mouse port type

USB

Video port type

DisplayPort

DisplayPorts quantity

DisplayPort version

1.1

USB 2.0 Type-B ports quantity

Console ports

DisplayPort, USB A

USB hub

Yes

USB 2.0 Type-A hub ports quantity

Network

Ethernet LAN

Yes

Ethernet LAN (RJ-45) ports

Performance

HD type

Full HD

Maximum resolution

1920 x 1080 pixels

Auto scan delay (min)

1 s

Auto scan delay (max)

255 s

HDCP

Yes

Design

Rack mounting

Yes

Rack capacity

Product colour

Black

Housing material

Metal

LED indicators

Yes

Push button

Yes

Hot keys

Yes

Display

Built-in display

Yes

Display

LCD

Display diagonal

43.2 cm (17")

On Screen Display (OSD)

Yes

Power

Power source

Input voltage

100 - 240 V

AC input frequency

50 - 60 Hz

Input current

1 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-20 - 60 °C

Operating relative humidity (H-H)

0 - 80%

Weight & dimensions

Weight

14.7 kg

Packaging data

Package width

670.1 mm

Package depth

140 mm

Package height

830.1 mm

Package weight

20 kg

Package type

Box

Packaging content

Cables included

AC, DisplayPort, Phone (RJ-11), USB Type-A to USB Type-B

Quick installation guide

Yes

Logistics data

Harmonized System (HS) code

8471.80.1000

Master (outer) case width

670.1 mm

Master (outer) case length

140 mm

Master (outer) case height

830.1 mm

Master (outer) case gross weight

20 kg

Products per master (outer) case

1 pc(s)

Country of origin

Taiwan

Description

Manufacturer

Eaton

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

14.65 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

Digitus KVM cable USB for KVM consoles Other

DIGITUS original accessoryOctopus cable set for DIGITUS consoles with integrated KVM, for USB / VGA servers

€7.53

X465-48W-B1 Other

€12,238.63

318-046-114 Other

€126.98

Intermec 805-836-001 holder Passive holder Handheld mobile computer Black, Blue Other

Attaches to mobile computer with screw in handle. Does not interfere with Vehicle Dock or Holder use. Not compatible with Magnetic Stripe Reader.

€146.01

Extreme networks ExtremeWorks 1 year(s) Other

Expert knowledge at your fingertipsGain the permanent networking expertise you need when things go wrong and take advantage of an engineering knowledge pool with extensive industry tenure.Unburden your staffRelieve your IT team from the demands of unfamiliar crisis scenarios and redirect their efforts to the projects that best align with their talents and existing skill set.Support when you need itCount on an expert support team. No matter who you talk with, they’re wearing an Extreme Networks badge.Whiteglove serviceRely on consistent first person resolution. If you call ExtremeWorks with a problem, we won’t transfer you from tier-to-tier. Your dedicated engineer will close your case.

€30.23

Poly Edge E400 IP Phone and PoE-enabled Other

Designed for the new way you workThis desk phone makes hybrid work easy. Built for hot-desking or the home office, these phones offer the perfect user experience. Two displays and 14-line keys give you more ways to connect, plus quality audio, in a seriously sharp package.

€88.81

POLY EagleEye III/IV/IV/USB Digital Breakout Adapter Power Supply without Power Cord Other

€128.46

Poly G7500 Video Conferencing System Other

Customize rooms with confidenceOutfit conference rooms to meet your organization’s unique needs. The Poly G7500 video conferencing system offers quality audio and video, plus it’s flexible and customizable for any room space.

€3,141.75

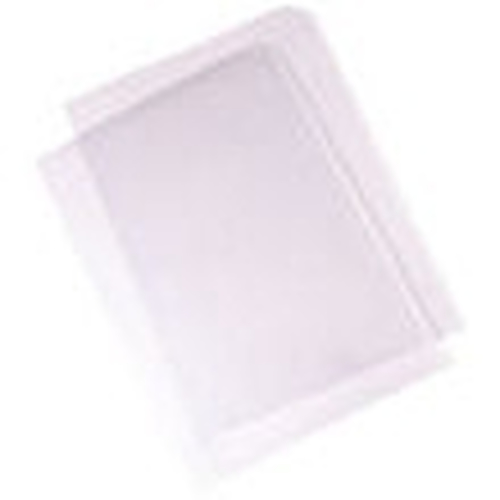

Intermec Screen Protector CN3/CN4 Other
