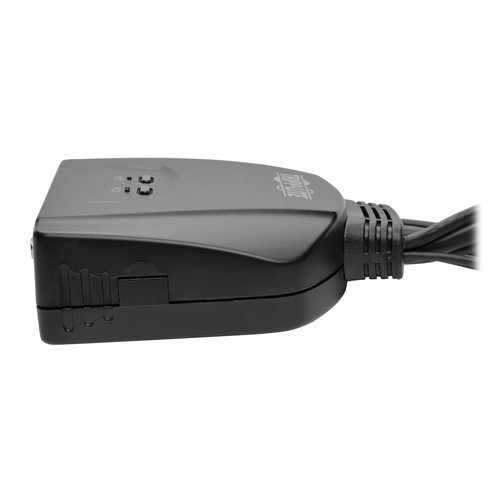

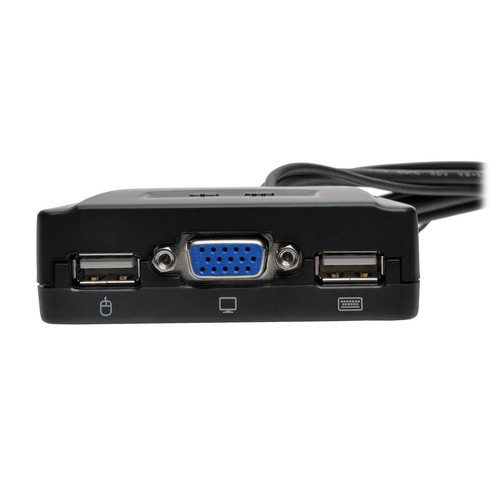

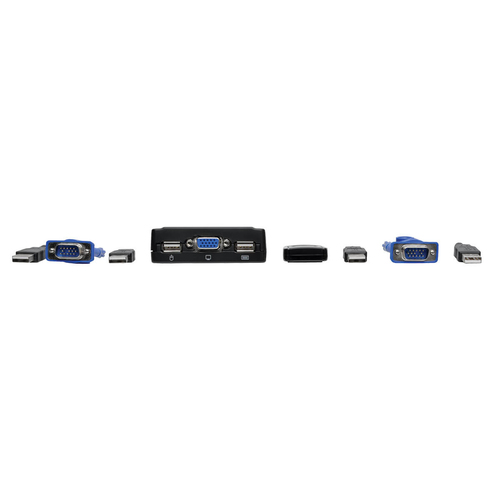

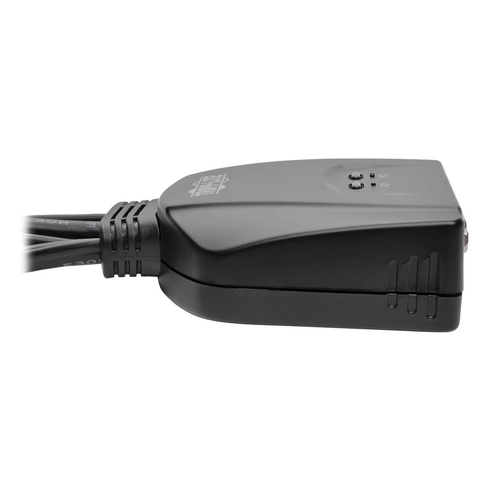

Tripp Lite B032-VU2 2-Port USB/VGA Cable KVM Switch with Cables and USB Peripheral Sharing

Access and Control 2 Computers with One Keyboard/Mouse/Monitor
Recommended for home, office and multimedia applications
Switch between computers using built-in remote port selector
Supports video resolutions up to 2048 x 1536

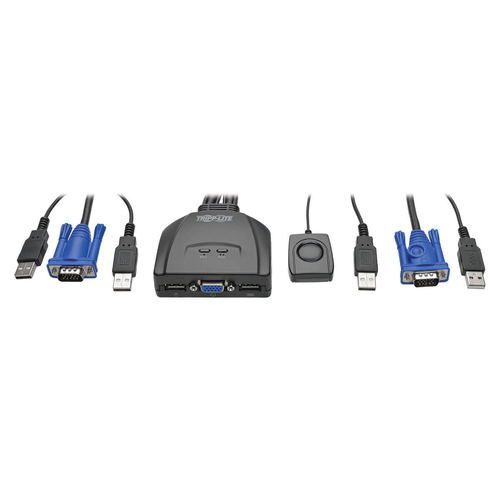

Built-in 3 ft. VGA and USB cables

Independent USB 1.1 Peripheral Sharing
Adding an optional USB hub (sold separately) to the USB console mouse port allows connection of peripherals, such as printers, hard drives, scanners, webcams and thumb drives

Easy Plug-and-Play Setup and Use
Compatible with Windows, Mac, Sun and Linux
No external power supply, software or drivers to install
Supports most mouse drivers and multifunction mice
Takes up no valuable desk space

ON ORDER

SKU: B032-VU2

Manufacturer: Eaton Eaton

RRP Price €32.02

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
VGA (D-Sub) ports quantity
2
USB 2.0 ports quantity
2
USB connector type
USB Type-A
Audio connections
Yes

Performance

Maximum resolution
2048 x 1536 pixels
Plug and Play
Yes
Number of users
1 user(s)

Design

Product colour
Black
Cable length
0.91 m
Maximum cable length
0.91 m
Certification
CE, FCC, REACH

Display

Built-in display
No

Sustainability

Compliance certificates
RoHS

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
25.9 mm
Depth
66 mm
Height
79 mm
Weight
300 g

Packaging data

Package width
167.6 mm
Package depth
241.3 mm
Package height
61 mm
Package weight
410 g

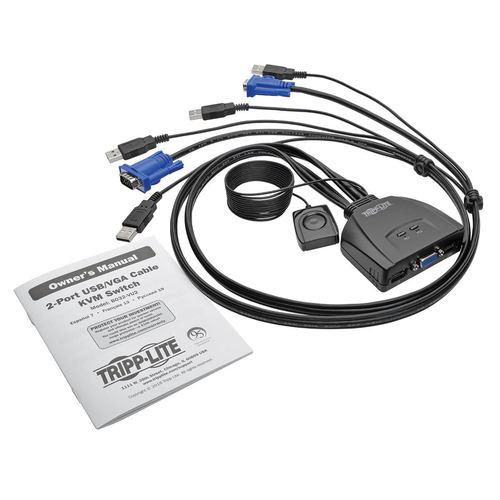

Packaging content

Cables included
Audio (3.5mm), USB, VGA
Manual
Yes

Logistics data

Harmonized System (HS) code
8471.80.1000
Master (outer) case width
330.2 mm
Master (outer) case length
487.7 mm
Master (outer) case height
188 mm
Master (outer) case gross weight
5.28 kg
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332200386
Country of origin
China

Accessories
