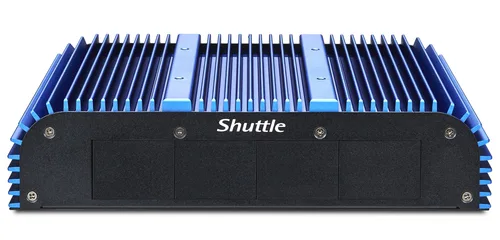

Shuttle BPCAL02-i3 industrial Box-PC, Core i3-1215U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation

Shuttle BPCAL02-i3 industrial Box-PC, Core i3-1215U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation

Name: Shuttle BPCAL02-i3 industrial Box-PC, Core i3-1215U , 2x SO-DIMM, 2x LAN, 1x COM, 1xHDMI,4x USB, fanless, 24/7 permanent operation
Brand: Shuttle
SKU: BPCAL02-I3
Price: 761.25 EUR
Availability: OutOfStock

Fanless Box-PC with Intel Core processor in a robust chassis
Shuttle's BPCAL02 fanless Box-PC Series is fueled by Intels 12th Generation (Alder Lake) Core processors in a ruggedized box design for high durability. It comes with modular I/O expansion capabilities and various mounting options. With advanced technology and highly flexible design, this industrial PC offers a reliable solution for a wide range of customized requirements in industrial environments.

ON ORDER

SKU: BPCAL02-I3

Manufacturer: Shuttle Shuttle

RRP Price €761.25

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i3

Processor generation

12th gen Intel® Core™ i3

Processor model

i3-1215U

Processor cores

Processor threads

Processor boost frequency

4.4 GHz

Performance cores

Efficient cores

Performance-core Max Turbo Frequency

4.4 GHz

Efficient-core Max Turbo Frequency

3.3 GHz

Built-in processor

Yes

Processor cache

10 MB

Thermal Design Power (TDP)

15 W

ECC supported by processor

Memory

Memory slots type

SO-DIMM

Number of memory slots

Maximum internal memory

64 GB

Supported memory clock speeds

4800 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Memory voltage

1.1 V

Storage

Supported storage drive types

SSD

Storage drive sizes supported

M.2

SSD form factor

M.2

Storage drive interface

PCI Express, Serial ATA III

NVMe

Yes

Number of storage drives supported

Graphics

On-board graphics card

Yes

Graphics card family

Intel

On-board graphics card model

Intel® UHD Graphics

Maximum resolution

3840 x 2160 pixels

Audio

Built-in speaker(s)

Network

Ethernet LAN

Yes

Wi-Fi

LAN controller

Intel I226-V

Ports & interfaces

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

HDMI ports quantity

HDMI version

2.0b

Microphone in

Yes

Headphone outputs

Ethernet LAN (RJ-45) ports

Serial ports quantity

DC-in jack

Yes

Expansion slots

Number of M.2 (M) slots

Design

Chassis type

2.6L sized PC

Product colour

Black, Blue

Cooling type

Passive

Housing material

Aluminium, Steel

VESA mounting

Yes

Panel mounting interface

75 x 75 mm

Product type

Mini PC barebone

Performance

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Yes

Trusted Platform Module (TPM) version

2.0

Audio chip

Realtek ALC888S

Technical details

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Logistics data

Harmonized System (HS) code

84733080

Sustainability

Sustainability certificates

Certified Enviro Cranberries (CEC), ErP

Power

Power supply type

External AC adapter

Power supply

90 W

Number of power supply units

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

4.74 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

20 - 80%

Weight & dimensions

Width

245 mm

Depth

169 mm

Height

57 mm

Weight

2.85 kg

Packaging content

AC adapter included

Yes

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.85 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
