Shuttle Box-PC BPCWL02-I3XA PC/workstation Intel® Core™ i3 i3-8145UE 4 GB DDR4-SDRAM 120 GB SSD Windows 10 IoT Enterprise Mini PC Black, Blue

Box-PC BPCWL02-i5
Fanless Shuttle Box-PC with Intel Core ULV processor in a robust chassis

Shuttle's new generation BPCWL02/03 IPC Series in a ruggedized box design for high durability consists of compact fanless IPC systems with modular expansion for wide-range industrial applications. The model BPCWL03 supports an extended operating temperature range of -20 to +60 °C. The Shuttle Box-PC series is offered as a complete system: either as a fixed configuration or as an customized BTO system.

UP TO 64 GB OF RAM
Modern professional applications consume a particularly large amount of memory. With two slots and therefore 64 GB of RAM in total, this Mini-PC can handle any demanding task.

ADD-ONS VIA M.2 MODULE
Two M.2 slots make it possible to add data mediums and additional modules, for example for WLAN or wireless. Thanks to the PCI Express connection, large quantities of data can be transported in a short time via the M.2 slot.

TWO NETWORK CONNECTIONS
This feature is particularly interesting for vital network applications – this is because two Gigabit Ethernet connectors allow physically separate networks, offer failover and load balancing.

ROBUST CONSTRUCTION WITH LARGE COOLING SURFACE
The appearance of the Box PCs speaks for itself. Large cooling fins guarantee optimum cooling effect and thanks to energy-efficient ULV technology, active ventilation can be dispensed with.

MODULAR DESIGN ALLOWS COST-EFFECTIVE BTO ASSEMBLY
This series has four slots for I/O ports and extensions, such as COM, HDMI, VGA, DVI, USB, DisplayPort, 4G, WLAN and LAN. During the production of a BTO system, the slots are filled according to customer requirements.

SERIAL PORT
The classic among the interfaces. COM ports are still needed for professional applications, for example in cash register systems and in products from the fields of science and industry.

ON ORDER

SKU: BPCWL02-I3XA

Manufacturer: Shuttle Shuttle

RRP Price €1,070.83

Specifications

Processor

Processor manufacturer
Intel
Processor family
Intel® Core™ i3
Processor generation
8th gen Intel® Core™ i3
Processor model
i3-8145UE
Processor cores
2
Processor threads
4
Processor boost frequency
3.9 GHz
Processor frequency
2.2 GHz
Processor cache
4 MB
Processor cache type
Smart Cache
Number of processors installed
1
Processor base power
15 W
Maximum turbo power
25 W

Memory

Internal memory
4 GB
Maximum internal memory
64 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
1 x 4 GB

Storage

Total storage capacity
120 GB
Storage media
SSD
Optical drive type
No
Number of storage drives installed
1
Total SSDs capacity
120 GB
Number of SSDs installed
1
SSD capacity
120 GB
SSD interface
PCI Express
NVMe
Yes
SSD form factor
M.2

Graphics

Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics 620

Network

Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
LAN controller
Intel® I211, Intel® I219-LM

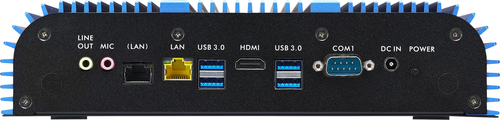

Ports & interfaces

USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
VGA (D-Sub) ports quantity
1
HDMI ports quantity
1
HDMI version
1.4
Ethernet LAN (RJ-45) ports
2
Microphone in
Yes
Line-in
Yes
DC-in jack
Yes
RS‐232/422 port
Yes
Number of rear USB ports
4
Number of front USB ports
4

Design

Chassis type
Mini PC
Placement supported
Horizontal/Vertical
VESA mounting
Yes
Product colour
Black, Blue
Housing material
Aluminium, Steel

Performance

Market positioning
Business
Audio chip
Realtek ALC662
BIOS type
AMI
Trusted Platform Module (TPM)
Yes
Product type
Mini PC
Trusted Platform Module (TPM) version
2.0

Software

Operating system architecture
64-bit
Operating system installed
Windows 10 IoT Enterprise

Power

Power supply
90 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50/60 Hz

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 90%

Weight & dimensions

Width
245 mm
Depth
169 mm
Height
57 mm
Weight
2.85 kg

Display

Display included
No

Accessories
