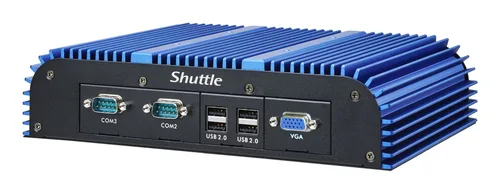

Shuttle BPCAL02-i3XA industrial Box-PC, Core i3-1215U , 8GB RAM, 128GB M.2 SSD, 2x LAN, 3x COM, 1xHDMI,1xVGA, 8x USB, DC input 9-36V, fanless, 24/7 permanent operation

Shuttle BPCAL02-i3XA industrial Box-PC, Core i3-1215U , 8GB RAM, 128GB M.2 SSD, 2x LAN, 3x COM, 1xHDMI,1xVGA, 8x USB, DC input 9-36V, fanless, 24/7 permanent operation

Name: Shuttle BPCAL02-i3XA industrial Box-PC, Core i3-1215U , 8GB RAM, 128GB M.2 SSD, 2x LAN, 3x COM, 1xHDMI,1xVGA, 8x USB, DC input 9-36V, fanless, 24/7 pe...
Brand: Shuttle
SKU: BPCAL02-I3XA
Price: 1086.05 EUR
Availability: OutOfStock

Shuttle BPCAL02-i3XA is a fully-configured fanless Box-PC with Intel Core-i3 processor of the 12th Generation (Alder Lake) in a ruggedized box design for high durability. This fixed configuration comes with a selection of pre-installed I/O extensions for a wide range of industrial applications.

ON ORDER

SKU: BPCAL02-I3XA

Manufacturer: Shuttle Shuttle

RRP Price €1,086.05

Specifications

Processor

Processor manufacturer

Intel

Processor family

Intel® Core™ i3

Processor generation

12th gen Intel® Core™ i3

Processor model

i3-1215U

Processor cores

Processor threads

Processor boost frequency

4.4 GHz

Performance cores

Efficient cores

Performance-core Max Turbo Frequency

4.4 GHz

Efficient-core Max Turbo Frequency

3.3 GHz

Processor cache

10 MB

Processor cache type

Smart Cache

Number of processors installed

Processor base power

15 W

Maximum turbo power

55 W

Memory

Internal memory

8 GB

Maximum internal memory

64 GB

Internal memory type

DDR5-SDRAM

Memory slots

2x SO-DIMM

Memory clock speed

4800 MHz

Storage

Total storage capacity

128 GB

Storage media

SSD

Optical drive type

Total SSDs capacity

128 GB

Number of SSDs installed

SSD capacity

128 GB

SSD interface

PCI Express

NVMe

Yes

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

Graphics

Discrete graphics card

On-board graphics card

Yes

Discrete graphics card model

Not available

On-board GPU manufacturer

Intel

On-board graphics card family

Intel® UHD Graphics

On-board graphics card model

Intel® UHD Graphics

Network

Ethernet LAN

Yes

Ethernet LAN data rates

2500 Mbit/s

LAN controller

Intel I226-V

Wi-Fi

Ports & interfaces

USB 2.0 ports quantity

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

VGA (D-Sub) ports quantity

HDMI ports quantity

HDMI version

2.0b

Ethernet LAN (RJ-45) ports

Microphone in

Yes

Headphone outputs

DC-in jack

Yes

Serial ports quantity

Design

Chassis type

USFF

Volume

2.7 L

VESA mounting

Yes

Product colour

Black, Blue

Housing material

Aluminium, Steel

Performance

Market positioning

Industry

Audio chip

RealTek ALC888S

Password protection

Yes

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Yes

Product type

Mini PC

Trusted Platform Module (TPM) version

2.0

Software

Operating system installed

Compatible operating systems

Windows 10/11 (64-bit), Linux (64-bit)

Power

Power supply

90 W

Power supply input voltage

100 - 240 V

Power supply input frequency

50/60 Hz

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

0 - 90%

Certificates

Compliance certificates

BSMI, CB, CE, Federal Communications Commission (FCC), RCM, RoHS, VCCI, cTUVus

Sustainability

Sustainability certificates

ErP

Weight & dimensions

Width

245 mm

Depth

169 mm

Height

57 mm

Weight

2.85 kg

Logistics data

Harmonized System (HS) code

84714900

Display

Display included

Description

Manufacturer

Shuttle

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

2.85 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
