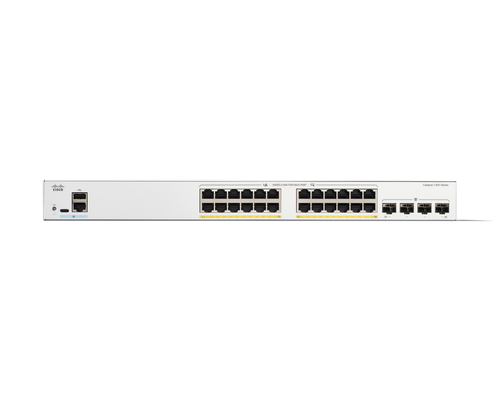

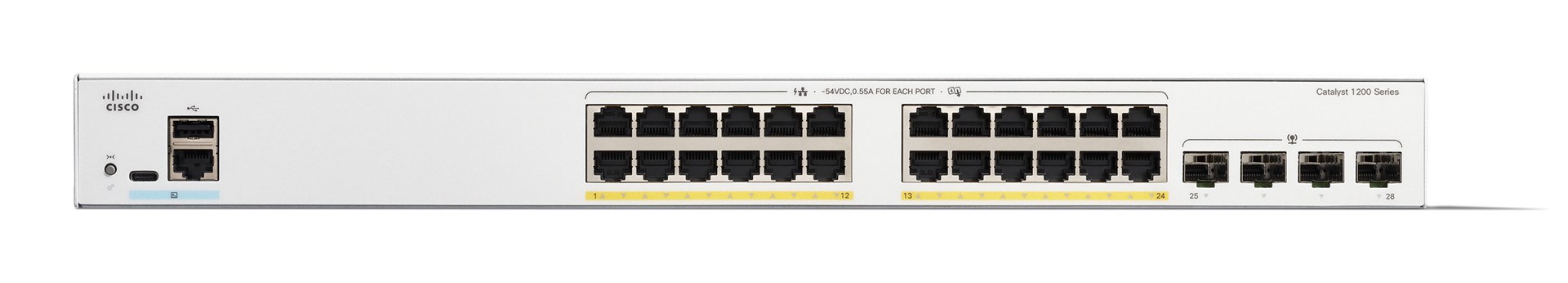

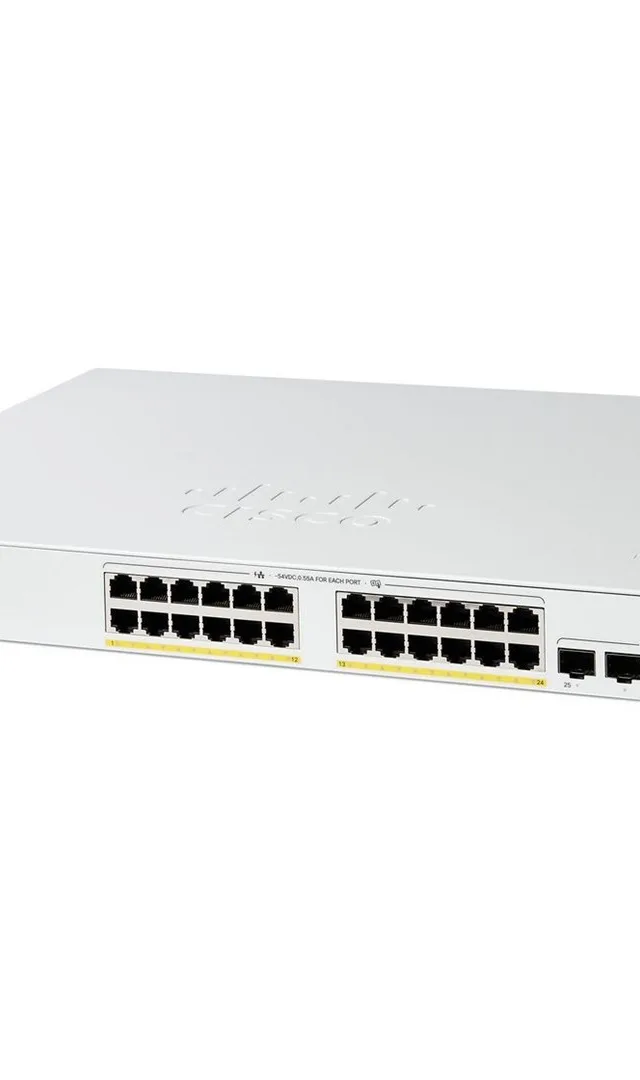

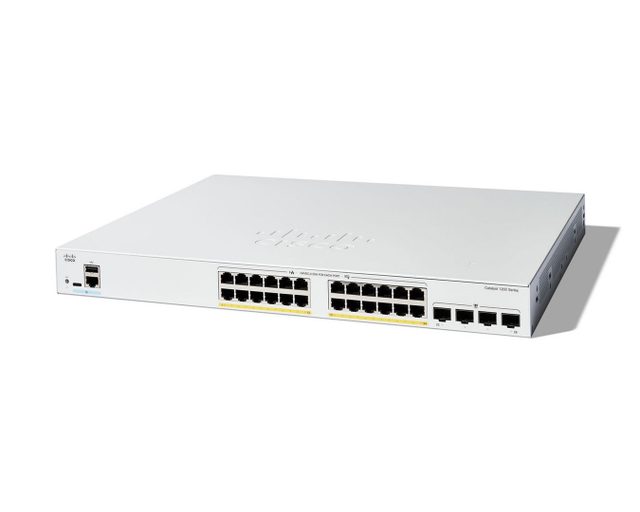

Catalyst 1200 24-port GE, Full PoE, 4x1G SFP

Name: Catalyst 1200 24-port GE, Full PoE, 4x1G SFP
Brand: Cisco
SKU: C1200-24FP-4G
Price: 766.86 EUR
Availability: InStock

The Cisco Catalyst 1200-24FP-4G switch is the next generation of affordable, smart switches that combine powerful network performance, security and reliability with a comprehensive suite of network features you need for a solid small business network.

37 IN STOCK

SKU: C1200-24FP-4G

Manufacturer: Cisco Cisco

RRP Price €766.86

Specifications

Management features

Switch type

Managed

Switch layer

L2/L3

Quality of Service (QoS) support

Yes

Web-based management

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Network

Networking standards

IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z

10G support

Port mirroring

Yes

Flow control support

Yes

Broadcast storm control

Yes

Spanning tree protocol

Yes

Head-of-line (HOL) blocking

Yes

Ethernet LAN data rates

1000 Mbit/s

VLAN support

Yes

Data transmission

Static route

Yes

Jumbo frames support

Yes

Jumbo frames

9000

Security

Access Control List (ACL)

Yes

IGMP snooping

Yes

Security algorithms

HTTPS, SSH, SSL/TLS

MAC address filtering

Yes

SSH/SSL support

Yes

Multicast features

Multicast support

Yes

Design

Product colour

White

Housing material

Metal

Reset button

Yes

LED indicators

Yes

Performance

Processor frequency

1400 MHz

Internal memory

1024 MB

Flash memory

512 MB

Power

Power source

Power supply included

Yes

Power plug type

Type C

Other features

Packaging content

Switch, power cable, USB Type C cable and mounting hardware

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-25 - 70 °C

Operating relative humidity (H-H)

10 - 90%

Storage relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

350 mm

Depth

444.5 mm

Height

43.9 mm

Packaging data

Package width

512.1 mm

Package depth

575.1 mm

Package height

108 mm

Package weight

7.12 kg

Logistics data

Country of origin

China

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

WH3 (5–7 Days)

Weight

7.12018 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
