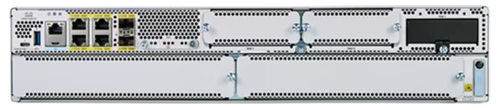

Cisco C8300-2N2S-4T2X wired router 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet Grey

Cisco Catalyst 8300 Series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco’s secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 Series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. The Catalyst 8300 Series Edge Platforms have a wide variety of interface options to choose from—ranging from lower and higher module density with backward compatibility to a variety of existing WAN, LAN, voice, and compute modules. Powered by Cisco IOS XE, fully programmable software architecture, and API support, these platforms can facilitate automation at scale to achieve zero-touch IT capability while migrating workloads to the cloud. Catalyst 8300 Series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats.

The Catalyst 8300 Series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.

ON ORDER

SKU: C8300-2N2S-4T2X

Manufacturer: Cisco Cisco

RRP Price €32,504.17

Specifications

WAN connection

Ethernet WAN
Yes
DSL WAN
Yes
SIM card slot
No
3G/4G USB modem compatibility
No
SFP WAN
Yes

Network

Networking standards
IEEE 802.1Q, IEEE 802.1ag, IEEE 802.3ah
Ethernet interface type
10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates
100,1000,10000 Mbit/s

Management features

Web-based management
Yes
Quality of Service (QoS) support
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
4
SFP+ module slots quantity
2
USB ports quantity
2
USB version
3.2 Gen 1 (3.1 Gen 1)

Protocols

Switching protocols
MPLS
Routing protocols
BGP, EIGRP, HSRP, IP, IS-IS, LISP, MPLS, OSPF, OSPFv3, RIP, RIP-2, VRRP
DHCP client
Yes
DHCP server
Yes
IPv4 & IPv6 features
IPv4/IPv6 access-control list (ACL)

Security

Security algorithms
3DES, MD5, DES, 128-bit AES, SHA-1, SHA-2, 256-bit AES, SHA-256, SHA-384, 256-bit AES-XTS, SHA-512, 2048-bit RSA
Firewall
Yes
Authentication method
AAA, RSA (2048 bit), ESP-256-CBC, HMAC-SHA1, ECDSA (256/384 bit)
URL filtering
Yes
Access Control List (ACL)
Yes
Network address translation (NAT)
Yes

Features

Processor manufacturer
Intel
Storage media
SSD
Internal storage capacity
16 GB
Flash memory
8192 MB
Internal memory
8192 MB
Internal memory type
DDR4
Maximum memory card size
32 GB
Mean time between failures (MTBF)
710300 h

Design

Product colour
Grey
Rack mounting
Yes
Rack capacity
2U
LED indicators
Yes

Power

Power source type
AC
AC input voltage
85 - 264 V

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
5 - 85%
Storage relative humidity (H-H)
5 - 95%
Operating altitude
0 - 3050 m

Weight & dimensions

Width
470.6 mm
Depth
438.1 mm
Height
88.9 mm

Accessories

License
