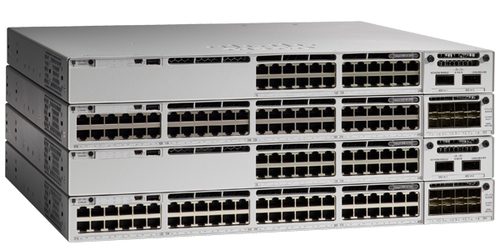

Cisco Catalyst 9300 Managed L3 Power over Ethernet (PoE) 1U

Name: Cisco Catalyst 9300 Managed L3 Power over Ethernet (PoE) 1U
Brand: Cisco
SKU: C9300X-48HXN-M
Price: 23303.65 EUR
Availability: OutOfStock

Built to reimage connection, reinforce security and redefine experience
Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.

The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

The Foundation of Software-Defined access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA) with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.

ON ORDER

SKU: C9300X-48HXN-M

Manufacturer: Cisco Cisco

RRP Price €23,303.65

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

ARP inspection

Yes

Configuring Location Settings (CLI)

Yes

MIB support

Network

Networking standards

IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Yes

Full duplex

Yes

VLAN support

Yes

Data transmission

Switching capacity

2000 Gbit/s

MAC address table

32000 entries

Static route

Yes

Jumbo frames support

Yes

Jumbo frames

9216

Security

Access Control List (ACL)

Yes

IGMP snooping

Yes

Multicast features

Multicast support

Yes

Design

Rack mounting

Yes

Stackable

Yes

Form factor

LED indicators

Yes

Performance

Internal memory

16384 MB

Flash memory

16384 MB

Mean time between failures (MTBF)

206480 h

Power

Power source

AC input voltage

100 - 230 V

AC input frequency

50/60 Hz

Power consumption (typical)

715 W

Power over Ethernet (PoE)

Yes

Operational conditions

Operating temperature (T-T)

-5 - 45 °C

Storage temperature (T-T)

-40 - 70 °C

Operating relative humidity (H-H)

5 - 90%

Weight & dimensions

Width

445 mm

Depth

483 mm

Height

44 mm

Weight

6.62 kg

Description

Manufacturer

Cisco

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

6.62 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
