Digitus 16 Port Gigabit Ethernet Network Switch, Industrial, Unmanaged

Robust and durable industrial solution for high temperature ranges and rough industrial environments - redundant power supply possible

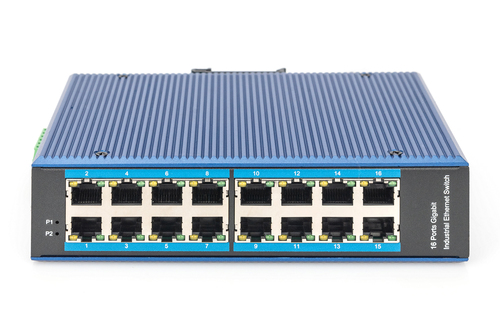

- 16 x RJ45 ports 10/100/1000 Mbps
- Suitable for high temperature ranges from -40 °C to +80 °C

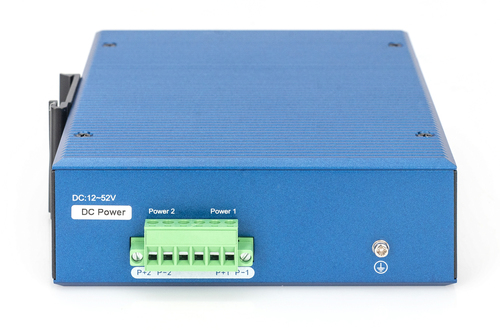

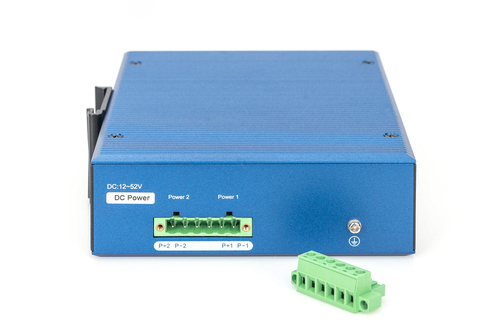

- Redundant power supply via terminal clamps

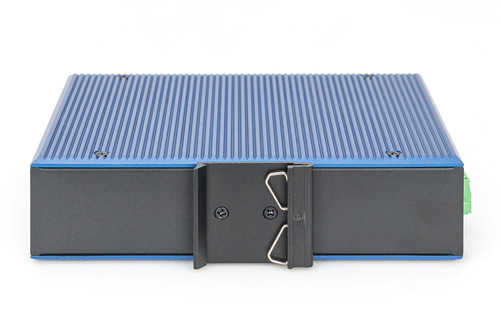

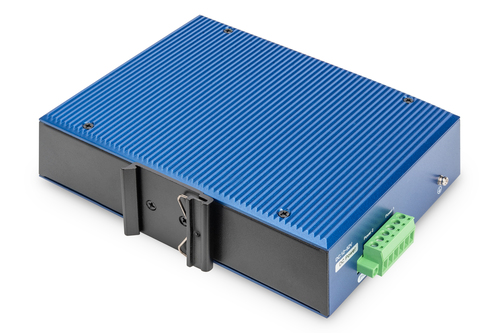

- Suitable for mounting on DIN rails (profile rail)
- Protects against impact and vibrations
- Integrated surge protection
- Full-duplex flow control IEEE802.3x
- Auto-Negotiation / Auto MDI/MDI-X Function
- Fanless design with protection type IP40

The DIGITUS® Industrial Gigabit Switch was designed for harsh environments in which it is exposed to moisture, temperature fluctuations and vibrations. With a temperature range from -40 °C to 80 °C, the Gigabit Switch with an IP40 housing can be used under the most adverse of conditions. Thanks to redundant power supply, it guarantees constant availability in highly sensitive sectors such as transport, production, transport and security surveillance. With its 16 Gigabit Ethernet ports, it is designed for a wide range of applications.

ON ORDER

SKU: DN-651129

Manufacturer: Digitus Digitus

RRP Price €266.31

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Power connector
DC-in jack

Network

Networking standards
IEEE 802.3, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Full duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
42 Mpps
MAC address table
8000 entries
Packet buffer memory
4.1 MB

Design

Rack mounting
No
Stackable
No
Product colour
Blue
Housing material
Aluminium
International Protection (IP) code
IP40
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Fanless
Yes
Mean time between failures (MTBF)
300000 h

Power

Power source
DC
Power supply included
No
Redundant power supply (RPS) support
Yes
DC input voltage
12 - 52 V
Power consumption (typical)
10 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Bandwidth
56 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
175.6 mm
Depth
135 mm
Height
45.5 mm
Weight
900 g

Packaging content

Manual
Yes

Packaging data

Package width
208 mm
Package depth
186 mm
Package height
72.5 mm
Package volume
2804.88 cm³
Package weight
1.08 kg

Logistics data

UK Trade Tariff code
85176200
Country of origin
China

Accessories

License
