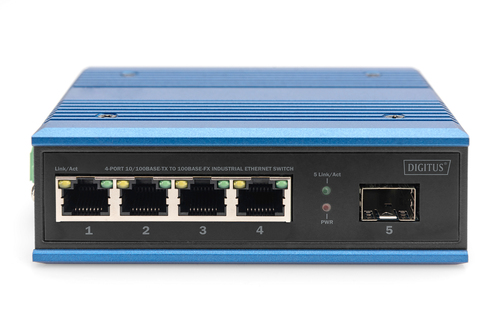

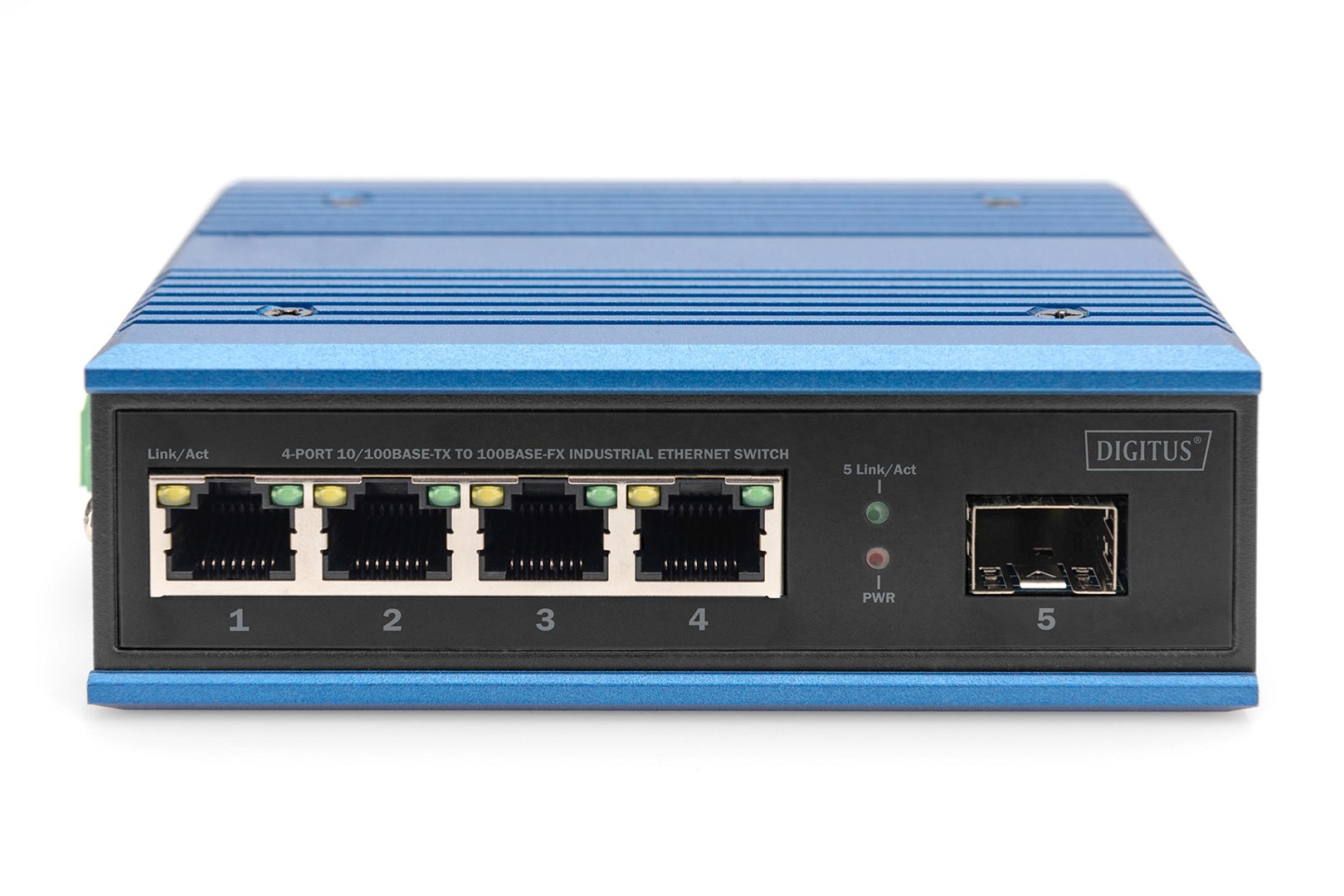

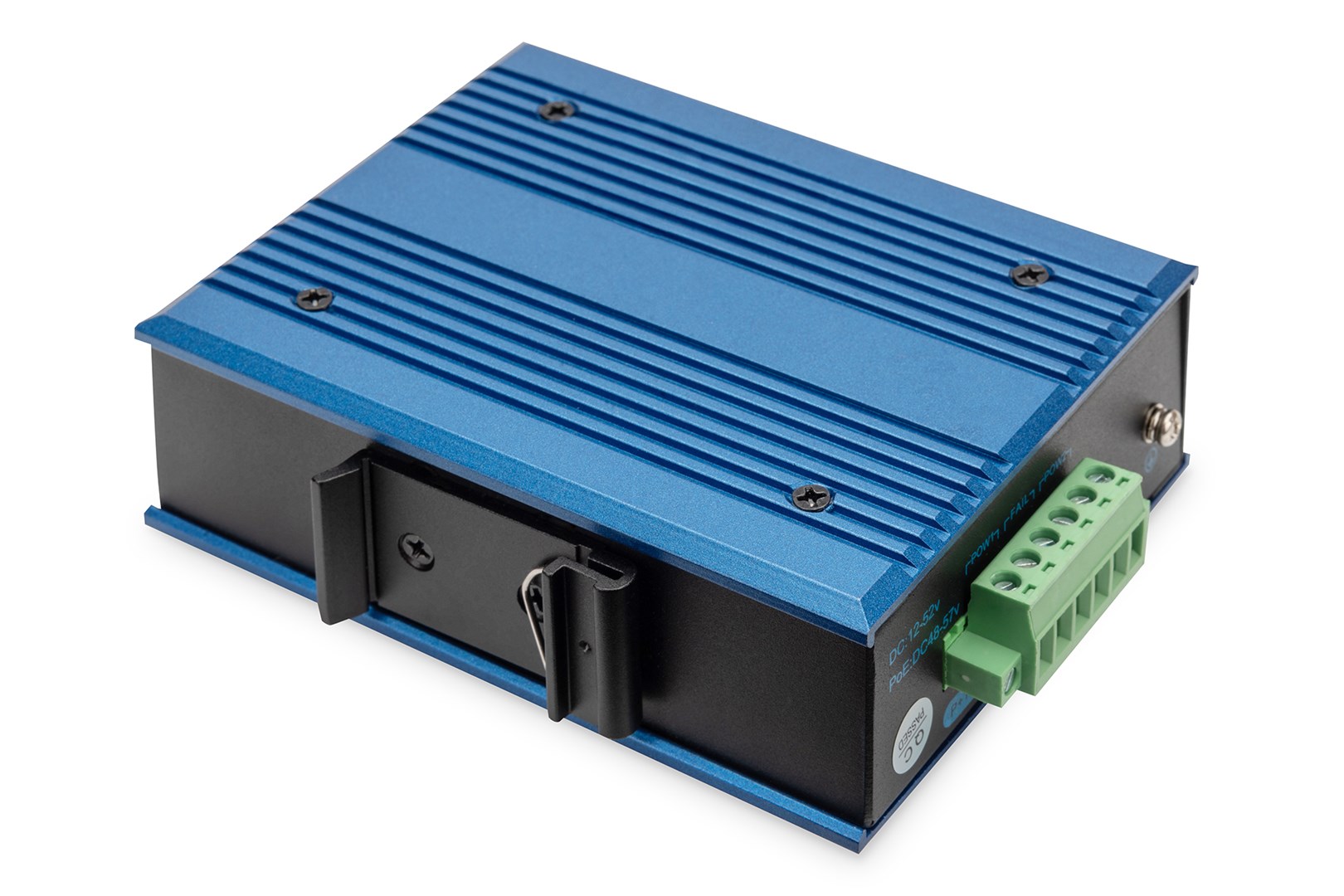

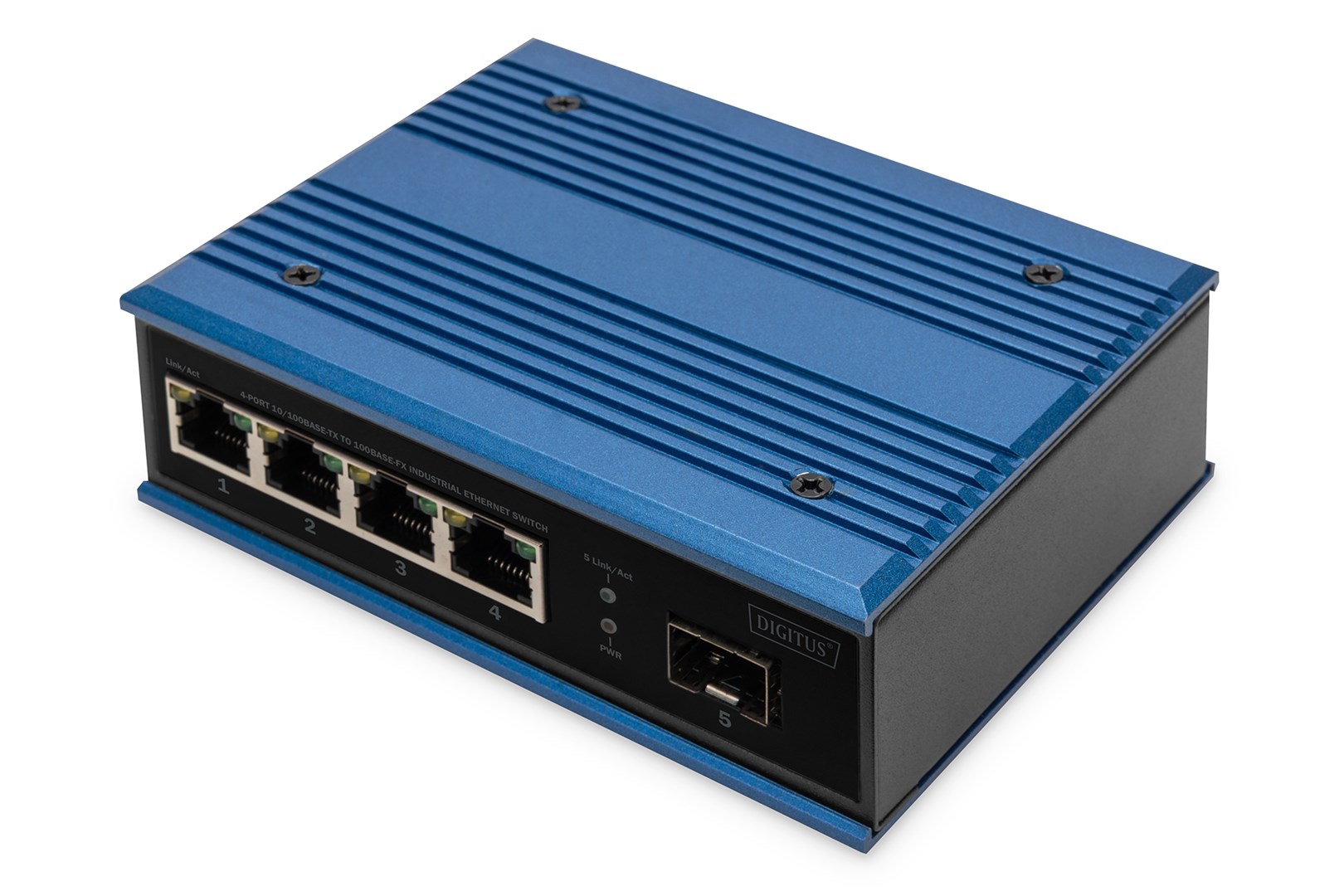

Digitus 4 port Fast Ethernet network switch, industrial, unmanaged, 1 SFP FE uplink

The DN-651130 is a 4+1 port Ethernet switch suitable for industrial applications (IP40) that offers interference-free data transfer performance in harsh industrial environments.

- The use of a high-quality photoelectric integration module ensures good transmission rates for optical and electrical connections.
- Ensures reliable data transmission
- Supports full-duplex or half-duplex mode, with automatic negotiation
- Network connection supports automatic cross-identification
- Uses "Store and Forward" technology The switch supports a variety of protocols
- complies with industrial operating standards
- Operating voltage: DC 12-48V
- Lightning surge protection (power): 5000A(8/20μs)

DN-651130 is an industrial Fast Ethernet switch with 4 port 10/100 Mbps RJ45 +1 port 100 Mbps base-FX. The industrial switch has the operating temperature of -40℃ ~ 80℃, is ruggedized and can be used in all kinds of harsh environments. The switch can be easily installed on a free DIN rail. The wide temperature range, IP40-rated housing and LED indicator make the DN-651130 an industrial-grade plug-and-play device that provides users with a reliable and convenient solution for networking their Ethernet devices.

ON ORDER

SKU: DN-651130

Manufacturer: Digitus Digitus

RRP Price €82.77

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
4
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity
4
SFP module slots quantity
1
Uplink ports quantity
1

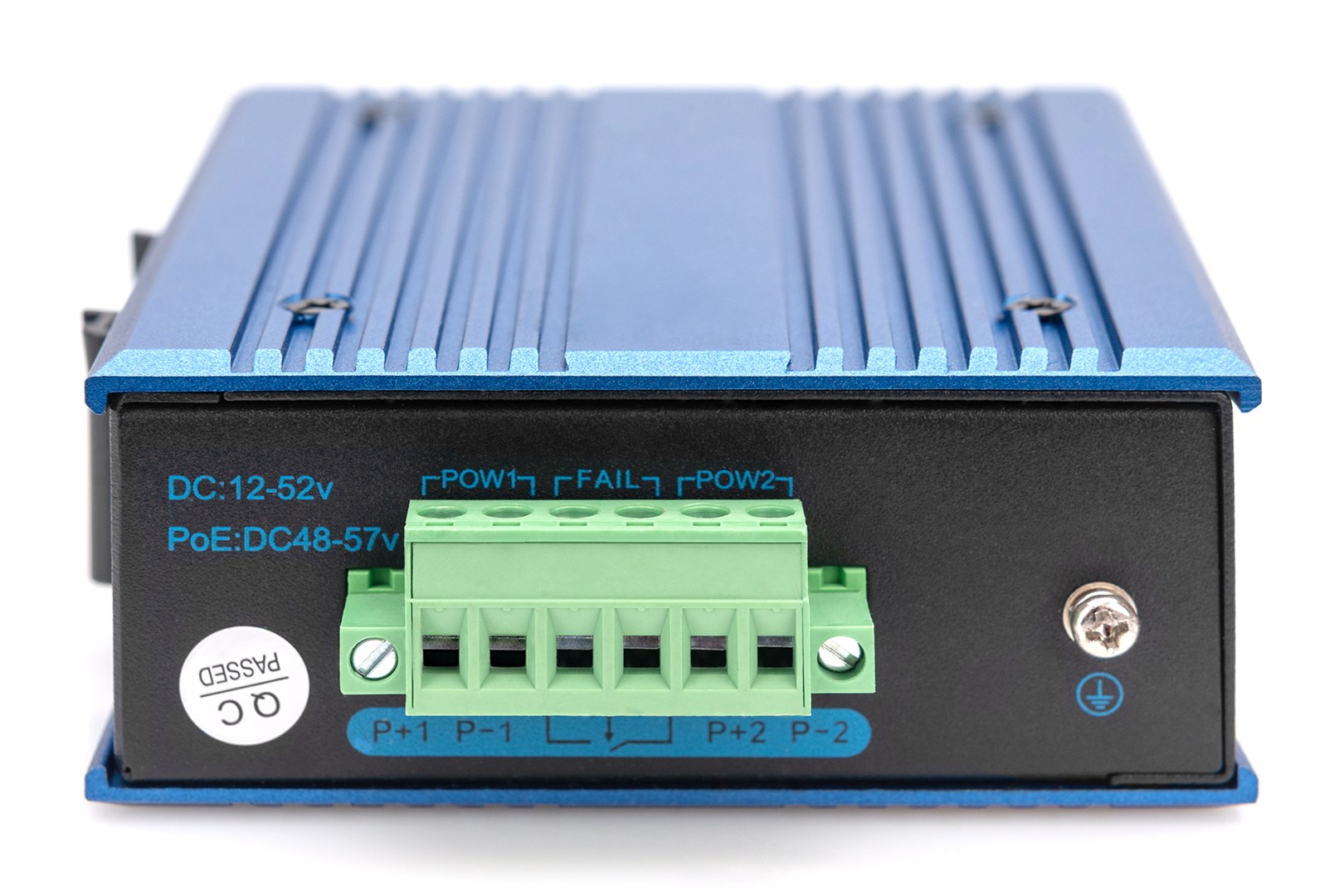

Power connector
Terminal block (6-pin)

Network

Networking standards
IEEE 802.3, IEEE 802.3u
10G support
No
Copper ethernet cabling technology
10BASE-T, 100BASE-FX, 100BASE-TX
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
10,100 Mbit/s
VLAN support
No

Data transmission

Switching capacity
0.1 Gbit/s
Forwarding rate
1.2 Mpps
MAC address table
2000 entries
Packet buffer memory
1 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Aluminium
LED indicators
Yes
International Protection (IP) code
IP40

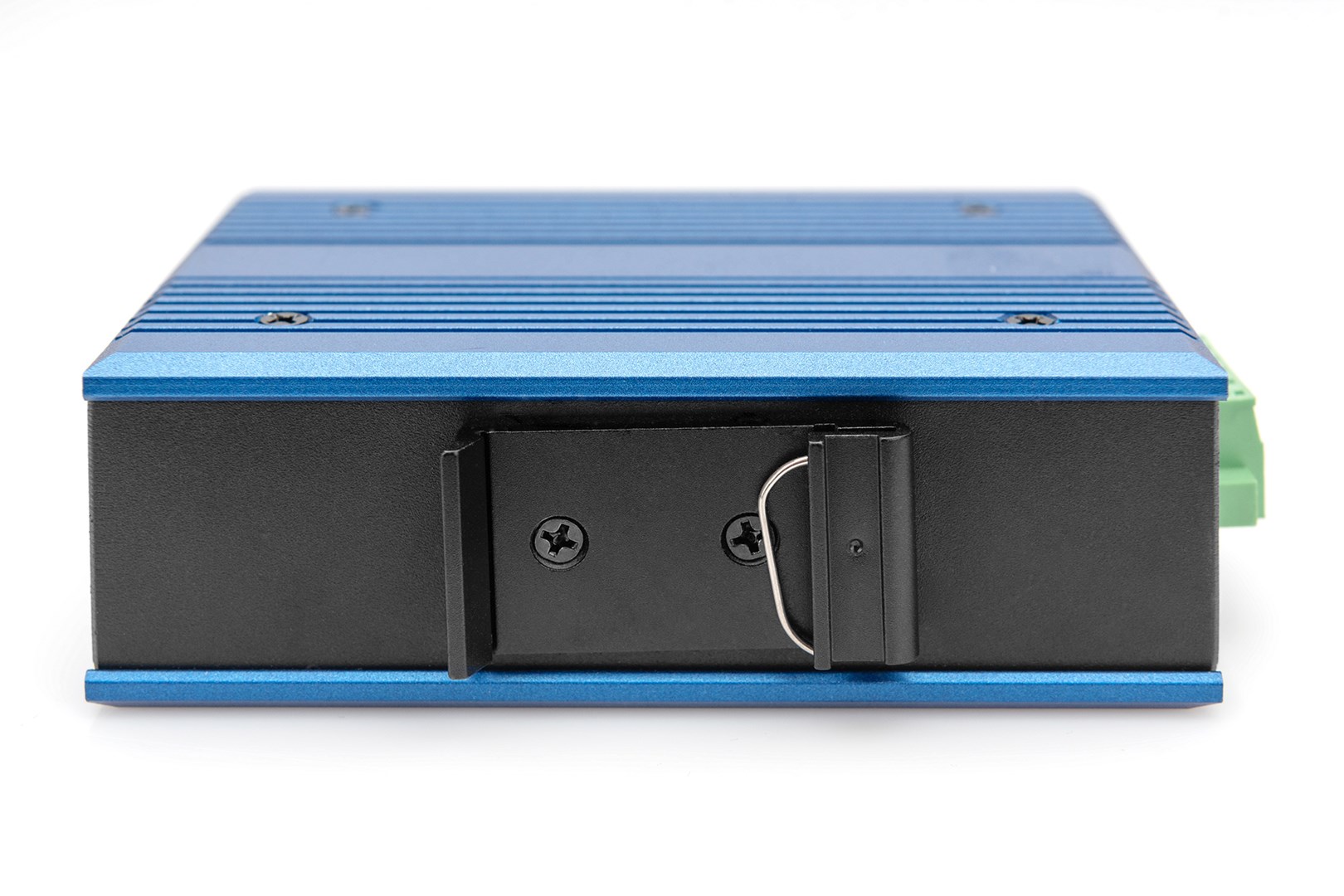

DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Power

Power source
DC
DC input voltage
12 - 52 V
Power consumption (typical)
3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Other features

Bandwidth
1.6 Gbit/s
Ethernet interface type
Fast Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
128 mm
Depth
86 mm
Height
34 mm
Weight
450 g

Packaging content

Manual
Yes

Packaging data

Package width
135 mm
Package depth
54 mm
Package height
165 mm
Package volume
1202.85 cm³
Package weight
541.667 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
