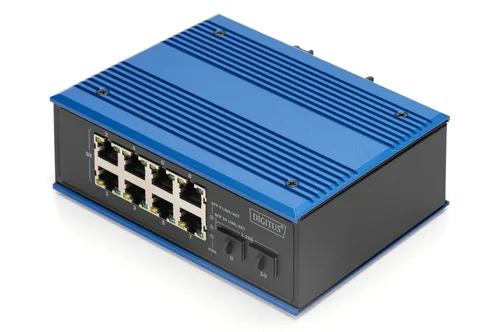

Digitus Industrial 8 + 2-port Gigabit Ethernet PoE switch

8x PoE 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

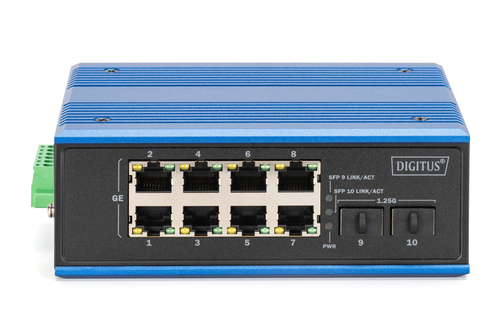

- Number of network connections: 8 GE ports, 2 SFP GE ports
- Transmission speed of the RJ45 network ports: 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)

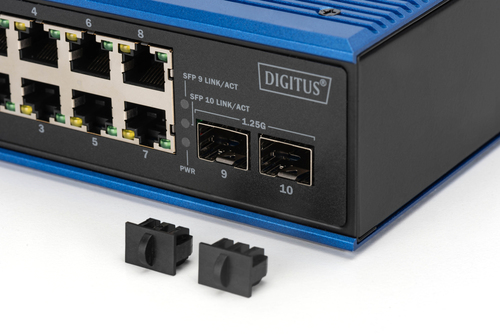

- Transmission speed of the uplink ports: 2 x 10/100/1000 Mbit (SFP)

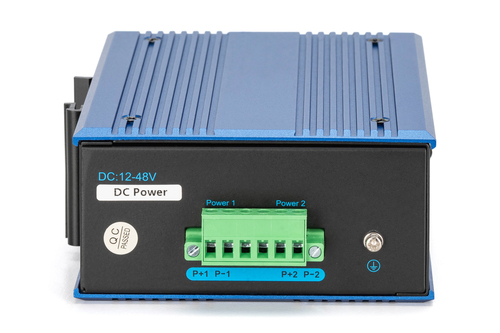

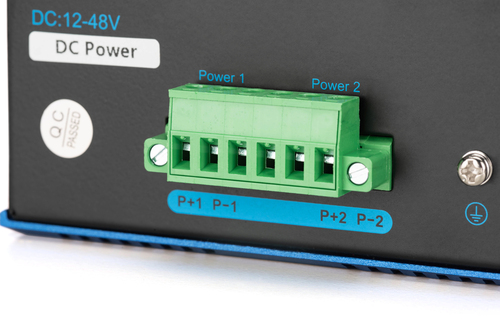

- Redundant power supply 48-57 V (DC)

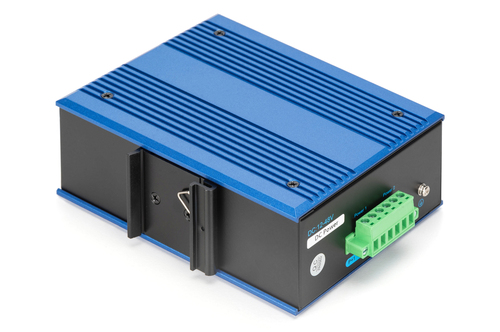

- Metal housing to IP40 standard

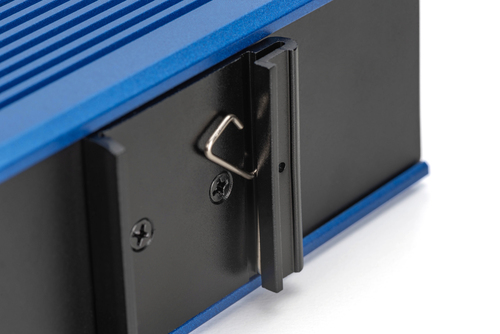

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651151 is a robust 8+ 2-port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 2x 1000 Base-Fx ports. The IP40 housing with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

1 IN STOCK

SKU: DN-651151

Manufacturer: Digitus Digitus

RRP Price €226.08

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.3af
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
15 Mpps
MAC address table
4000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
2 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
300000 h

Power

Power source
DC/PoE
Power supply included
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power consumption (typical)
8 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes

Other features

Bandwidth
20 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
142.5 mm
Depth
107.1 mm
Height
53 mm
Weight
620 g

Packaging content

Quick start guide
Yes
Manual
Yes

Packaging data

Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
917.857 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
