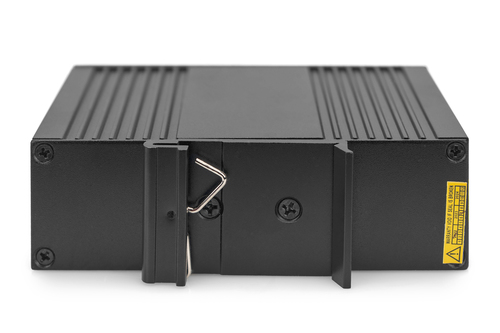

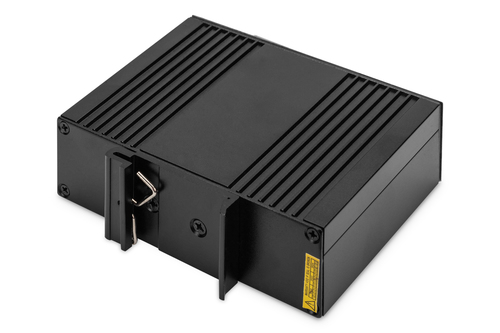

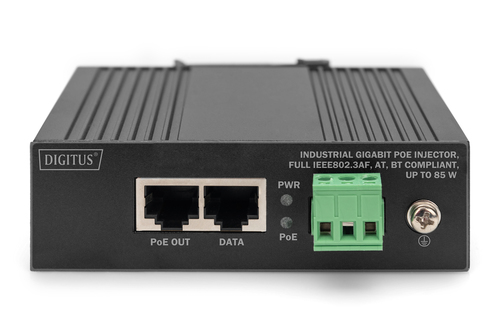

Digitus Gigabit EthernetPoE Injector, Industrial

Industrial Gigabit PoE Injector, full IEEE802.3af, at, bt Compliant, up to 85 W

- Full IEEE802.3af, IEEE802.3at, IEEE802.3bt Compliant
- Up to 85W of Power on 4-pairs
- Auto-detect of IEEE802.3af, IEEE802.3at, IEEE802.3bt PD
- Supports 10/100/1000Base-T applications
- LED indicators power input and PoE output indication
- Distance up to 100 meters
- DC Input 45~56V
- DIN-Rail installation
- Wide operating temperature: -40 ~ +75℃

The DN-651141 is a single port Mid-spans offer a compact and cost effective, fully IEEE802.3bt compliant solution for remote powering of wireless LAN (WAN) access points, IP Security cameras, VoIP telephone and other low port density installations. The DN-651141 PoE Mid-spans eliminate the need for external power supply and its associated AC/DC power cabling, providing a compact, affordable, safe and reliable power solution over existing Ethernet infrastructure.

1 IN STOCK

SKU: DN-651141

Manufacturer: Digitus Digitus

RRP Price €109.11

Specifications

Features

Networking standards
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Cabling technology
10/100/1000Base-T(X)
Power over Ethernet (PoE)
No
Product colour
Black
LED indicators
Yes
Plug and Play
Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 75 °C
Operating relative humidity (H-H)
0 - 90%
Storage relative humidity (H-H)
0 - 95%

Weight & dimensions

Width
103 mm
Depth
78 mm
Height
32 mm
Weight
295 g

Packaging content

Quick installation guide
Yes
Quantity per pack
1 pc(s)

Packaging data

Package width
188 mm
Package depth
95 mm
Package height
165 mm
Package weight
331.389 g
Package volume
4286.4 cm³

Power

Input voltage
45 - 56 V
Output power
85 W

Logistics data

UK Trade Tariff code
85176200
Country of origin
China

Accessories

License
