Digitus Industrial 4+2 -Port L2 managed Gigabit Ethernet Switch

Digitus Industrial 4+2 -Port L2 managed Gigabit Ethernet Switch

Name: Digitus Industrial 4+2 -Port L2 managed Gigabit Ethernet Switch
Brand: Digitus
SKU: DN-651154
Price: 222.29 EUR
Availability: OutOfStock

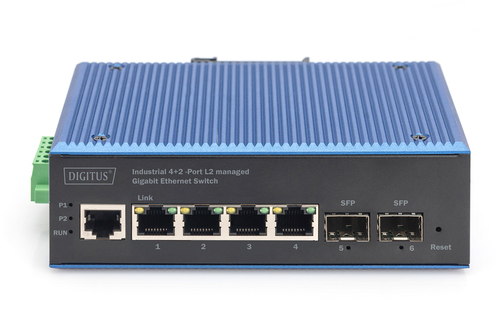

4 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 manageable, IP40 housing with redundant power supply, ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- 4 port GE RJ45, 2 SFP GE ports
- 4 x 10/100/1000 Mbit (RJ45)
- 2 x 10/100/1000 Mbit (SFP)

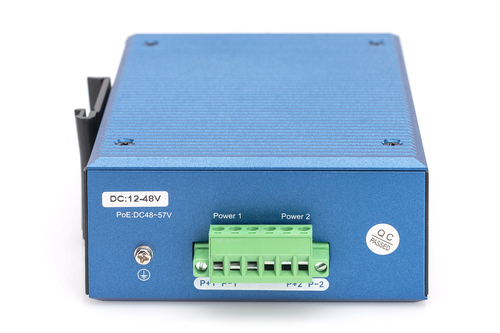

- Redundant power supply 12-48 V (DC)
- Metal housing to IP40 standard

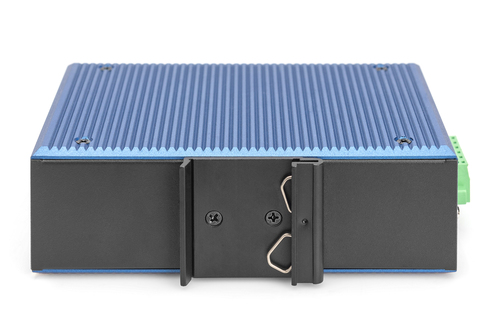

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 8 kV (DC)
- Ideal for connecting camera systems

The Digitus DN-651154 Ethernet switch with 4 x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in the event of failures. With IGMP and MLD snooping, you can optimize multicast data traffic. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritization. Extensive management options such as SNMP and CLI keep you in control. Our switch is a reliable network solution with advanced features to meet your needs.

ON ORDER

SKU: DN-651154

Manufacturer: Digitus Digitus

RRP Price €222.29

Specifications

Management features

Switch type

Managed

Switch layer

Quality of Service (QoS) support

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Gigabit Ethernet (copper) ports quantity

Installed SFP modules quantity

Fiber optic connector

SFP

Network

Networking standards

IEEE 802.3x

10G support

Port mirroring

Yes

Full duplex

Yes

Half duplex

Yes

Flow control support

Yes

Link aggregation

Yes

Broadcast storm control

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

VLAN support

Virtual LAN features

IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN

Number of VLANs

4094

Data transmission

Switching capacity

1 Gbit/s

Forwarding rate

15 Mpps

MAC address table

4000 entries

Store-and-forward

Yes

Jumbo frames support

Yes

Jumbo frames

10240

Packet buffer memory

4.1 MB

Security

Access Control List (ACL)

Yes

IGMP snooping

Yes

MAC address filtering

Yes

Design

Rack mounting

Stackable

Product colour

Black, Blue

Housing material

Metal

International Protection (IP) code

IP40

DIN rail mounting

Yes

Vandal-proof

Suitable for outdoor use

Performance

Mean time between failures (MTBF)

300000 h

Power

Power source

Power supply included

Yes

Redundant power supply (RPS) support

Yes

DC input voltage

12 - 48 V

Power consumption (typical)

5 W

Surge protection

Yes

Surge protection voltage

4 kV

Power over Ethernet (PoE)

Other features

Bandwidth

20 Gbit/s

Ethernet interface type

Gigabit Ethernet

Operational conditions

Operating temperature (T-T)

-40 - 80 °C

Storage temperature (T-T)

-40 - 80 °C

Operating relative humidity (H-H)

5 - 95%

Storage relative humidity (H-H)

5 - 95%

Weight & dimensions

Width

143.7 mm

Depth

104 mm

Height

47.7 mm

Weight

700 g

Packaging content

Quick start guide

Yes

Manual

Yes

Packaging data

Package width

158 mm

Package depth

66 mm

Package height

213 mm

Package volume

2221.16 cm³

Package weight

635 g

Logistics data

UK Trade Tariff code

85176200

Country of origin

China

Description

Manufacturer

Digitus

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.7 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
