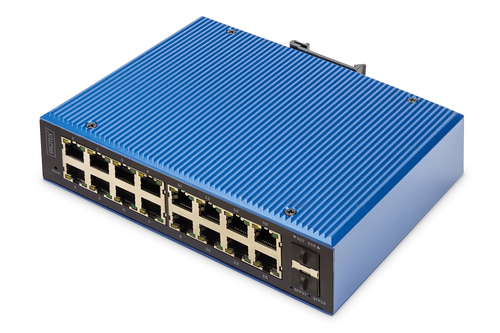

Digitus Industrial 16+2 port L2 managed Gigabit Ethernet PoE switch

16 x 10/100/1000 BASE-TX RJ45 + 2x 1000Base-Fx ports, L2 manageable, IP40 housing with redundant power supply, ideal for monitoring, control management and wireless services at -40℃ to 80℃. Ports 1-8 (RJ45) support PoE according to IEEE802.3af/at standards with up to 30W per port.

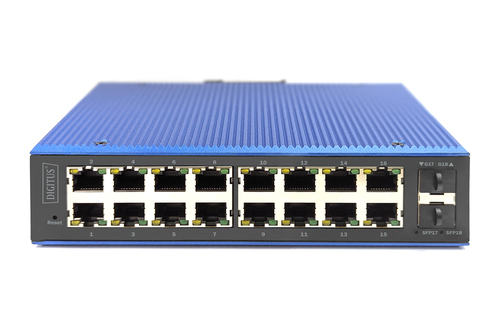

- 16 port GE RJ45, 2 SFP GE ports
- 16 x 10/100/1000 Mbit (RJ45, PoE IEEE802.3af/at)
- 2 x 10/100/1000 Mbit (SFP)

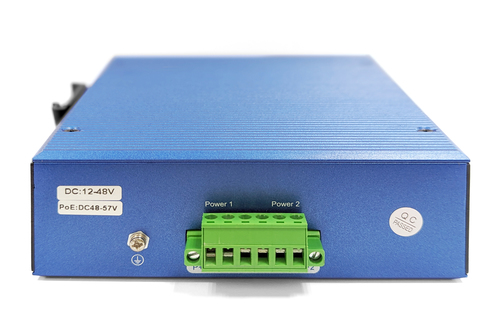

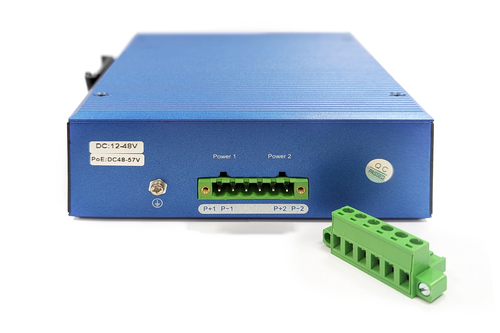

- Redundant power supply 48 -57V (DC)
- Metal housing according to IP40 standard

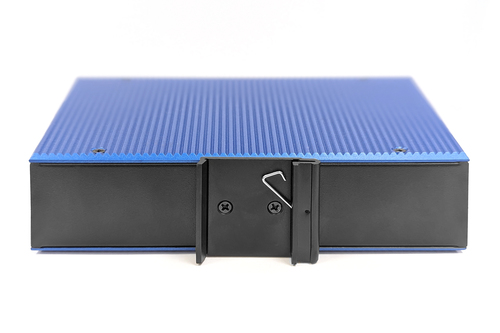

- Easy mounting on a DIN rail
- Operating temperature from - 40° up to 80° C
- Numerous L2 management features
- ESD & EFT protection up to 8 kV (DC)
- Ideal for connecting camera systems

The Digitus DN-651159 Ethernet switch with 16x RJ45 interfaces and 2 x SFP uplinks offers numerous Layer 2 port functions for optimum network performance. It supports flow control, link aggregation and various routing strategies. The switch enables VLAN management, supports spanning tree protocols and ensures fast recovery in the event of failures. With IGMP and MLD snooping, you can optimize multicast data traffic. The switch offers advanced security features such as ACLs and supports QoS for traffic prioritization. Extensive management options such as SNMP and CLI keep you in control. The RJ45 ports can supply connected PoE devices with up to 30W each. Our switch is a reliable network solution with advanced features to meet your needs.

ON ORDER

SKU: DN-651159

Manufacturer: Digitus Digitus

RRP Price €483.32

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
16
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
16
Installed SFP modules quantity
2
Fiber optic connector
SFP

Network

Networking standards
IEEE 802.3af
10G support
No
Port mirroring
Yes
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Link aggregation
Yes
Broadcast storm control
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No
Virtual LAN features
IP subnet–based VLAN, MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Voice VLAN
Number of VLANs
4094

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
42 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
10240
Packet buffer memory
4.1 MB

Security

Access Control List (ACL)
Yes
IGMP snooping
Yes
MAC address filtering
Yes

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Mean time between failures (MTBF)
300000 h

Power

Power source
DC/PoE
Power supply included
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power consumption (typical)
15 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Total Power over Ethernet (PoE) budget
30 W

Other features

Bandwidth
56 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
175.6 mm
Depth
135 mm
Height
45.5 mm
Weight
1.2 kg

Packaging content

Quick start guide
Yes

Packaging data

Package width
186 mm
Package depth
72.5 mm
Package height
208 mm
Package volume
2804.88 cm³
Package weight
75 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
