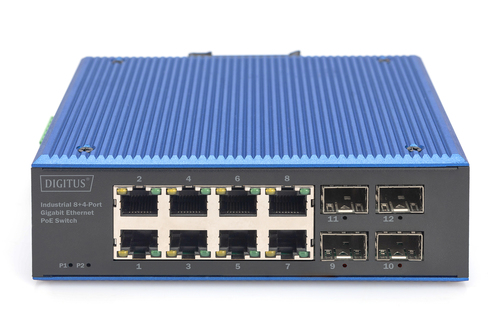

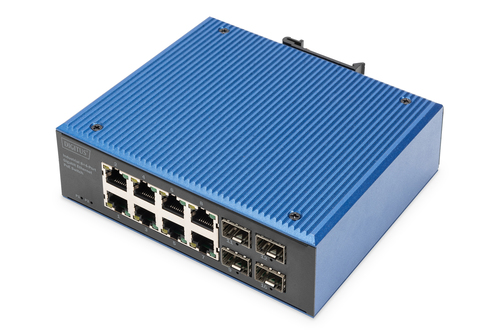

Digitus Industrial 8+4 port Gigabit Ethernet PoE switch

8x PoE 10/100/1000 BASE-TX RJ45 + 4 x 1000Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

- 8 port GE, 2 SFP GE ports
- 8 x 10/100/1000 Mbit (RJ45, PoE 802.3af/at)
- 4 x 10/100/1000 Mbit (SFP)
- Redundant power supply 48-57 V (DC)
- Metal housing to IP40 standard

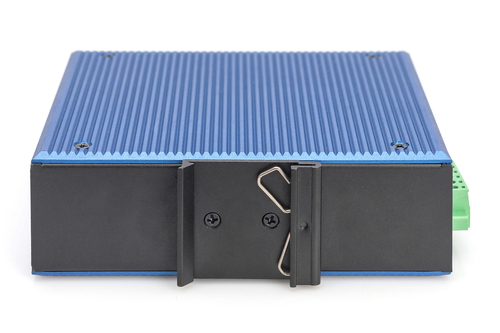

- Simple mounting on a top-hat rail
- Operating temperature from - 40° up to 80° C
- Simple plug & play installation
- ESD & EFT protection up to 6 kV (DC)
- Ideal for connecting camera systems

The DN-651153 is a robust 8+4 port Industrial Gigabit Ethernet PoE switch for harsh environments. With non-blocking wire-speed performance, it offers 8x 10/100/1000 BASE-TX RJ45 (up to 30 W PoE each) + 4 x 1000 Base-Fx ports. The IP40 enclosure with redundant power supply is ideal for monitoring, control management and wireless services at -40℃ to 80℃.

ON ORDER

SKU: DN-651153

Manufacturer: Digitus Digitus

RRP Price €355.80

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
8
Installed SFP modules quantity
2
Installed SFP+ modules quantity
2
Fiber optic connector
SFP, SFP+

Network

Networking standards
IEEE 802.3af
10G support
No
Full duplex
Yes
Half duplex
Yes
Flow control support
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
VLAN support
No

Data transmission

Switching capacity
1 Gbit/s
Forwarding rate
38.7 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
9000
Packet buffer memory
4.1 MB

Design

Rack mounting
No
Stackable
No
Product colour
Black, Blue
Housing material
Metal
International Protection (IP) code
IP40
DIN rail mounting
Yes
Vandal-proof
No
Suitable for outdoor use
No

Performance

Plug and Play
Yes
Mean time between failures (MTBF)
300000 h

Power

Power source
DC/PoE
Power supply included
Yes
Redundant power supply (RPS) support
Yes
DC input voltage
48 - 57 V
Power consumption (typical)
10 W
Surge protection
Yes
Surge protection voltage
4 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) ports quantity
4
Total Power over Ethernet (PoE) budget
30 W

Other features

Bandwidth
52 Gbit/s
Ethernet interface type
Gigabit Ethernet

Operational conditions

Operating temperature (T-T)
-40 - 80 °C
Storage temperature (T-T)
-40 - 80 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
143.7 mm
Depth
125 mm
Height
47.7 mm
Weight
760 g

Packaging content

Quick start guide
Yes
Manual
Yes

Packaging data

Package width
158 mm
Package depth
66 mm
Package height
213 mm
Package volume
2221.16 cm³
Package weight
750 g

Logistics data

UK Trade Tariff code
85176200
Country of origin
China
