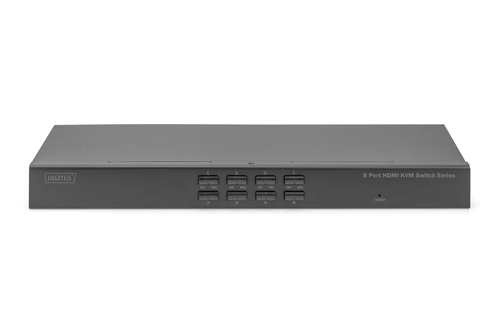

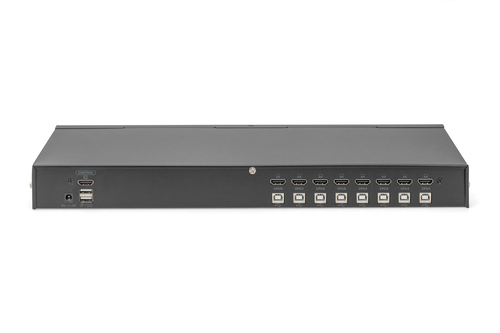

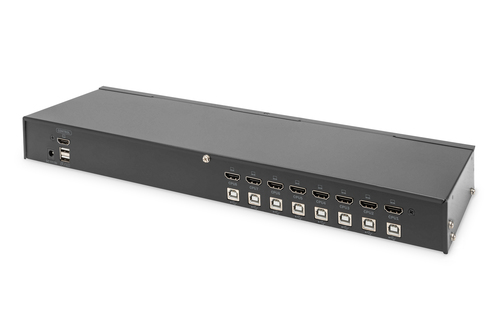

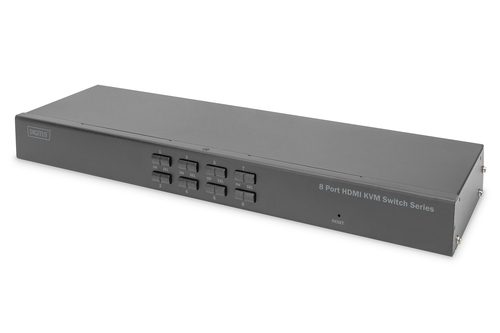

Digitus 8 Port HDMI KVM Switch Series

- The console supports USB TYPE A interface type keyboard and mouse devices
- The maximum resolution of rack type KVM is 4K @30HZ (users need to match 4K cable by themselves)
- It can switch the computer through the front panel buttons, keyboard hot keys and the OSD menu
- Connects to the server device for BIOS-level access without worrying about the risk of viruses and Trojans invasion.
- The server computer does not need to install any software and drivers, and the server computer directly recognizes KVM.
- Supports OSD to set user login mode and increase the security requirements of KVM login.
- Supports wide-screen resolution.
- Supports DDC communication and adapts to a variety of graphic card devices.

Introducing the DS-12910, a versatile console that allows you to easily switch between max 8 HDMI computers using USB TYPE A interface type keyboard and mouse devices. With a maximum resolution of 4K @30HZ, this rack type KVM is perfect for users who demand high-quality visuals. The front panel buttons, keyboard hot keys and OSD menu make switching between computers a breeze, while the device's ability to connect to the server device for BIOS-level access provides added security against viruses and Trojans invasion. And because the server computer doesn't require any software or drivers, it can recognize the KVM directly. The DS-12910 also supports wide-screen resolution, DDC communication, and can adapt to a variety of graphics card devices. The auto scan function enables you to monitor all computer operations with ease. The device is compatible with Windows, Linux, Mac* and Sun*, and the keyboard and mouse connection port of the server computer adopts Keep Online technology to simulate the keyboard and mouse. As a result, the device is safe, stable, and switching is fast without delay.

1 IN STOCK

SKU: DS-12910

Manufacturer: Digitus Digitus

RRP Price €801.44

Specifications

Ports & interfaces

Number of computers controlled
8
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
8
USB 2.0 Type-B ports quantity
8
Console ports
HDMI, USB A
Console USB ports quantity
2
Console HDMI ports quantity
1
USB 2.0 Type-A hub ports quantity
2
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Video bandwidth
30 Hz
DDC/DDC2 supported
Yes

Design

Rack mounting
Yes
Product colour
Black
Housing material
Metal
Push button
Yes

Display

Built-in display
No
On Screen Display (OSD)
Yes

Power

Power source
DC

System requirements

Windows operating systems supported
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Server operating systems supported
Yes
Other operating systems supported
FreeBSD, Solaris 10, Solaris 11, Solaris 8, Solaris 9, UnixWare

Weight & dimensions

Width
155 mm
Depth
44 mm
Height
432 mm

Packaging data

Package width
155 mm
Package depth
204 mm
Package height
475 mm
Package volume
15019.5 cm³
Package weight
475 g

Packaging content

Cables included
HDMI, USB
AC adapter included
Yes
Rack mount kit
Yes

Logistics data

UK Trade Tariff code
84718000
Country of origin
China
