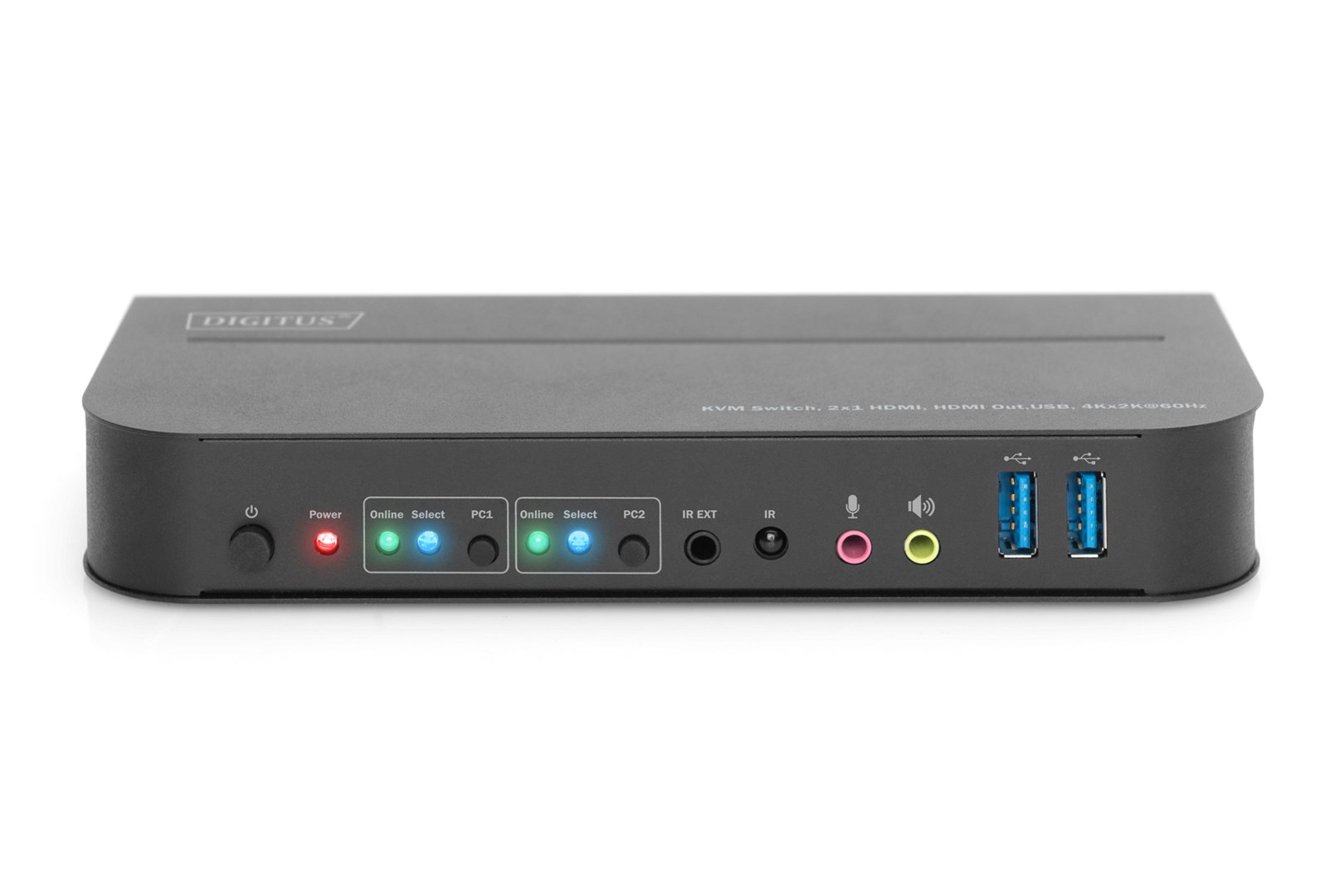

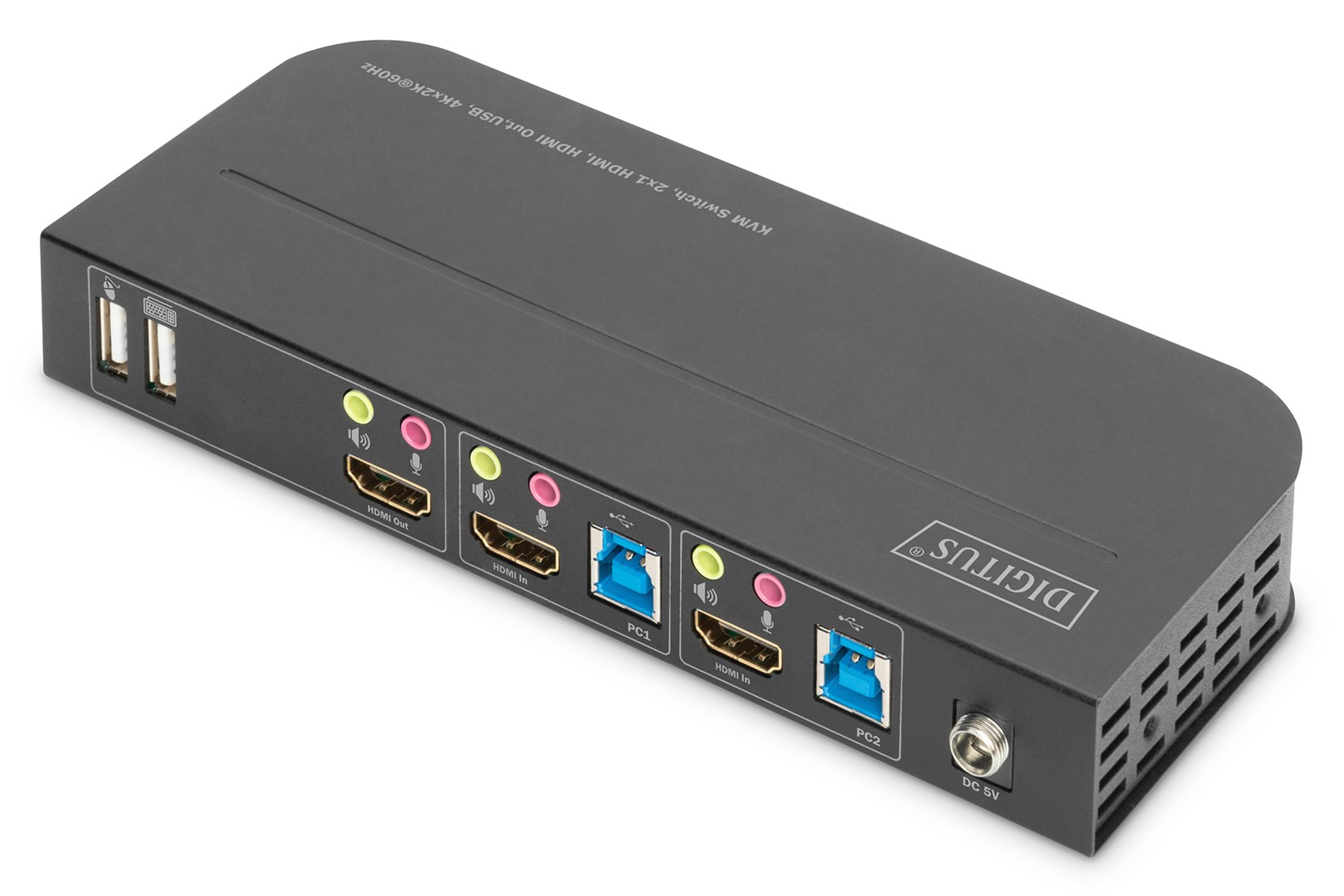

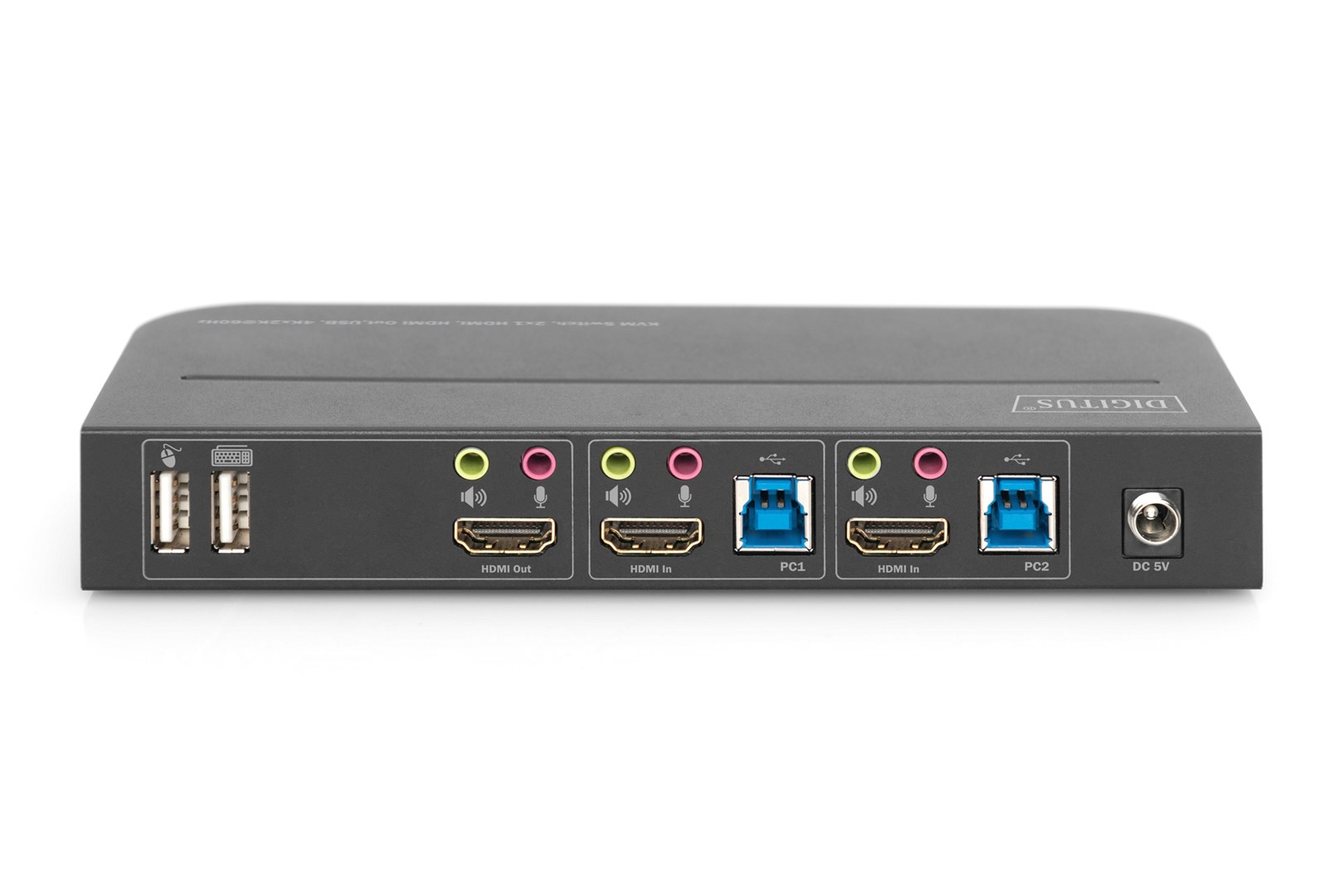

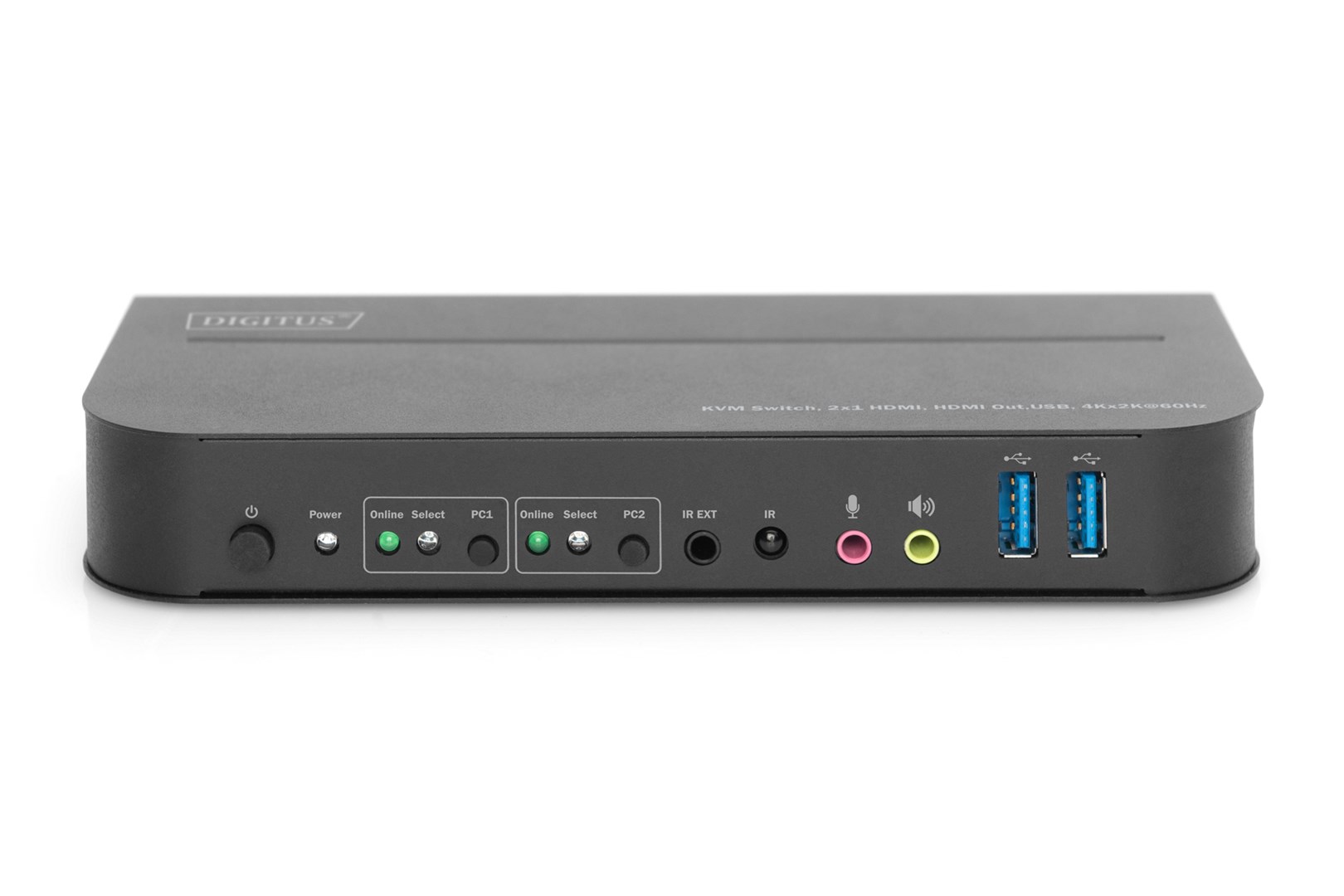

Digitus KVM Switch, 2x1 HDMI, HDMI Out,USB, 4Kx2K@60Hz

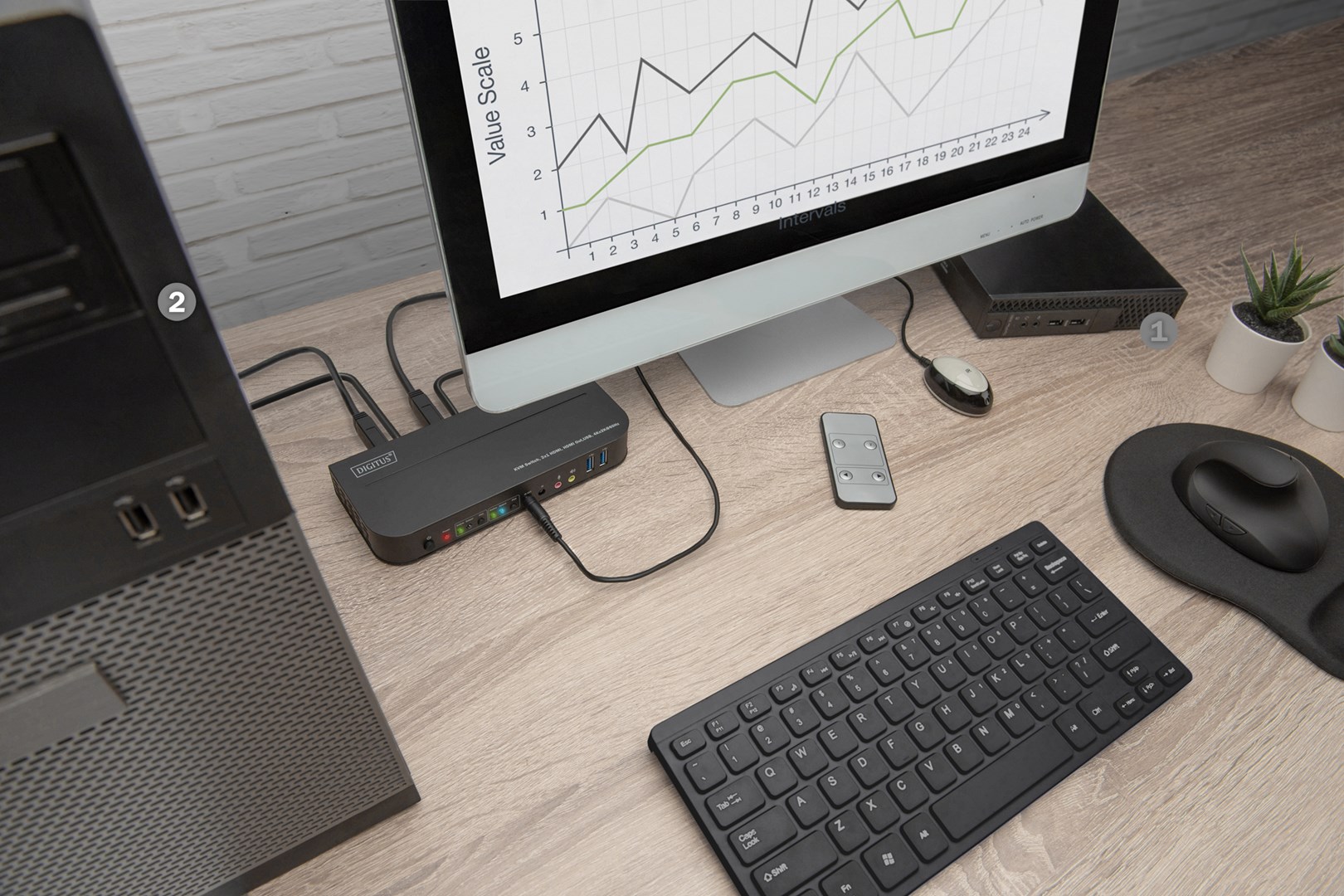

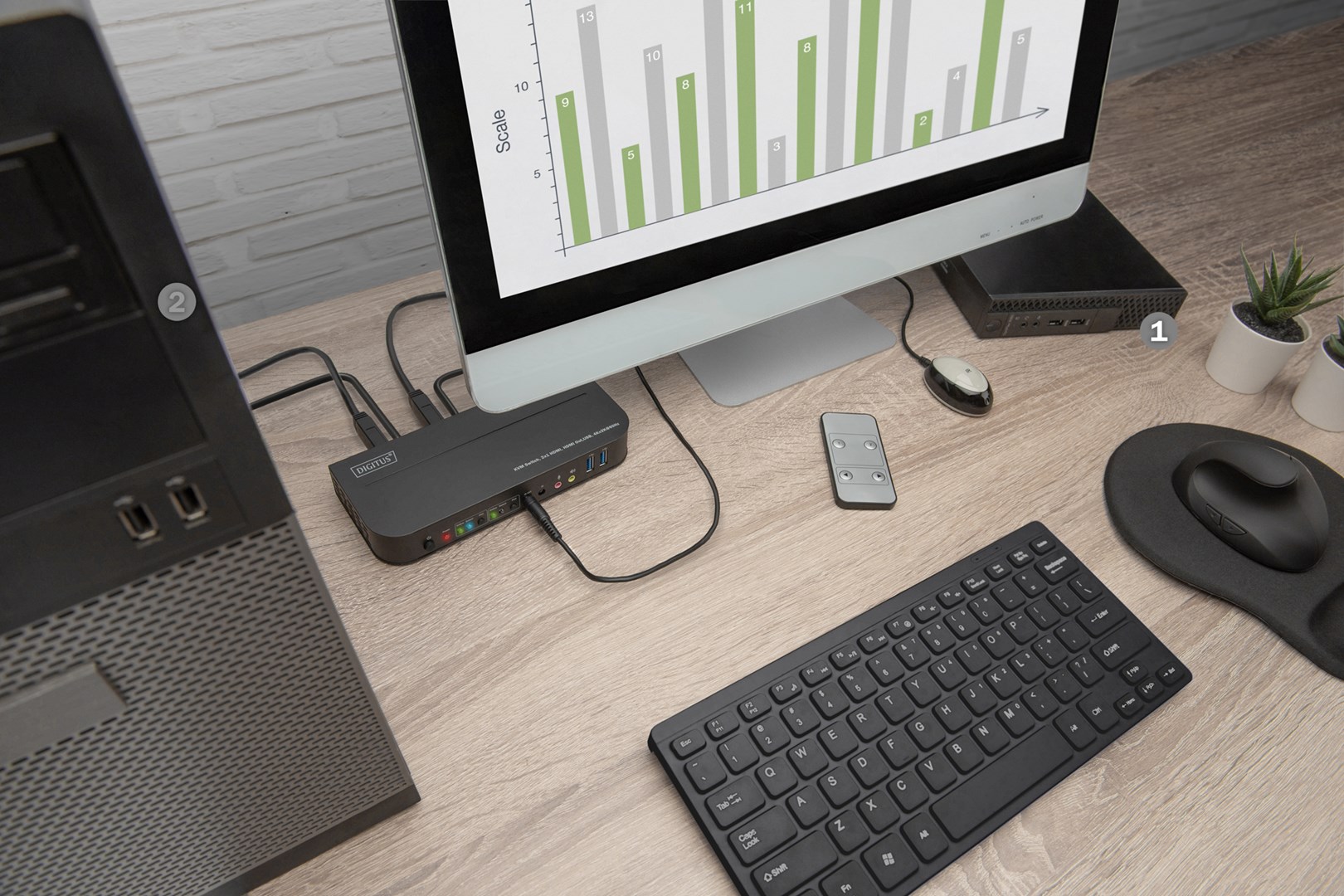

Operate 2 PCs with one USB keyboard and mouse – switch between two computers by pressing a button or with the remote control

- Use a monitor, a mouse and a keyboard to operate two computers
- USB ports for mouse and keyboard
- Audio connections for microphone/speaker
- Integrated USB hub with 2 x USB 3.0 connections for additional peripheral equipment
- Switching between the PCs via switch on the KVM switch, remote control or hot key on the keyboard
- External receiver for signals from remote control included
- Compatible with HDMI 2.0 / HDCP 2.2 / HDR / FreeSync / 3D /
- LED status and functional displays on the front side
- Wall installation possible
- Plug and Play - no driver installation required
- Support infrared remote control function
- Support Windows /Linux/Apple Mac OS

The DIGITUS® 2-Port KVM Switch is a high-performance HDMI-KVM switcher. It routes high definition video (in multiple resolutions up to 4kx2k@60Hz) and audio from any one of the several sources to display units. This HDMI-KVM switcher not only has the key-press-switching function, but also has intelligent function as well as hot pluggable function.

26 IN STOCK

SKU: DS-12874

Manufacturer: Digitus Digitus

RRP Price €148.63

Specifications

Ports & interfaces

Number of computers controlled
2
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
3
HDMI version
2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity
2
Console ports
3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity
2
Console HDMI ports quantity
1
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity
2
Audio connections
Yes
Headphone outputs
4
Number of microphone inputs
4
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
4096 x 2160 pixels
Video bandwidth
60 Hz
Data transfer rate (max)
18 Gbit/s
High Dynamic Range (HDR) supported
Yes
HDCP
Yes
Plug and Play
Yes
HDCP version
1.4/2.2

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Yes
Push button
Yes

Display

Built-in display
No

Power

Power source
DC
Input voltage
100 - 240, 5 V
AC input frequency
50/60 Hz
Input current
3 A
External power adapter
Yes

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
10 - 85%

Weight & dimensions

Width
178 mm
Depth
75 mm
Height
26 mm
Weight
366 g

Packaging data

Package width
180 mm
Package depth
65 mm
Package height
230 mm
Package volume
2691 cm³
Package weight
608 g
Package type
Box

Packaging content

Cables included
HDMI, IR, USB Type-A to USB Type-B
Manual
Yes
AC adapter included
Yes
Remote control included
Yes

Other features

Colour depth
32 bit

Logistics data

UK Trade Tariff code
84718000
Country of origin
China
