Digitus KVM Switch, 4 Port, Dual Display, 4K, HDMI®

Operate 4 PCs with dual display using a USB keyboard and mouse combination – switch between two computers by pressing a button

- Use two monitors, one mouse / keyboard to operate 4 computers with dual display
- Supports a maximum UHD resolution of 4K / 30 Hz + FreeSync
- USB ports for mouse and keyboard
- Audio connections for microphone / speakers, supports Dolby True HD and DTS HD Master Audio
- Integrated USB hub with USB A port for additional peripheral devices
- Switching between the PCs via switch on the KVM switch or hotkey on the keyboard

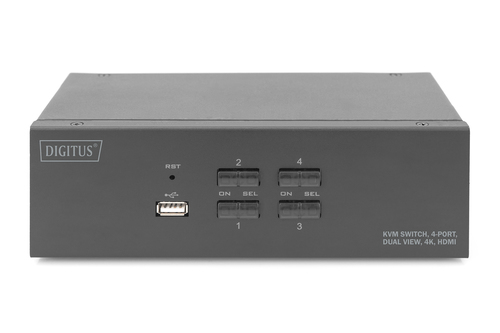

- LED status and function indicators on the front
- No more time-consuming re-plugging of connection cables necessary
- True plug and play - no software or driver installation required (BIOS hardware connection)
- Robust metal housing

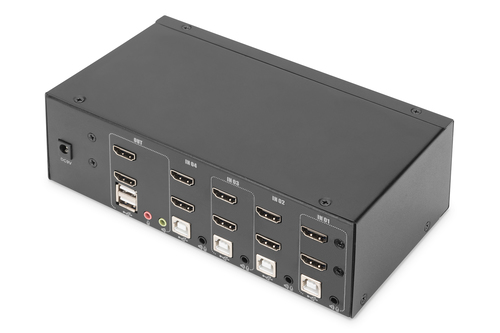

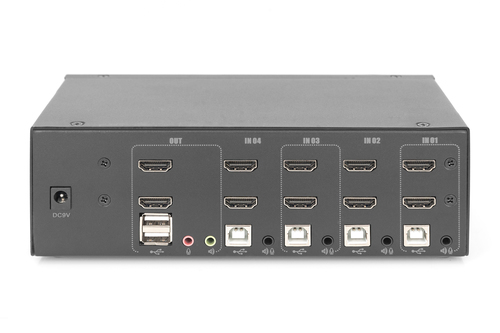

With the DIGITUS® 4-Port KVM Switch for dual displays, you can operate four 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between all four PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two HDMI® outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

12 IN STOCK

SKU: DS-12883

Manufacturer: Digitus Digitus

RRP Price €177.02

Specifications

Ports & interfaces

Number of computers controlled
4
Keyboard port type
USB
Mouse port type
USB
Video port type
HDMI
HDMI ports quantity
10
HDMI version
1.4b
USB 2.0 Type-B ports quantity
4
Console ports
HDMI, USB A
Console USB ports quantity
2
USB hub
Yes
USB 2.0 Type-A hub ports quantity
3
USB connector type
USB Type-A
Audio connections
Yes
Headphone outputs
1
Number of microphone inputs
1
DC-in jack
Yes

Performance

HD type
4K Ultra HD
Maximum resolution
3840 x 2160 pixels
Plug and Play
Yes

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
Status

Display

Built-in display
No

Power

Output current
0.3 A
External power adapter
Yes

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 80%

Weight & dimensions

Width
202 mm
Depth
110 mm
Height
66 mm
Weight
920 g

Packaging data

Package width
210 mm
Package depth
210 mm
Package height
160 mm
Package volume
5292 cm³
Package weight
13.2 kg

Packaging content

Cables included
HDMI, KVM
Quick installation guide
Yes
AC adapter included
Yes

Logistics data

UK Trade Tariff code
84718000
Country of origin
China
