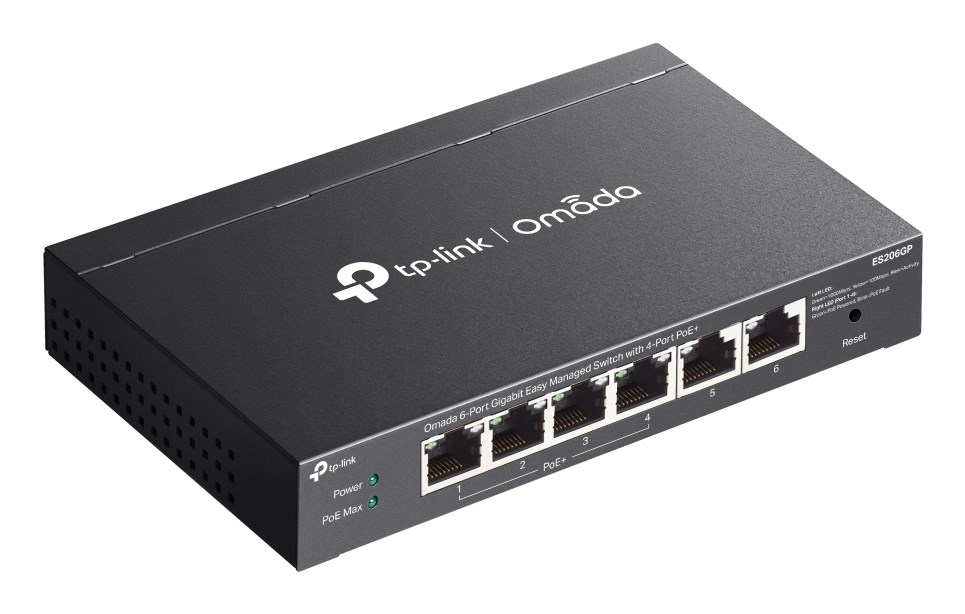

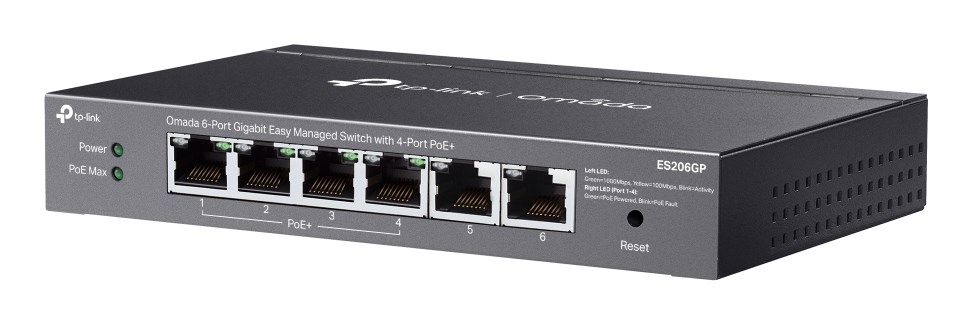

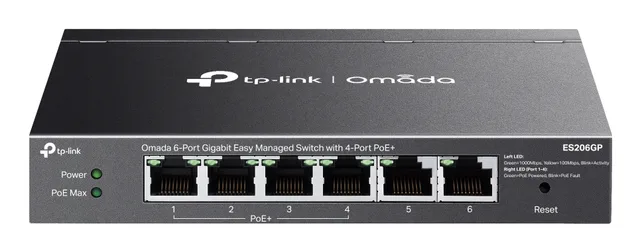

TP-Link Omada ES206GP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management
Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.

51 IN STOCK

SKU: ES206GP

Manufacturer: TP-Link TP-Link

RRP Price €63.25

Specifications

Management features

Switch type
Managed
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Unified static configuration
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
6
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
6

Network

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x
10G support
No
Zero Touch Provisioning (ZTP)
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN

Optical fiber

Transmission distance (max)
0.25 km

Data transmission

Switching capacity
12 Gbit/s
Forwarding rate
7.4 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15
Packet buffer memory
4 MB

Security

DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)

Design

Product colour
Black
Reset button
Yes
LED indicators
Yes

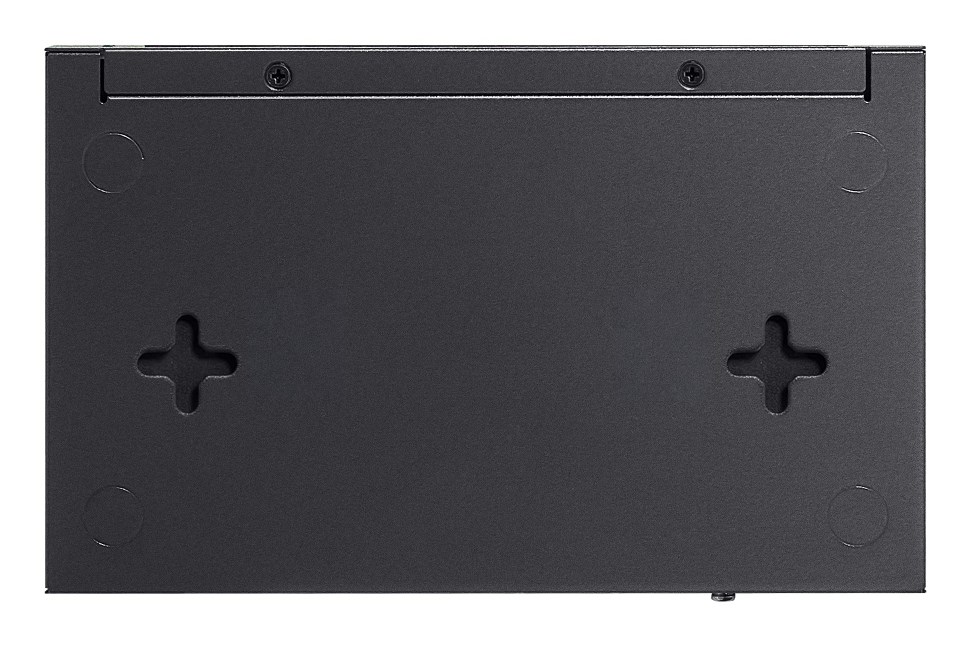

Wall mountable
Yes

Performance

Firmware upgradeable
Yes
Fanless
Yes

Power

Power source
DC
Power supply included
Yes

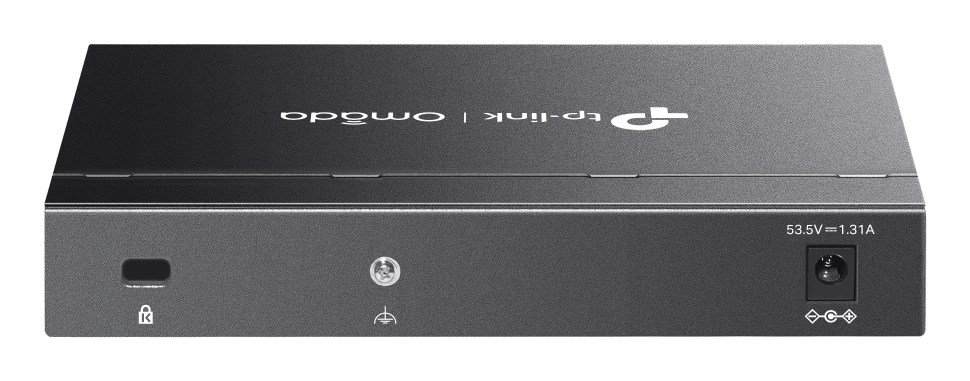

DC input voltage
53.5 V
Input current
1.31 A
Surge protection
Yes
Surge protection voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
4
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
65 W

Operational conditions

Operating temperature (T-T)
-5 - 40 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%

Weight & dimensions

Width
158 mm
Depth
101 mm
Height
25 mm

Packaging content

User guide
Yes

Packaging data

AC adapter included
Yes
Package type
Box

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Accessories

License
