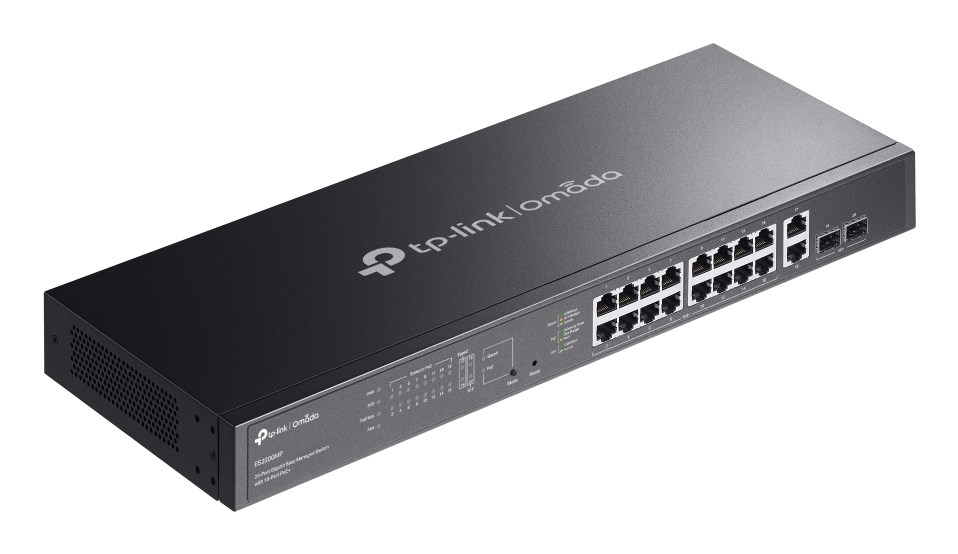

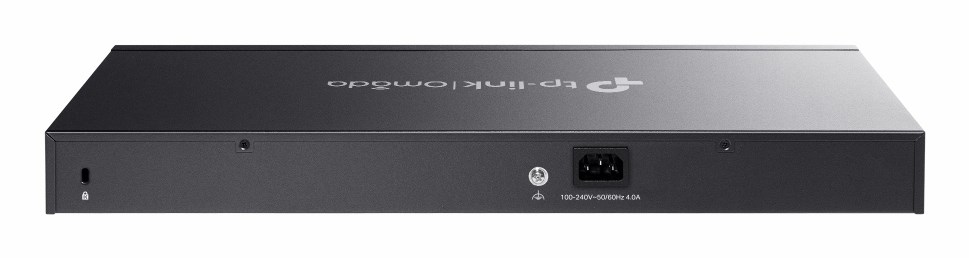

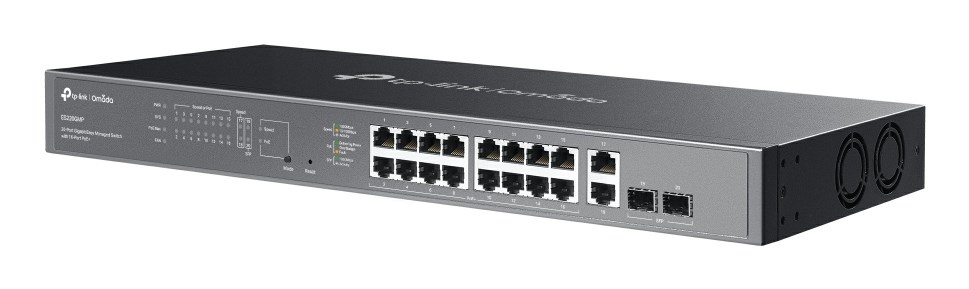

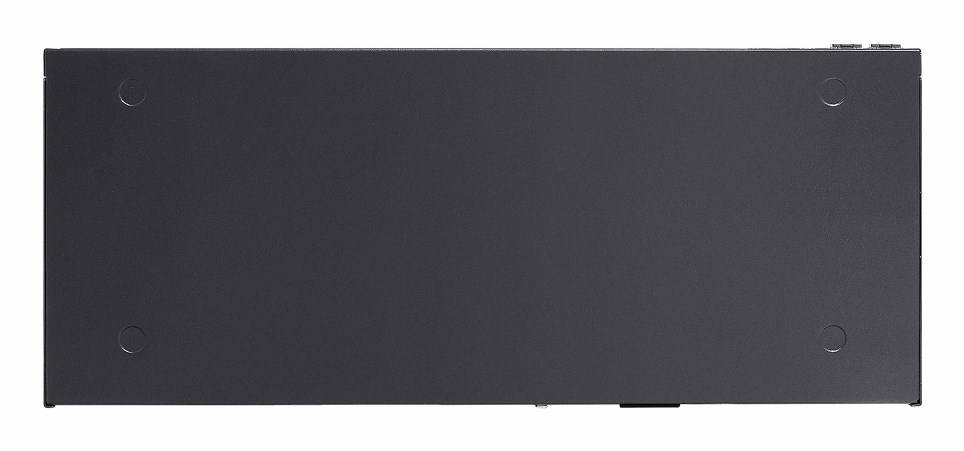

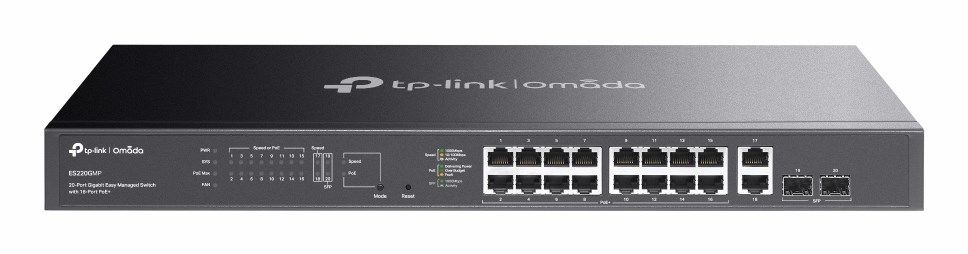

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

12 IN STOCK

SKU: ES220GMP

Manufacturer: TP-Link TP-Link

RRP Price €226.13

Specifications

Management features

Switch type
Managed
Switch layer
L2
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
Unified static configuration
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
18
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity
18
SFP module slots quantity
2
Power connector
AC-in jack

Network

Networking standards
IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
10G support
No
Zero Touch Provisioning (ZTP)
Yes
Port mirroring
Yes
Flow control support
Yes
Link aggregation
Yes
Auto MDI/MDI-X
Yes
Auto-negotiation
Yes
Fast leave
Yes
VLAN support
Yes
Virtual LAN features
MTU VLAN, Port-based VLAN, Tagged VLAN
Number of VLANs
32

Data transmission

Switching capacity
40 Gbit/s
Forwarding rate
29.76 Mpps
MAC address table
8000 entries
Store-and-forward
Yes
Jumbo frames support
Yes
Jumbo frames
15000
Packet buffer memory
4 MB

Security

DHCP features
DHCP client
IGMP snooping
Yes
Loop protection
Yes
Queue scheduling algorithms
Weighted Round Robin (WRR)

Design

Rack mounting
Yes
Stackable
No
Product colour
Black
LED indicators
Yes
Number of fans
2 fan(s)

Performance

Flash memory
64 MB
Noise level
41.5 dB
Firmware upgradeable
Yes
Mean time between failures (MTBF)
310550.7 h

Power

Power source
AC
Power supply included
Yes
AC input voltage
100 - 240 V
AC input frequency
50/60 Hz
Power consumption (max)
289.7 W
Surge protection
Yes
Surge protection voltage
6 kV

Power over Ethernet (PoE)

Power over Ethernet (PoE)
Yes
Power over Ethernet (PoE) type supported
PoE+
Power over Ethernet plus (PoE+) ports quantity
16
Power over Ethernet (PoE) power per port
30 W
Total Power over Ethernet (PoE) budget
250 W

Operational conditions

Operating temperature (T-T)
-5 - 50 °C
Storage temperature (T-T)
-40 - 70 °C
Operating relative humidity (H-H)
10 - 90%
Storage relative humidity (H-H)
5 - 90%
Heat dissipation
984.88 BTU/h

Weight & dimensions

Width
440 mm
Depth
180 mm
Height
44 mm

Packaging content

Cables included
AC
User guide
Yes
Rack mount kit
Yes

Packaging data

Package type
Box

Certificates

Compliance certificates
CE, Federal Communications Commission (FCC), RoHS

Accessories

License
