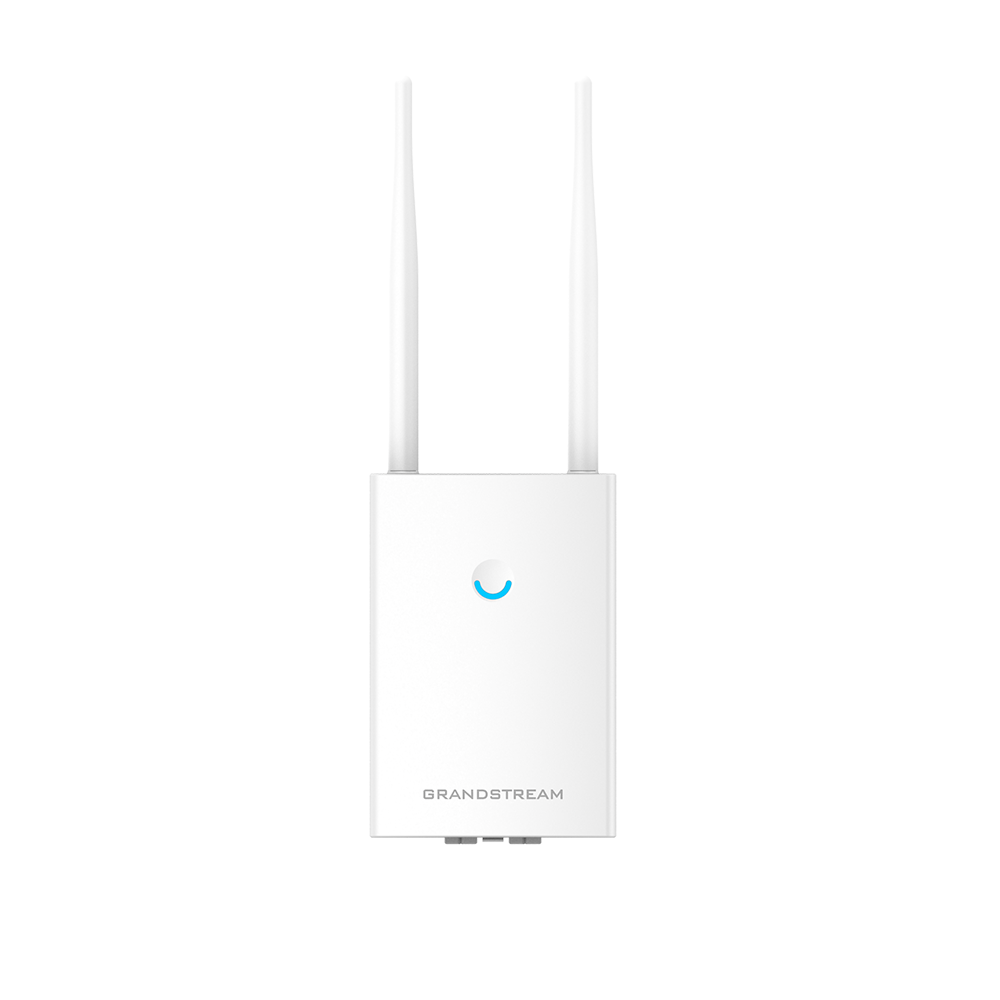

Grandstream Networks GWN7605LR wireless access point 867 Mbit/s White Power over Ethernet (PoE)

The GWN7605LR is equipped with a controller-less distributed network management architecture in which the controller is embedded within the product’s Web user interface for easy administration of locally deployed Wi-Fi APs. The GWN7605LR is also supported by GWN. Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. Powered by market leading technology for advanced QoS, fast roaming, mesh networks, captive portals, support for 100+ concurrent clients and dual Gigabit network ports, the GWN7605LR is an ideal Wi-Fi access point for low-latency jitter-sensitive real-time applications (such as voice/video-over-Wi-Fi devices & applications) in low-to-medium indoor and outdoor user density scenarios.

ON ORDER

SKU: GWN7605LR

Manufacturer: Grandstream

RRP Price €118.94

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
867 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Cabling technology
10/100/1000Base-T(X)
Number of users
100 user(s)
MIMO
Yes
MIMO type
Multi User MIMO
Quality of Service (QoS) support
Yes
Maximum outdoor range
250 m
Receiver sensitivity
2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS9

Security

Security algorithms
WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported
16

Protocols

Supported network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Power

Power over Ethernet (PoE)
Yes
Power consumption (max)
10.16 W

Design

Placement
Wall
Product colour
White
Housing material
Metal
International Protection (IP) code
IP66
LED indicators
Yes

Antenna

Antenna type
External
Antennas quantity
2
Antenna gain level (max)
3.5 dBi

Certificates

Compliance certificates
CE

Weight & dimensions

Width
115 mm
Depth
358.3 mm
Height
45.3 mm
Weight
500 g

Packaging data

Package width
247 mm
Package depth
258 mm
Package height
86 mm
Package weight
655.3 g

Packaging content

Mounting kit
Yes
Quick start guide
Yes

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-30 - 70 °C
Storage temperature (T-T)
-30 - 80 °C

Sustainability

Sustainability compliance
Yes

Accessories

License
