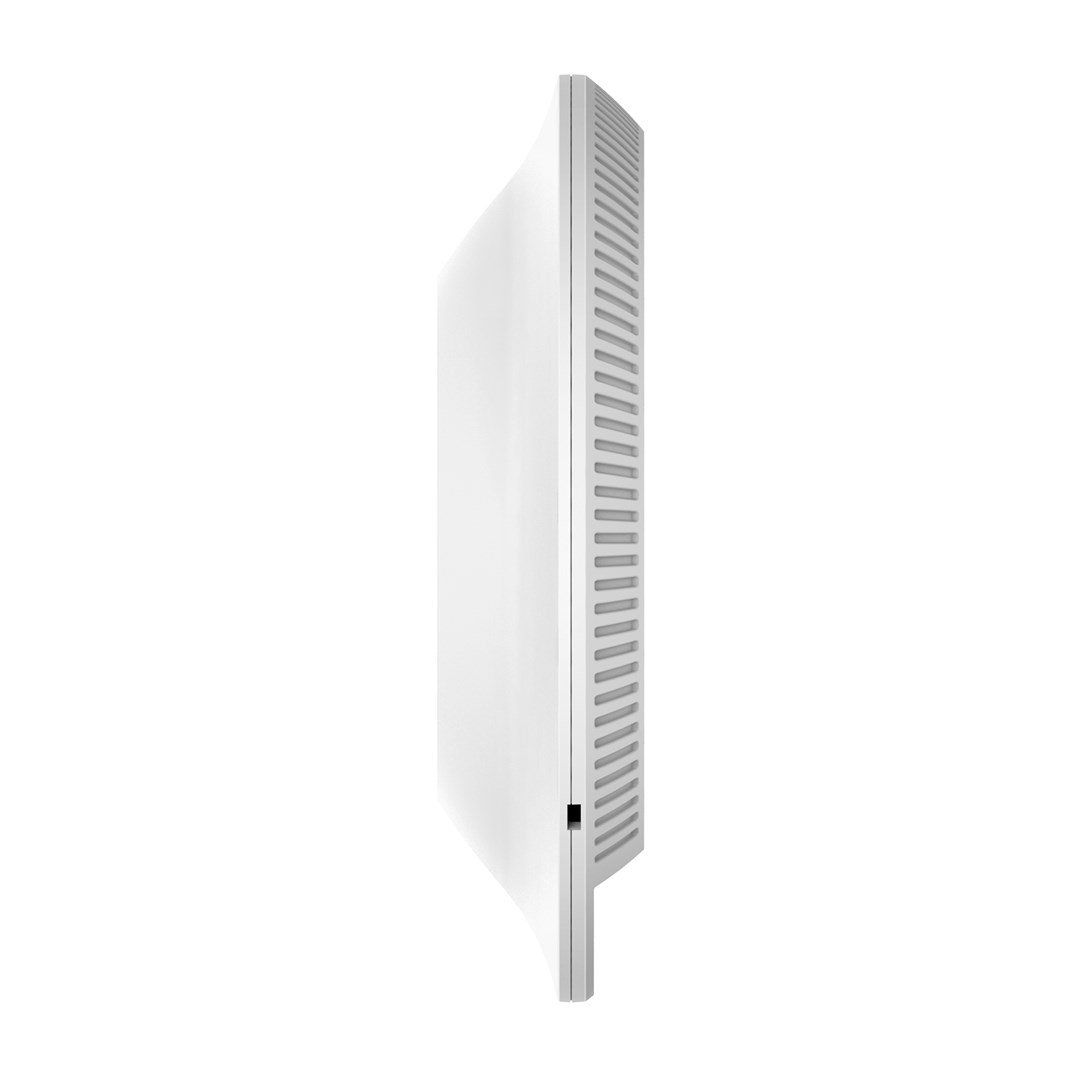

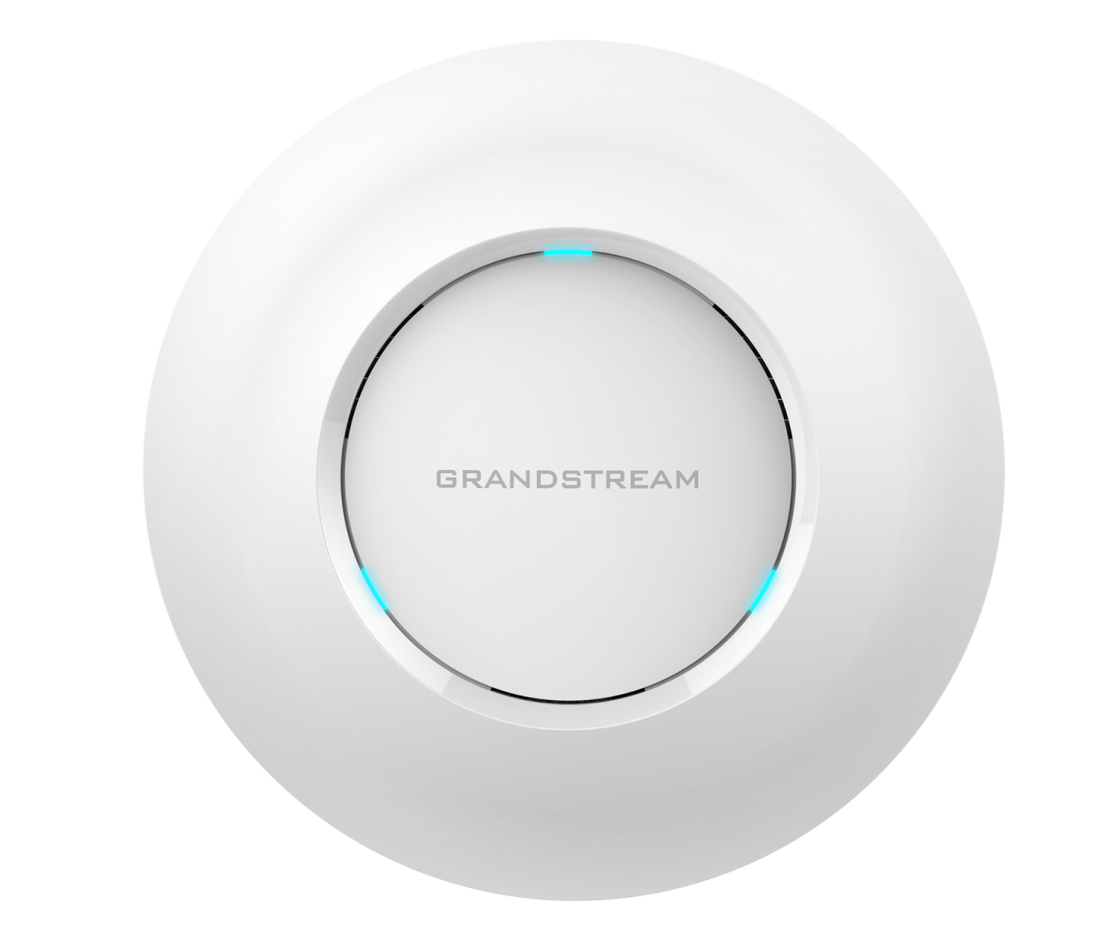

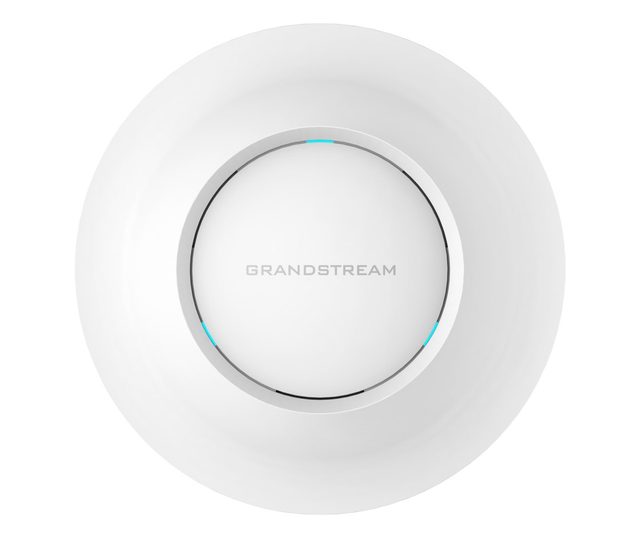

Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)

Name: Grandstream Networks GWN7630 wireless access point 2330 Mbit/s White Power over Ethernet (PoE)
Brand: Grandstream
SKU: GWN7630
Price: 107.05 EUR
Availability: InStock

The GWN7630 is a high-performance 802.11ac Wave-2 Wi-Fi access point for small to medium sized businesses, multiple floor offices, commercial locations and branch offices. It offers dual-band 4×4:4 MU-MIMO technology and a sophisticated antenna design for maximum network throughput and expanded Wi-Fi coverage range. To ensure easy installation and management, the GWN7630 uses a controller-less distributed network management design in which the controller is embedded within the product’s web user interface. The GWN7630 is also supported by GWN.Cloud, Grandstream’s free cloud Wi-Fi management platform. It is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi-capable IP phones. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 200+ concurrent clients per AP and dual Gigabit network ports with PoE/PoE+, the GWN7630 is an ideal Wi-Fi access point for medium wireless network deployments with medium-to-high user density.

83 IN STOCK

SKU: GWN7630

Manufacturer: Grandstream

RRP Price €107.05

Specifications

Features

2.4 GHz

Yes

5 GHz

Yes

Maximum data transfer rate

2330 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 2.484; 5.18 - 5.825 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az

Number of users

200 user(s)

Channel bandwidth

80 MHz

MIMO

Yes

MIMO type

Multi User MIMO

Wi-Fi Multimedia (WMM)/(WME)

Yes

VLAN support

Yes

Quality of Service (QoS) support

Yes

Maximum outdoor range

175 m

Transmitting power

27 dBmW

Receiver sensitivity

2.4G 802.11b: -96dBm@1Mbps, -88dBm@11Mbps; 802.11g: -93dBm @6Mbps, -75dBm@54Mbps; 802.11n 20MHz: -73dBm @MCS7; 802.11n 40MHz:-70dBm @MCS7 5G 802.11a: -92dBm @6Mbps, -74dBm @54Mbps; 802.11ac 20MHz: -67dBm@MCS8; 802.11ac: HT40:- 63dBm @MCS9; 802.11ac 80MHz: -59dBm @MCS

Security

Security algorithms

WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Number of SSID supported

Protocols

Supported network protocols

IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports

Power

Power over Ethernet (PoE)

Yes

Power consumption (max)

16.5 W

Design

Placement

Ceiling, Wall

Product colour

White

Cable lock slot

Yes

Cable lock slot type

Kensington

Reset button

Yes

LED indicators

Status

Antenna

Antenna type

Internal

Antennas quantity

Antenna gain level (max)

5 dBi

Certificates

Certification

FCC, CE, RCM, IC

Weight & dimensions

Width

205.3 mm

Depth

205.3 mm

Height

45.9 mm

Weight

590 g

Packaging data

Package width

258 mm

Package depth

247 mm

Package height

86 mm

Package weight

930 g

Packaging content

Quantity per pack

1 pc(s)

Mounting kit

Yes

Quick start guide

Yes

Operational conditions

Operating relative humidity (H-H)

10 - 90%

Operating temperature (T-T)

0 - 40 °C

Storage temperature (T-T)

-10 - 60 °C

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Grandstream

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

Weight

0.59 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!

Related Products

C9120AX External 802.11ax 4x4:4 MIMO;IOT;BT5;mGig;USB;RHL Wireless

Cisco Catalyst 9120AX SeriesWe are more dependent on our wireless networks than ever before. Additional devices connect to the network every year and the Cisco Catalyst 9120AX Series Access Points will provide a seamless experience anywhere for everyone. Going beyond the Wi-Fi 6 (802.11ax) standard, the 9120AX Series provides integrated security, resiliency, and operational flexibility as well as increased network intelligence.Extending Cisco’s intent-based network and perfect for networks of all sizes, the Cisco Catalyst 9120AX Series scales to the growing demands of IoT while fully supporting the latest innovations and new technologies. Not only that, but the 9120AX Series is the leader in performance, security, and analytics.The Cisco Catalyst 9120AX Series Access Points, paired with Cisco DNA, are enterprise-class products that will address your current and future needs. These access points are the first step in updating your network so that you can take better advantage of all of the features and benefits that Wi-Fi 6 provides.The Cisco Catalyst 9120AX Series Access Points support both Orthogonal Frequency-Division Multiple Access (OFDMA) and multiuser Multiple-Input, Multiple-Output (MU-MIMO), delivering more predictable performance for advanced applications and IoT. Additionally, with up to 2.5 Gbps with NBASE-T and IEEE 802.3bz Ethernet compatibility, the 9120AX Series can seamlessly offload network traffic without any bottlenecks. With Cisco’s Multigigabit technology, you can use your existing Category 5e or 6 cabling to achieve speeds up to 2.5 Gbps, allowing for higher throughputs with minimum cost. And with different antenna choices, you’re able to decide which option works best for you.With the 9120AX Series, you can secure remote workers or the micro-office. Any Cisco Aironet or Catalyst access point can function as an OfficeExtend Access Point (OEAP). With an OEAP, an employee at home or in a temporary micro-office will have access to the corporate SSID and the corporate network without the need to set up a VPN or have any advanced technical know-how.Cisco User Defined Network, a feature available in Cisco DNA Center, allows IT to give end users control of their very own wireless network partition on a shared network. End users can then remotely and securely deploy their devices on this network. Perfect for university dormitories or extended hospital stays, Cisco User Defined Network grants both device security and control, allowing each user to choose who can connect to their network. (Available second half of calendar year 2020.)The Wi-Fi 6 readiness dashboard is a new dashboard in the Assurance menu of Cisco DNA Center. It will look through the inventory of all devices on the network and verify device, software, and client compatibility with the new Wi-Fi 6 standard. After upgrading, advanced wireless analytics will indicate performance and capacity gains as a result of the Wi-Fi 6 deployment. This is an incredible tool that will help your team define where and how the wireless network should be upgraded. It will also give you insights into the access point distribution by protocol (802.11 ac/n/abg), wireless airtime efficiency by protocol, and granular performance metrics.Resilient - steady performance in demanding environmentsNetwork infrastructure that upgrades to Wi-Fi 6 enables devices to get up to a 4x capacity boost to support the additional devices connected to the network as well as the data that they generate. Wi-Fi 6 will offer Multigigabit performance, with seamless connectivity and higher throughput compared to the 802.11ac standard. This means you’ll see your network run more smoothly. With support for BSS coloring, the new standard eases high-density environments by allowing simultaneous transmissions, ultimately increasing network capacity, customer interactions, and value-add services. BSS coloring allows the limited channels in the 2.4 GHz band to have better spectral reuse, benefiting IoT and 2.4-GHz clients.Wi-Fi 6, with better coordination of transit time to and from devices, will also bring about a reduction in latency and a greater reliability, allowing for hundreds of devices per access point. This allows for IoT devices to be reliably deployed at scale. And an overall improved user experience will be seen as well, as Wi-Fi 6 will improve the battery life of devices such as smartphones, tablets, and IoT devices when compared to prior standards. For more details about Wi-Fi 6, please see Cisco’s technical white paper on Wi-Fi 6.Secure infrastructureTrustworthy systems built with Cisco Trust Anchor Technologies provide a highly secure foundation for Cisco products. With the Cisco Catalyst 9100 Access Points, these technologies enable hardware and software authenticity assurance for supply chain trust and strong mitigation against man-in-the-middle attacks that compromise software and firmware. Trust Anchor capabilities include:● Image signing: Cryptographically signed images provide assurance that the firmware, BIOS, and other software are authentic and unmodified. As the system boots, the system’s software signatures are checked for integrity.● Secure Boot: Cisco Secure Boot technology anchors the boot sequence chain of trust to immutable hardware, mitigating threats against a system’s foundational state and the software that is to be loaded, regardless of a user’s privilege level. It provides layered protection against the persistence of illicitly modified firmware.● Cisco Trust Anchor module: A tamper-resistant, strong cryptographic, single-chip solution provides hardware authenticity assurance to uniquely identify the product so that its origin can be confirmed to Cisco. This provides assurance that the product is genuine.Aesthetically redesigned for next-generation enterpriseThe Cisco Catalyst 9100 Access Points are built from the ground up, with a new aerodynamic look and smooth finish, integrating RF excellence and next generation technologies to provide a best-in-class wireless experience without compromise. While packing several high-performance features, the hardware is redesigned to deliver higher efficiencies in a more compact form factor to make visually appealing Wi-Fi deployments commonplace.Cisco DNA supportPairing the Cisco Catalyst 9120AX Series Access Points with Cisco DNA allows for a total network transformation. Cisco DNA allows you to truly understand your network with real-time analytics, quickly detect and contain security threats, and easily provide networkwide consistency through automation and virtualization.Cisco DNA with Software-Defined Access (SD-Access) is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. By decoupling network functions from the hardware, you can build and manage your entire wired and wireless network from a single user interface. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:● Simplified device deployment● Unified management of wired and wireless networks● Network virtualization and segmentation● Group-based policies● Context-based analyticsThe Cisco Catalyst 9120AX Series Access Points support Software-Defined Access, Cisco’s leading enterprise architecture.Working together, the Cisco Catalyst 9120AX Series and Cisco DNA offer such features as:● Cisco DNA Spaces● Cisco Identity Services Engine● Cisco DNA Analytics and AssuranceThe result? Your network stays relevant, becomes digital ready, and is the lifeblood of your organization.

€875.87

Ubiquiti NanoStation AC 1000 Mbit/s White Power over Ethernet (PoE) Wireless

The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.Sleek Industrial DesignThe NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.Dual Ethernet ConnectivityThe NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.Management Wi-Fi RadioEach NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.Improved Surge ProtectionThe NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.Now with airOS®8airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

€124.82

Ubiquiti NanoStation 5AC Loco 1000 Mbit/s White Power over Ethernet (PoE) Wireless

€43.41

Ubiquiti LAP-GPS network antenna MIMO directional antenna 17 dBi Wireless

2x2 MIMO airMAX® ac Sector APThe LiteAP™ ac is an ultra-lightweight airMAX ac Access Point with incredible performance and disruptive pricing.Models: LAP‑120, LAP‑GPSCoverageThe LiteAP ac features a 2x2 MIMO antenna and communicates with multiple airMAX ac CPEs within a 120° coverage area.GPS SynchronizationLiteAPTM GPS supports GPS Sync for faster, more scalable, carrier-class networks, with 90% higher throughout than competing solutions.Now with airOS®airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.Lightweight and Sleek DesignThe LiteAP ac features a lightweight antenna with an integrated radio in a sleek and highly efficient design.Installation FlexibilityFeaturing the freedom of three-axis alignment, the LiteAP ac fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

€102.13

Ubiquiti UniFi HD In-Wall 1733 Mbit/s White Power over Ethernet (PoE) Wireless

Integrated Gigabit SwitchFour ports are available for bridging – one of which offers PoE passthrough when the AP is powered by an 802.3at PoE+ switch.Superior Processing PowerThe UniFi IW HD AP is capable of complex operations (guest control, filtering, and other resource-intensive tasks) that may slow down a lesser-equipped AP.Power over Ethernet (PoE) StandardThe UniFi IW HD AP can be conveniently powered by an 802.3af or 802.at compliant switch. We recommend powering your UniFi devices with a UniFi PoE Switch.Quick and Simple InstallationThe UniFi IW HD AP has a refined industrial design and can be easily installed using the included mounting hardware.Customizable with Various SkinsOptional skins (sold separately) allow the UniFi IW HD AP to discreetly blend into its setting.UniFi ControllerUse the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

€172.20

Ubiquiti UAP-AC-M-PRO 1300 Mbit/s White Power over Ethernet (PoE) Wireless

Scalable Enterprise Wi-Fi ManagementUniFi is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi AC Mesh APs have a refined industrial design and can be easily installed using the included mounting hardware.Easily accessible through any standard web browser, the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.FeaturesSave money and save time UniFi comes bundled with a non-dedicated software controller that can be deployed on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the option of using the UniFi Cloud Key with built-in software.Powerful HardwareThe UniFi AC Mesh APs feature Wi-Fi 802.11AC with Plug & Play Mesh technology.Intuitive UniFi Controller Software Configure and manage your APs with the easy-to-learn user interface.Expandable Unlimited scalability: build wireless networks as big or small as needed. Start with one and expand to thousands while maintaining a single unified management system.

€989.92

Ubiquiti UAP-AC-M-PRO wireless access point 1300 Mbit/s White Power over Ethernet (PoE) Wireless

€194.77

Ubiquiti AirFiber AF-5XHD 1000 Mbit/s White Power over Ethernet (PoE) Wireless

The New Standard for WISP Backhaul PerformanceTrue 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’sComplete Custom Hardware for the WISP, right down to the SiliconOur core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.Game-Changing LTU TechnologySpectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.IP-67 DurabilityairFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.

€413.90

Cisco Catalyst 9120 Series Wireless

€875.87

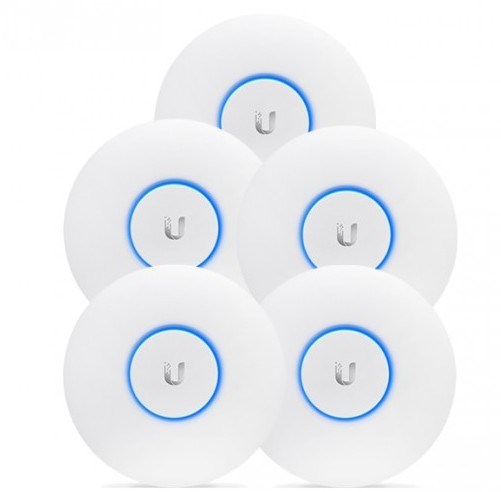

Ubiquiti UAP-AC-PRO-5 wireless access point 1300 Mbit/s White Wireless
