Home > Wireless > Grandstream > GWN7660E

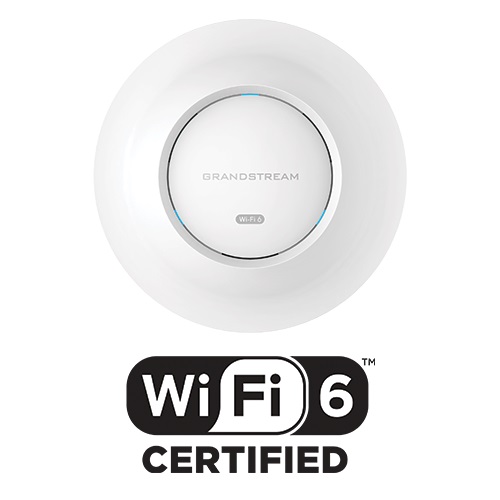

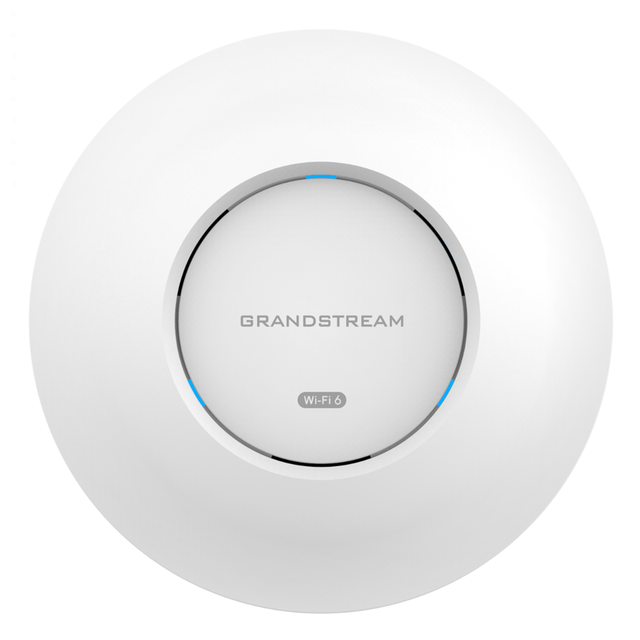

GWN7660E - Wireless by Grandstream

The GWN7660E is an enterprise-grade 802.11ax Wi-Fi 6 access point that allows businesses to build next-generation Wi-Fi networks for high-density environments. It offers 2x2:2 MU-MIMO technology on the 2.4G band and 3x3:2 MU-MIMO on the 5G band

ON ORDER

RRP Price €92.61

  loading...
Register for Discounts

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Maximum data transfer rate
1770 Mbit/s
Maximum data transfer rate (2.4 GHz)
573.5 Mbit/s
Maximum data transfer rate (5 GHz)
1201 Mbit/s
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
VLAN support
Yes
Quality of Service (QoS) support
Yes
Maximum indoor range
175 m

Security

Security algorithms
WEP, WPA, WPA2, WPA2-PSK, WPA3
Number of SSID supported
32

Protocols

Supported network protocols
IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM

Ports & interfaces

Ethernet LAN (RJ-45) ports
2

Power

Power over Ethernet (PoE)
Yes
Power consumption (max)
9 W

Design

Placement
Wall
Product colour
White
Cable lock slot
Yes
Cable lock slot type
Kensington
LED indicators
Status

Antenna

Antenna type
Internal
Antenna gain level (max)
4 dBi

Certificates

Certification
FCC, CE, RCM, IC

Weight & dimensions

Width
180.4 mm
Depth
180.4 mm
Height
40.8 mm
Weight
443 g

Packaging data

Package width
228.5 mm
Package depth
220 mm
Package height
79 mm
Package weight
774 g

Operational conditions

Operating relative humidity (H-H)
10 - 90%
Operating temperature (T-T)
0 - 45 °C
Storage temperature (T-T)
-10 - 60 °C

Logistics data

Harmonized System (HS) code
85176990
GWN7660E - Wireless by Grandstream

Description

Manufacturer

Grandstream

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.443 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
