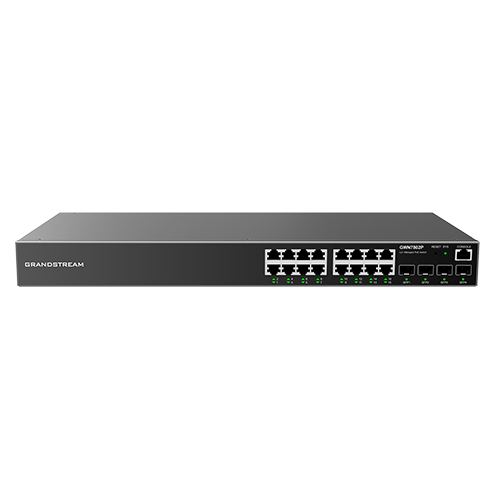

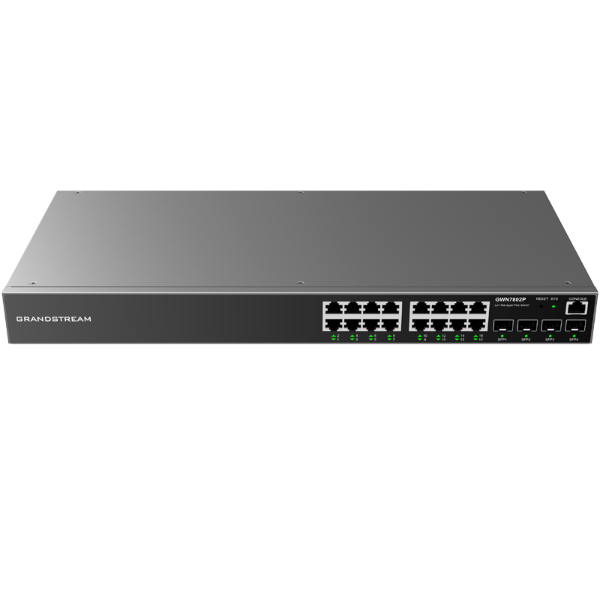

Grandstream Networks GWN7802P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black

Name: Grandstream Networks GWN7802P network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 2U Black
Brand: Grandstream
SKU: GWN7802P
Price: 276.82 EUR
Availability: OutOfStock

The GWN7800 series are Layer 2+ managed network switches that allow small-to-medium enterprises to build scalable, secure, high performance, and smart business networks that are fully manageable. It supports advanced VLAN for flexible and sophisticated traffic segmentation, advanced QoS for prioritization of network traffic, IGMP Snooping for network performance optimization, and comprehensive security capabilities against potential attacks. The PoE models
provide smart dynamic PoE output to power IP phones, IP cameras, Wi-Fi access points and other PoE endpoints. The GWN7800 series can be managed in a number of ways, including the local web user interface of the GWN7800 series switch. The series is also supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform. The enterprise-grade GWN7800 series are the ideal
managed network switches for small-to-medium businesses.

ON ORDER

SKU: GWN7802P

Manufacturer: Grandstream

RRP Price €276.82

Specifications

Management features

Switch type

Managed

Switch layer

L2+

Quality of Service (QoS) support

Yes

Web-based management

Yes

Traffic shaping

Yes

Configuring Location Settings (CLI)

Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Installed SFP modules quantity

Network

Networking standards

IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

10G support

Yes

Port mirroring

Yes

Rate limiting

Yes

Ethernet LAN data rates

1000 Mbit/s

VLAN support

Yes

Virtual LAN features

Port-based VLAN, Voice VLAN

Data transmission

Switching capacity

40 Gbit/s

Forwarding rate

29.76 Mpps

Packet buffer memory

4.1 MB

Security

DHCP features

DHCP relay, DHCP server

IGMP snooping

Yes

Security algorithms

SNMP

MAC address filtering

Yes

SSH/SSL support

Yes

Authentication type

RADIUS, TACACS+

Queue scheduling algorithms

SP, WFQ, WFQ+SP, WRR+SP

MAC address entries

Dynamic MAC address entries, Static MAC address entries

Multicast features

Multicast support

Yes

Protocols

Supported network protocols

Pv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1d, IEEE 802.1s

Design

Rack mounting

Yes

Stackable

Yes

Form factor

Product colour

Black

LED indicators

Yes

Wall mountable

Yes

Performance

Built-in processor

Yes

Power

Power source

Power supply included

Yes

Power over Ethernet (PoE)

Yes

Power over Ethernet plus (PoE+) ports quantity

Total Power over Ethernet (PoE) budget

240 W

Operational conditions

Operating temperature (T-T)

0 - 45 °C

Storage temperature (T-T)

-10 - 60 °C

Operating relative humidity (H-H)

10 - 90%

Weight & dimensions

Width

200 mm

Depth

440 mm

Height

44 mm

Weight

3 kg

Packaging content

Cables included

Rack mount kit

Yes

Description

Manufacturer

Grandstream

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

3 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download

Accessories

No Accessories Found!

License

No License Found!
