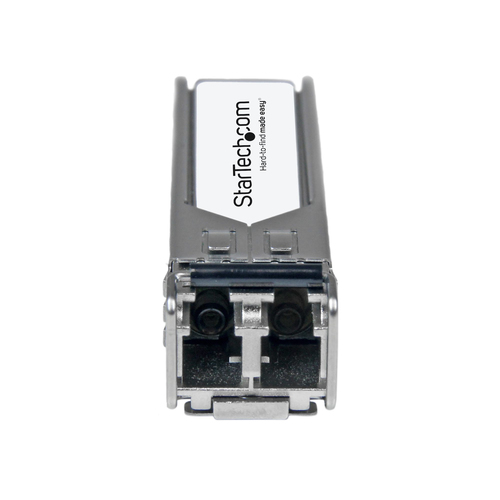

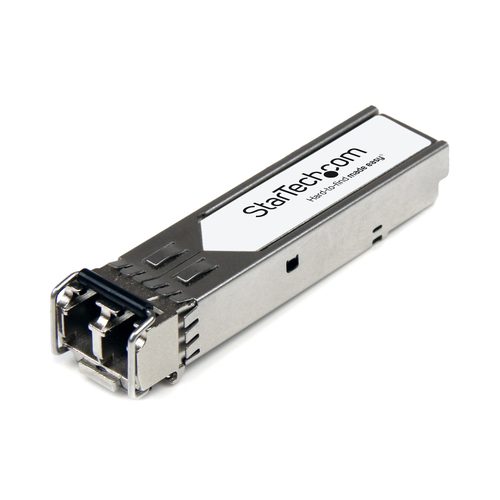

StarTech.com HPE JG234A Compatible SFP+ Module - 10GBASE-ER - Single Mode Fiber (SMF) - 10GE Gigabit Ethernet SFP+ - LC 40 km - 1550nm - DDM HPE 5120, 5500, 5800

10 Gbps | Single Mode Fiber | LC | 40 km (24.8 mi) | Lifetime Warranty

The JG234A-ST is a HPE JG324A compatible fiber transceiver module that has been designed, programmed and tested to work with HPE brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 10BASE-ER compliant networks, with a maximum distance of up to 40 km (24.8 mi).

Technical Specifications:

• Wavelength: 1550nm
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode
• Connection Type: LC
• Maximum Transfer Distance: 40 km (24.8 mi)
• MTBF: 426,514,897 hours
• Power Consumption:
• Digital Diagnostics Monitoring (DDM): Yes

This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: JG234A-ST

Manufacturer: StarTech.com StarTech.com

RRP Price €3,104.89

Specifications

Performance

SFP transceiver type
Fiber optic
Maximum data transfer rate
10000 Mbit/s
Interface type
SFP+
Single-mode fiber (SMF) supported
Yes
Multi-mode fiber (MMF) supported
No
Fiber optic connector
LC
SFP transceiver standard
ER
Maximum transfer distance
40000 m
Wavelength
1550 nm
Fiber ethernet cabling technology
10GBASE
Digital Diagnostics Monitoring (DDM)
Yes

Features

Product colour
Silver
Hot-swap
Yes
Mean time between failures (MTBF)
426514897 h
Brand compatibility
HP
Compatible products
JG234A

Power

Power consumption (typical)
1.6 W

Certificates

Compliance certificates
CE, RoHS

Weight & dimensions

Width
58.4 mm
Depth
13.9 mm
Height
13.7 mm
Weight
24 g

Packaging content

Quantity per pack
1 pc(s)

Packaging data

Package width
90 mm
Package depth
115 mm
Package height
31 mm
Package weight
50 g

Logistics data

Master (outer) case width
90 mm
Master (outer) case length
115 mm
Harmonized System (HS) code
85369010
Master (outer) case height
31 mm
Products per master (outer) case
1 pc(s)
