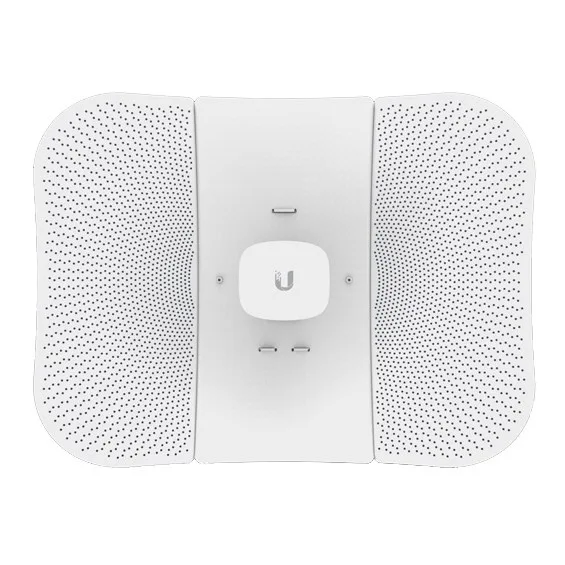

Ubiquiti LiteBeam AC Network bridge 450 Mbit/s White

Name: Ubiquiti LiteBeam AC Network bridge 450 Mbit/s White
Brand: Ubiquiti
SKU: LBE-5AC-GEN2
Price: 68.08 EUR
Availability: InStock

The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds – no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.

108 IN STOCK

SKU: LBE-5AC-GEN2

Manufacturer: Ubiquiti

RRP Price €68.08

Specifications

Data transmission

Maximum data transfer rate

450 Mbit/s

Antenna

Antenna gain level (max)

23 dBi

Wireless LAN features

Frequency band

2.412 - 2.462, 5.15 - 5.875; 5.15 - 5.25; 5.25 - 5.35; 5.47 - 5.725; 5.725 - 5.85 GHz

Modulation

16-QAM, 64-QAM, 256-QAM, BPSK, QPSK

Network

Ethernet LAN

Yes

Ports & interfaces

Ethernet LAN (RJ-45) ports

Security

Security algorithms

WPA2

Management features

Web-based management

Yes

Features

Product type

Network bridge

Material

Plastic

Product colour

White

LED indicators

LAN, Power

Internal memory

64 MB

Power

Power over Ethernet (PoE)

Yes

Operational conditions

Operating temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

-40 - 158 °F

Operating relative humidity (H-H)

5 - 95%

Certificates

Certification

CE, FCC, IC

Weight & dimensions

Dimensions (WxDxH)

358 x 271.95 x 272.5 mm

Weight

980 g

Logistics data

Harmonized System (HS) code

85176990

Description

Manufacturer

Ubiquiti

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

108

Weight

0.98 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
