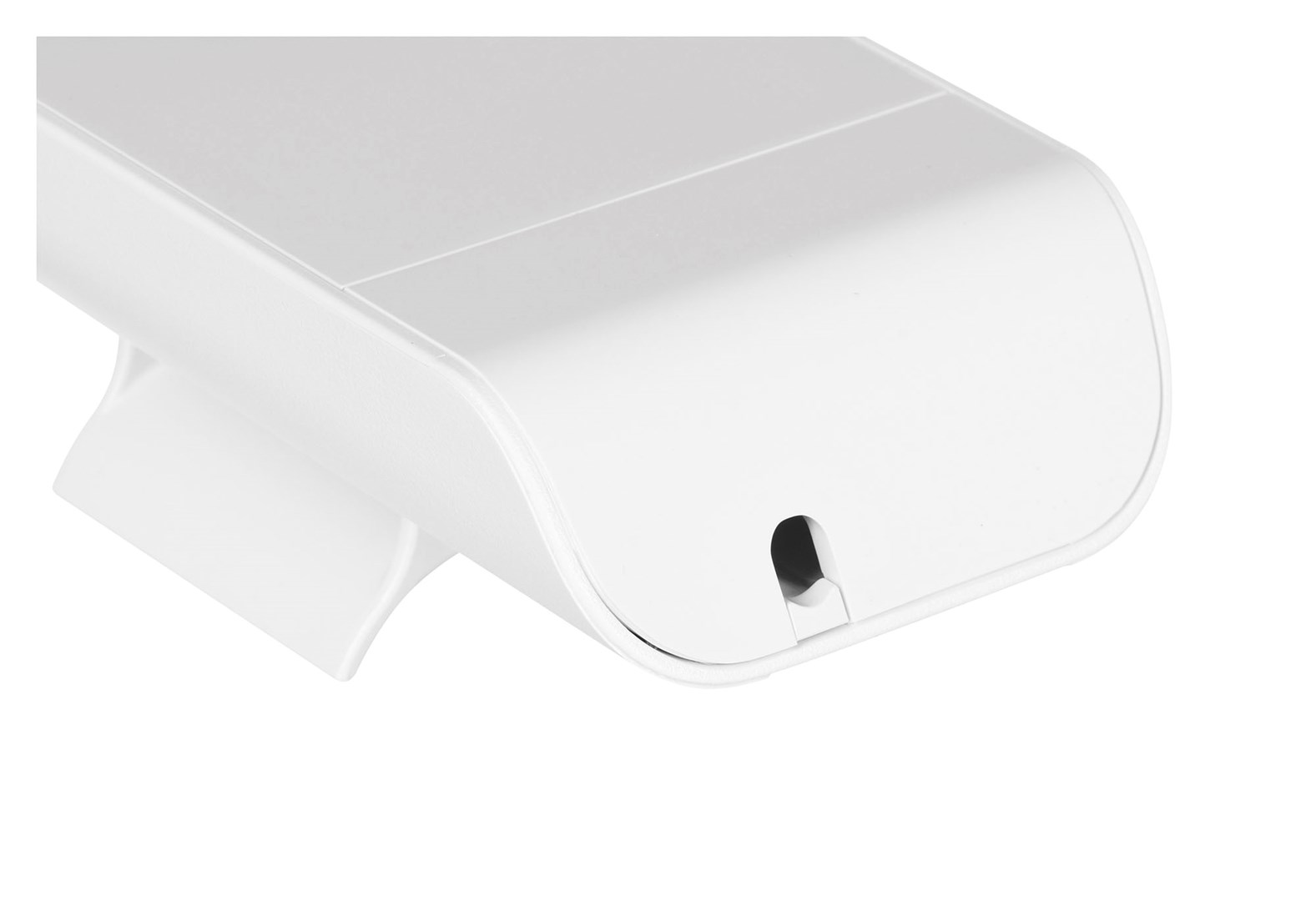

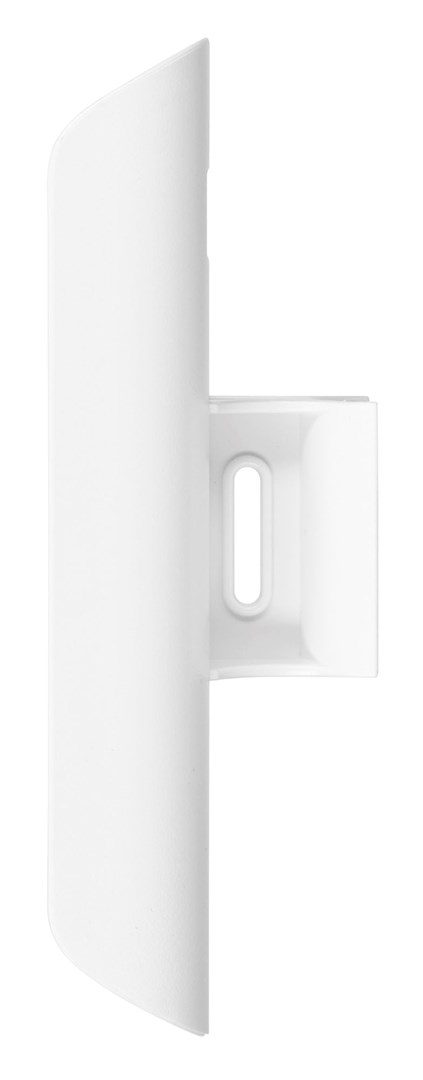

Ubiquiti LocoM5 150 Mbit/s

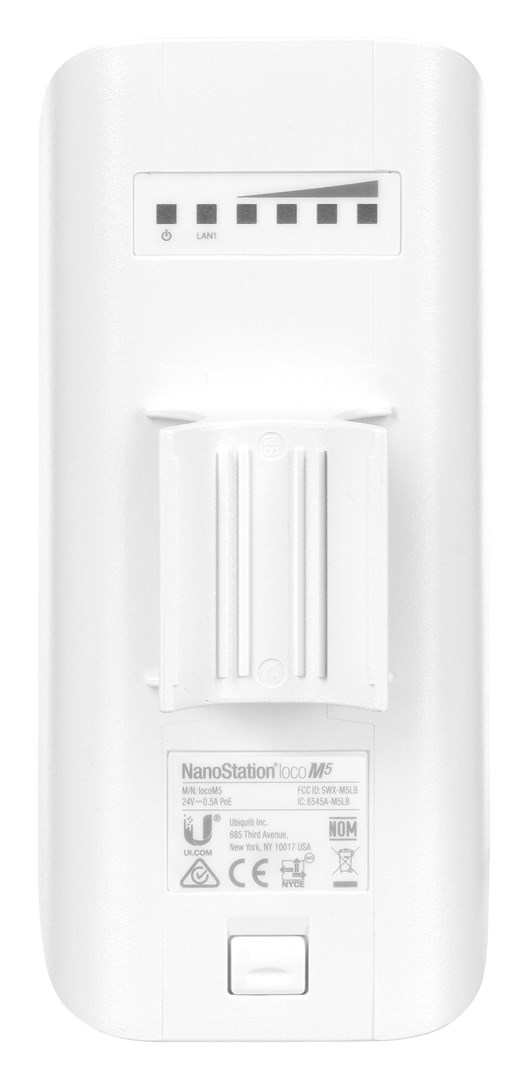

NanoStation Loco M
The NanoStation M combines Powerful airMAX CPE radio and MIMO antenna array performance in a compact form factor.

airMAX TDMA Protocol
airMAX M series Technology provides performance improvements in latency, throughput, & scalability compared to other outdoor systems in its class.

Powerful Software Features
Powered by Ubiquiti's powerful airOS loaded with features and optimizations for outdoor wireless performance, Ubiquiti's airMAX platform also features airView Spectrum Analysis and airControl central device management.

World Class Antenna Design
Ubiquiti's Antenna R&D team applied their years of experience in celular basestation antenna design in developing the revolutionary airMAX.

127 IN STOCK

SKU: LOCOM5

Manufacturer: Ubiquiti Ubiquiti

RRP Price €71.35

Specifications

Data transmission

Maximum data transfer rate
150 Mbit/s
Supported data transfer rates
10/100/150 Mbit/s

Antenna

Antenna design
MIMO
Antenna gain level (max)
13 dBi

Wireless LAN features

Frequency band
5.170 - 5.875 GHz

Network

Ethernet LAN
Yes
Networking standards
IEEE802.3, IEEE802.3u
Cabling technology
10/100Base-T(X)

Ports & interfaces

Connectivity technology
Wired

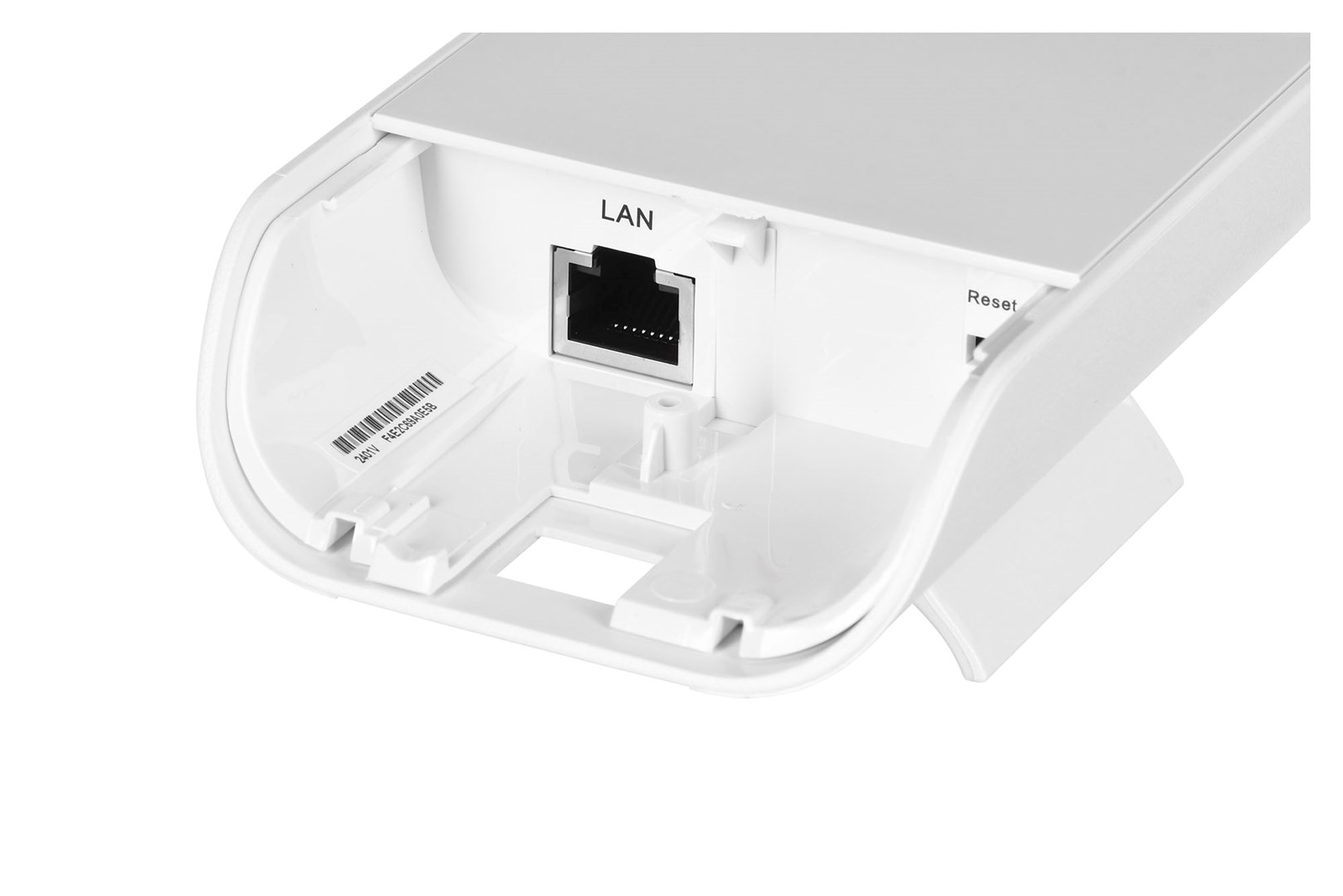

Ethernet LAN (RJ-45) ports
1

Management features

Data link protocols
TCP/IP, MIMO TDMA

Power

Power consumption (typical)
5.5 W

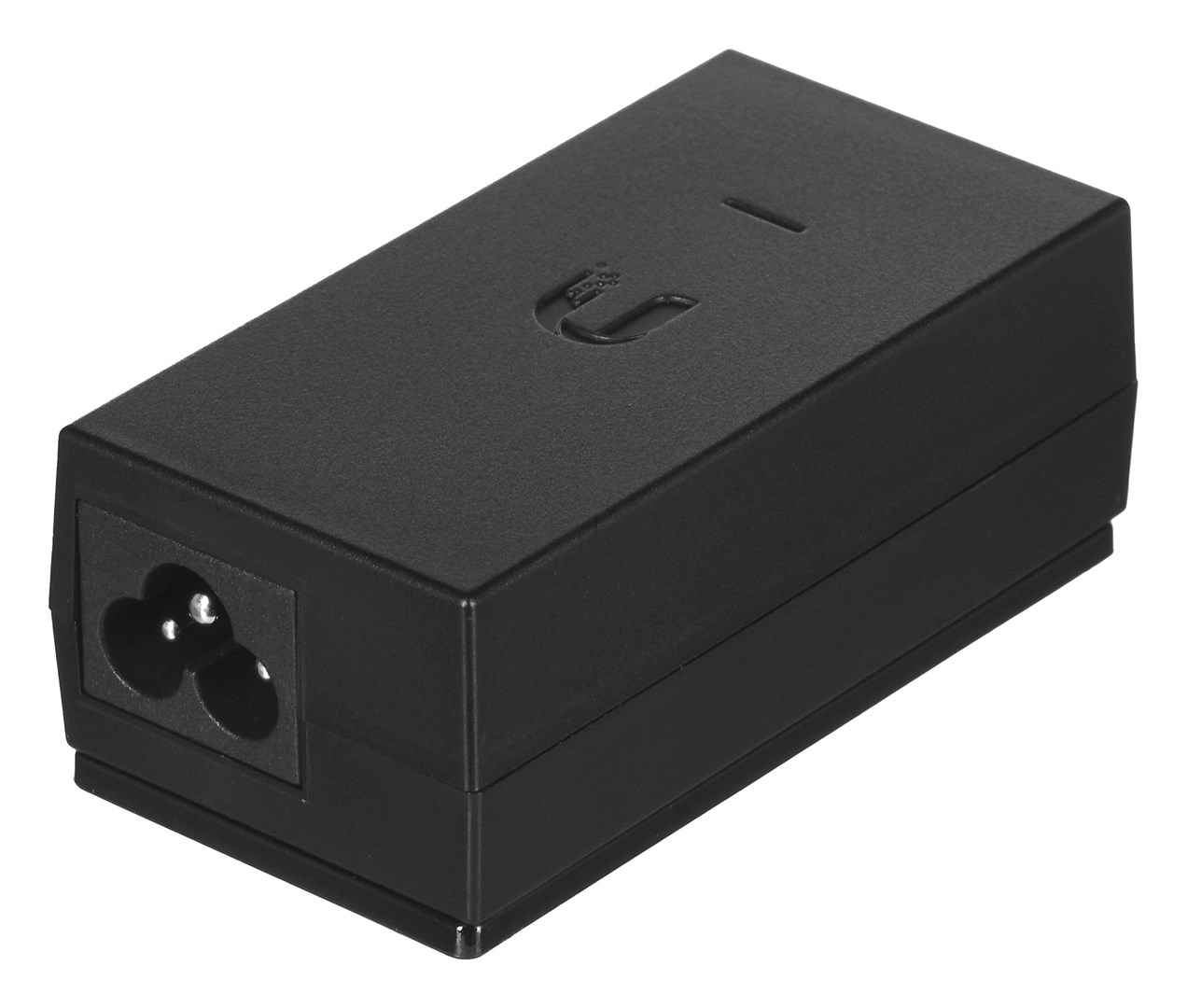

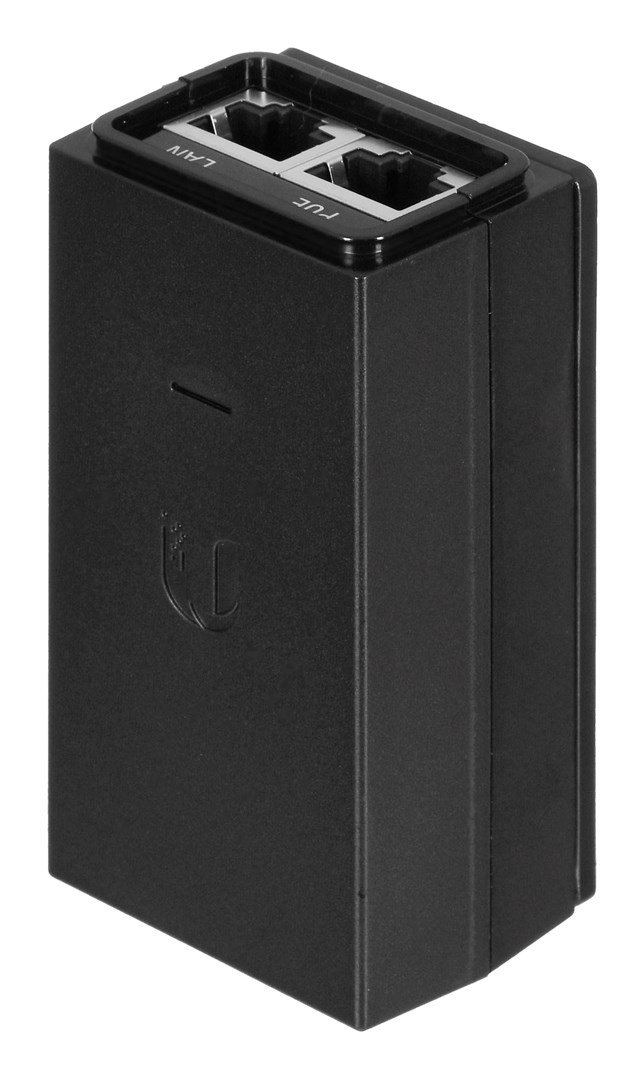

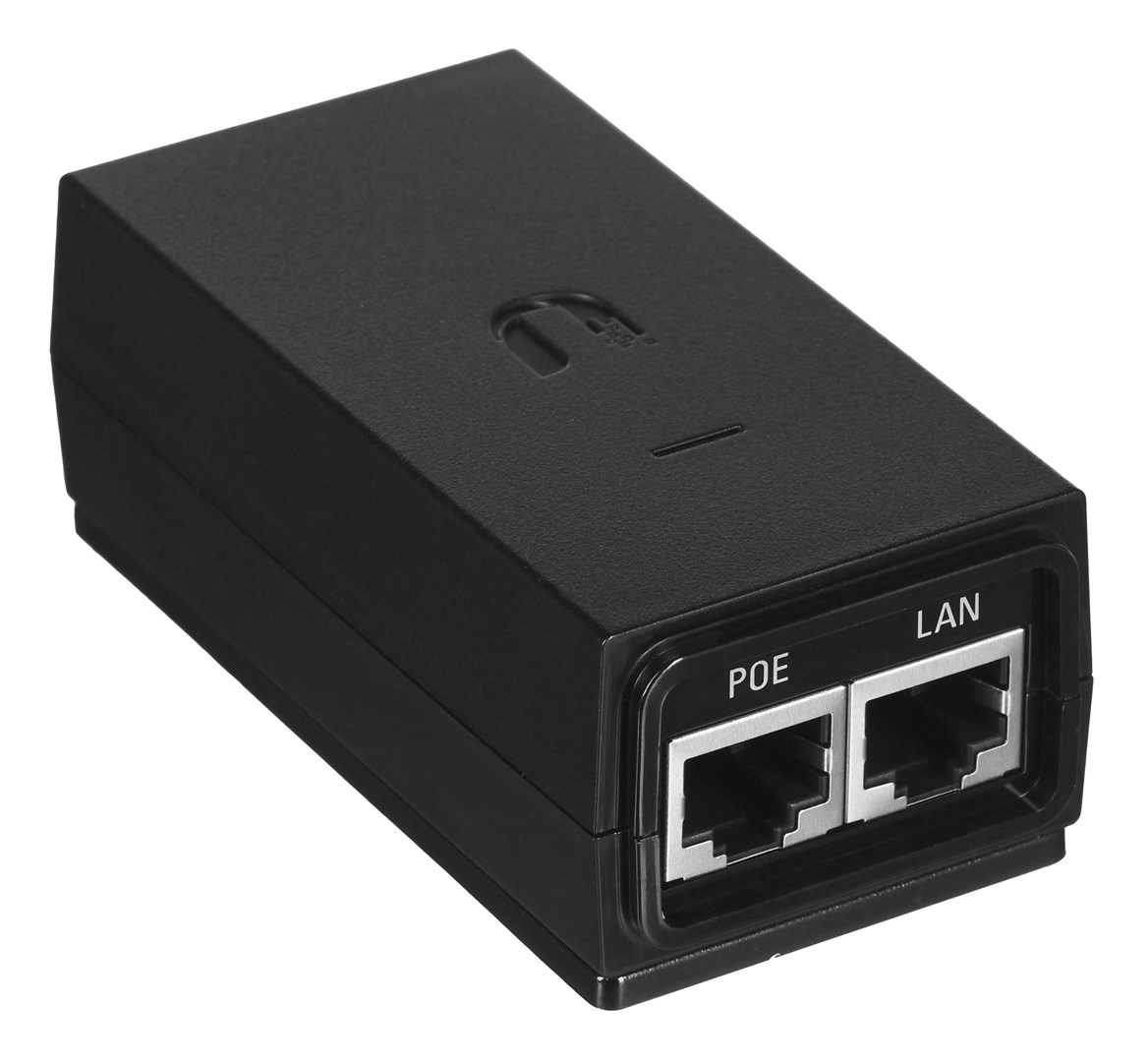

Power over Ethernet (PoE)
Yes
Power requirements
24V, 0.5A

Operational conditions

Operating temperature (T-T)
-30 - 75 °C
Operating relative humidity (H-H)
5 - 95%

Certificates

Certification
FCC, IC, CE, RoHS

Weight & dimensions

Dimensions (WxDxH)
80 x 31 x 163 mm
Weight
180 g

Logistics data

Harmonized System (HS) code
85176990
