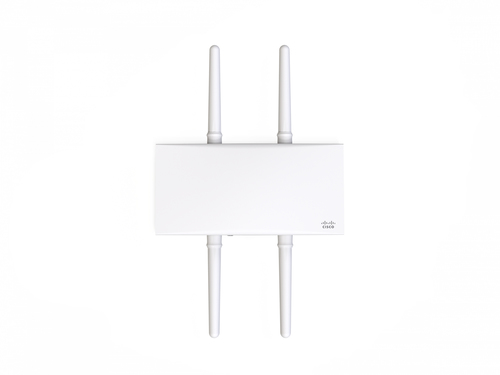

Meraki MR86 Wi-Fi 6 Outdoor AP

Ideal use cases High-density and challenging RF stadium, arena, and open-air deployments Harsh, rugged, and outdoor environments Voice, video, and performance-intensive networks Hardware features IP67 rated, tested for dust, shock, vibration, and moisture 4 radios: 2.4 and 5 GHz, dual-band WIDS/WIPS and Bluetooth Low Energy (BLE) 4-stream UL/DL MU-MIMO 802.11ax, up to 3.55 Gbps dual-aggregate throughput 1 x Multigigabit Ethernet port, PoE: 802.3at Cloud management Network-wide visibility and control Self-provisioning for rapid deployment Automatic reporting Seamless firmware updates Enterprise security 802.1X and native Active Directory integration Air Marshal: real-time WIPS with forensics Stateful Layer 3-7 firewall Identity-based group policies Built-in antivirus scan (NAC) Built-in Umbrella DNS Security* Adaptive Policy automated segmentation** Guest access 1-click secure guest access Guest isolation firewall Customizable splash pages Integrated Facebook WiFi login RF optimization Dual-concurrent radios with MU-MIMO support, radios optimized for rate-vs-range performance Third radio dedicated to security and RF management Built-in real-time RF specturm view Cloud-based, automatic RF optimization Traffic Analytics Classifies hundreds of applications Create per-application and per-device bandwidth limits Prioritize productivity apps Restrict recreational traffic Location Analytics Measure visitor capture rate, visit length, and repeat visit rate Measure visitor trends over time and compare performance across locations Enable location services through integrated iBeacon functionality

ON ORDER

SKU: MR86-HW

Manufacturer: Cisco Cisco

RRP Price €1,300.15

Specifications

Features

2.4 GHz
Yes
5 GHz
Yes
Ethernet LAN data rates
100,1000,2500 Mbit/s
Networking standards
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
MIMO
Yes
MIMO type
Multi User MIMO
VLAN support
Yes
Virtual LAN features
Tagged VLAN
Maximal-Ratio Combining (MRC)
Yes

Security

Security algorithms
WPA, WPA2-Enterprise, WPA2-PSK

Ports & interfaces

Ethernet LAN (RJ-45) ports
1

Power

Power over Ethernet (PoE)
Yes

Design

Placement
Pole, Wall
Product colour
White
International Protection (IP) code
IP67

Antenna

Antenna type
Internal
Antenna connector type
N-type

Weight & dimensions

Width
300 mm
Depth
153 mm
Height
55 mm
Weight
1.5 kg

Packaging content

Quantity per pack
1 pc(s)

Operational conditions

Operating relative humidity (H-H)
5 - 95%
Operating temperature (T-T)
-40 - 55 °C

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
