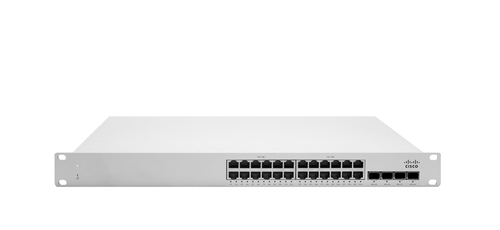

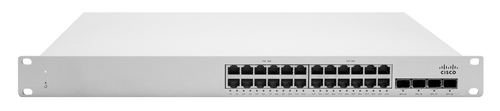

Cisco Meraki MS250-24 L3 Stck Cld-Mngd 24x GigE Switch

Meraki cloud-managed switches feature ease of multi-site management through a dashboard used to manage the entire Meraki portfolio. Meraki switches feature excellent tools for reducing TCO: zero-touch configuration and remote troubleshooting.

- General purpose switch for campus or branch
- Physical and virtual stacking
- Redundant power
- Dynamic routing

ON ORDER

SKU: MS250-24-HW

Manufacturer: Cisco Cisco

RRP Price €4,577.96

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
24
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP+ module slots quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1w
Port mirroring
Yes
Flow control support
Yes
Broadcast storm control
Yes
Auto MDI/MDI-X
Yes
Spanning tree protocol
Yes
VLAN support
Yes
Number of VLANs
4095

Data transmission

Switching capacity
128 Gbit/s
MAC address table
16000 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
9600

Security

DHCP features
DHCP server, DHCP client
Access Control List (ACL)
Yes
IGMP snooping
Yes
Security algorithms
802.1x RADIUS

Multicast features

Multicast support
Yes

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey

Power

Power supply included
Yes
Number of power supply units
1
AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (typical)
14 W
Power consumption (max)
27 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
484.6 mm
Depth
416 mm
Height
43.8 mm
Weight
4.5 kg

Logistics data

Harmonized System (HS) code
85176990
