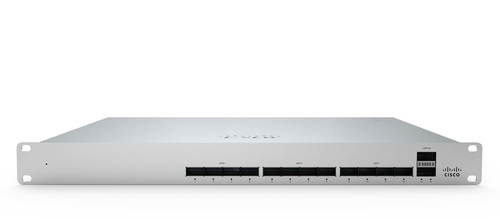

Cisco Meraki MS450-12 network switch Managed L3 1U Grey

HIGH-BANDWIDTH AGGREGATION SWITCHING
The Cisco Meraki MS450 brings powerful high-bandwidth switching to the aggregation layer. The 40G fiber aggregation
switch with 100G uplinks adopts the benefits of the cloud with simplified management, reduced complexity, and network-wide visibility.

EXPANDING CLOUD MANAGEMENT TO THE CAMPUS
Meraki aggregation switches are built from the ground up to be easy to manage without compromising the power and flexibility traditionally found in enterprise-class switches.

To bring up a Meraki switch, simply plug it in. Meraki switches do not require CLI for switch configuration or port management.

Meraki’s centralized management gives administrators granular visibility into their network. The dashboard helps you keep track of every configuration change in your network with detailed event and change logs.

INDUSTRY-LEADING CLOUD MANAGEMENT
Cloud management has a number of benefits that make it easier to build campus networks

ON ORDER

SKU: MS450-12-HW

Manufacturer: Cisco Cisco

RRP Price €15,865.46

Specifications

Management features

Switch type
Managed
Switch layer
L3
Quality of Service (QoS) support
Yes
Web-based management
Yes
System event log
Yes

Ports & interfaces

QSFP+ module slots quantity
12
Console port
RJ-45
QSFP28 ports quantity
4

Network

Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad
Broadcast storm control
Yes
VLAN support
Yes

Data transmission

Switching capacity
400 Gbit/s
Forwarding rate
654.76 Mpps
MAC address table
64000 entries

Security

DHCP features
DHCP client, DHCP server
IGMP snooping
Yes

Multicast features

Multicast support
Yes

Protocols

Management protocols
DHCP, SNMPD

Design

Rack mounting
Yes
Stackable
Yes
Form factor
1U
Product colour
Grey

Performance

Mean time between failures (MTBF)
436776 h

Power

AC input voltage
100 - 240 V
AC input frequency
47/63 Hz
Power consumption (typical)
57 W
Power consumption (max)
138 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 45 °C
Operating relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
484.6 mm
Depth
478.8 mm
Height
43.7 mm
Weight
6.26 kg

Certificates

Certification
CSA (US), IC (Canada), CE (Europe), C-Tick (Australia/New Zealand), RoHS

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
