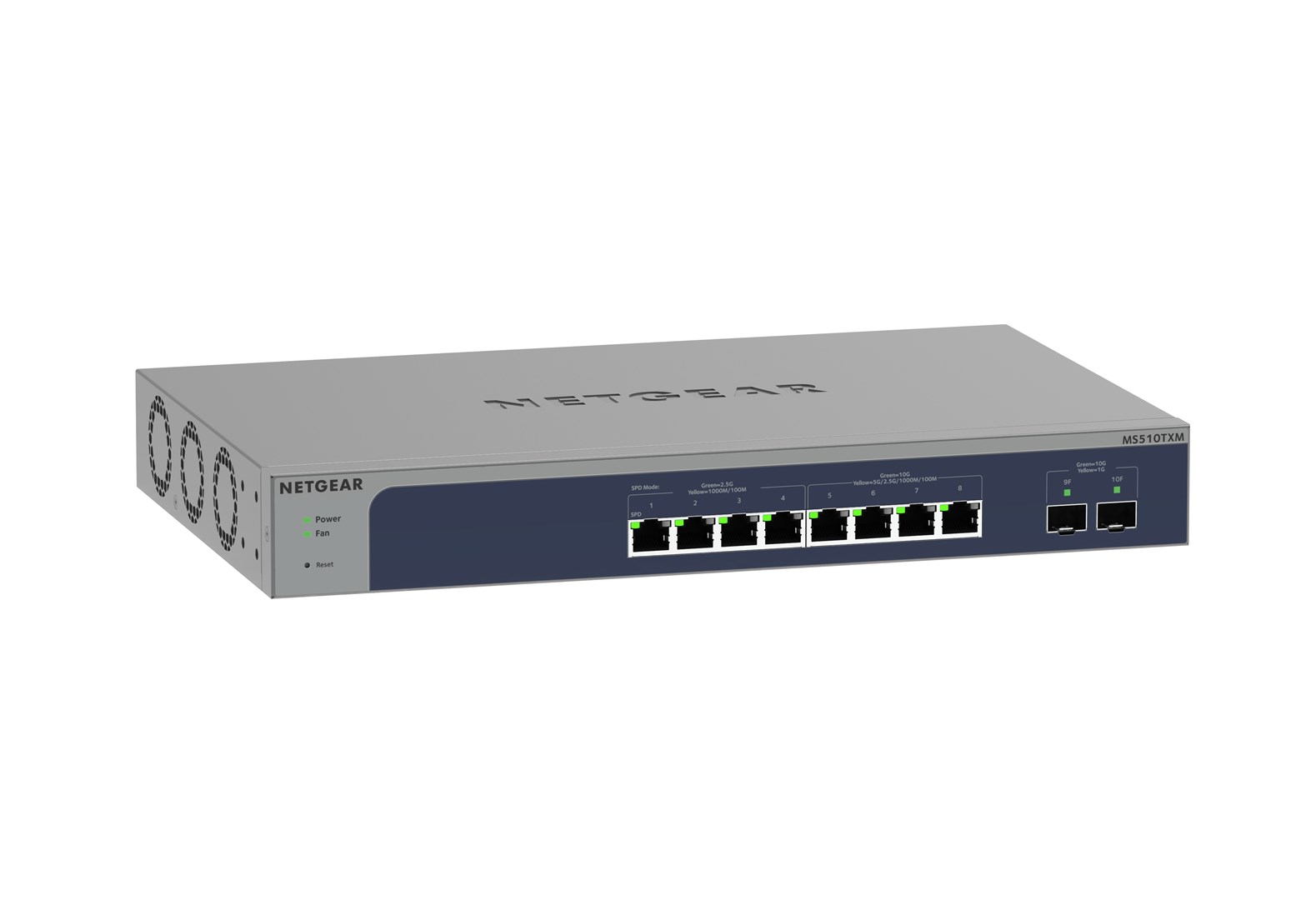

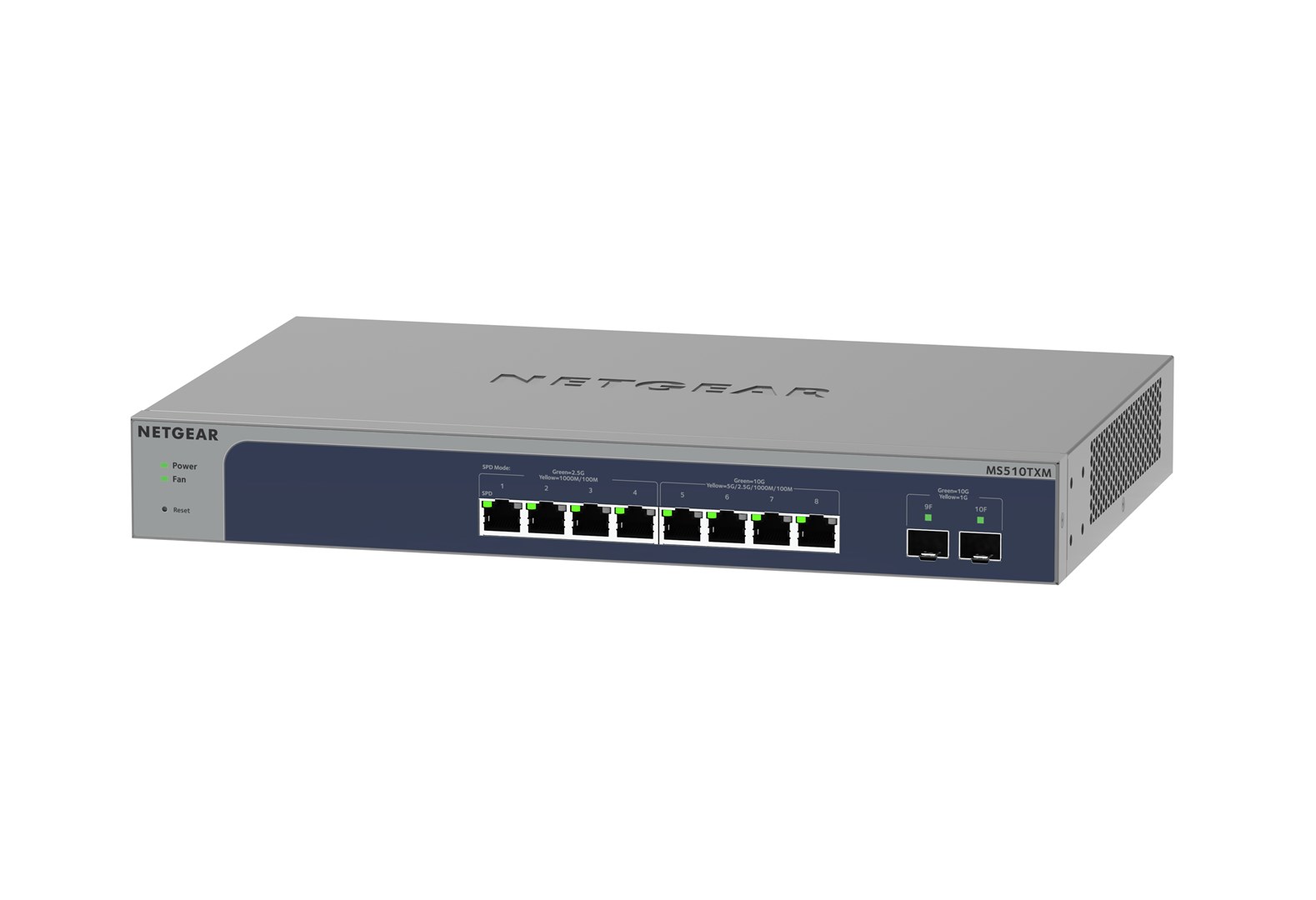

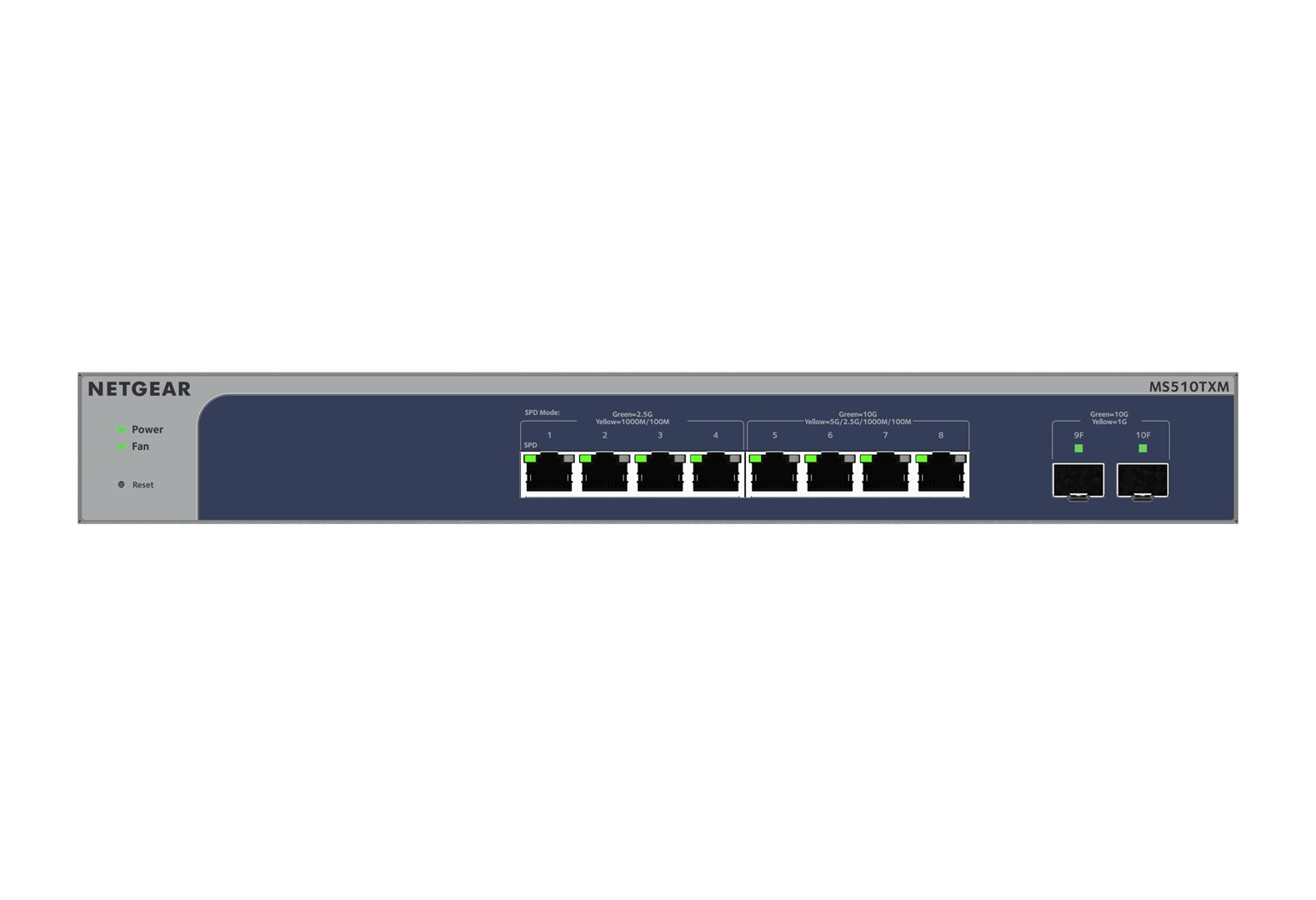

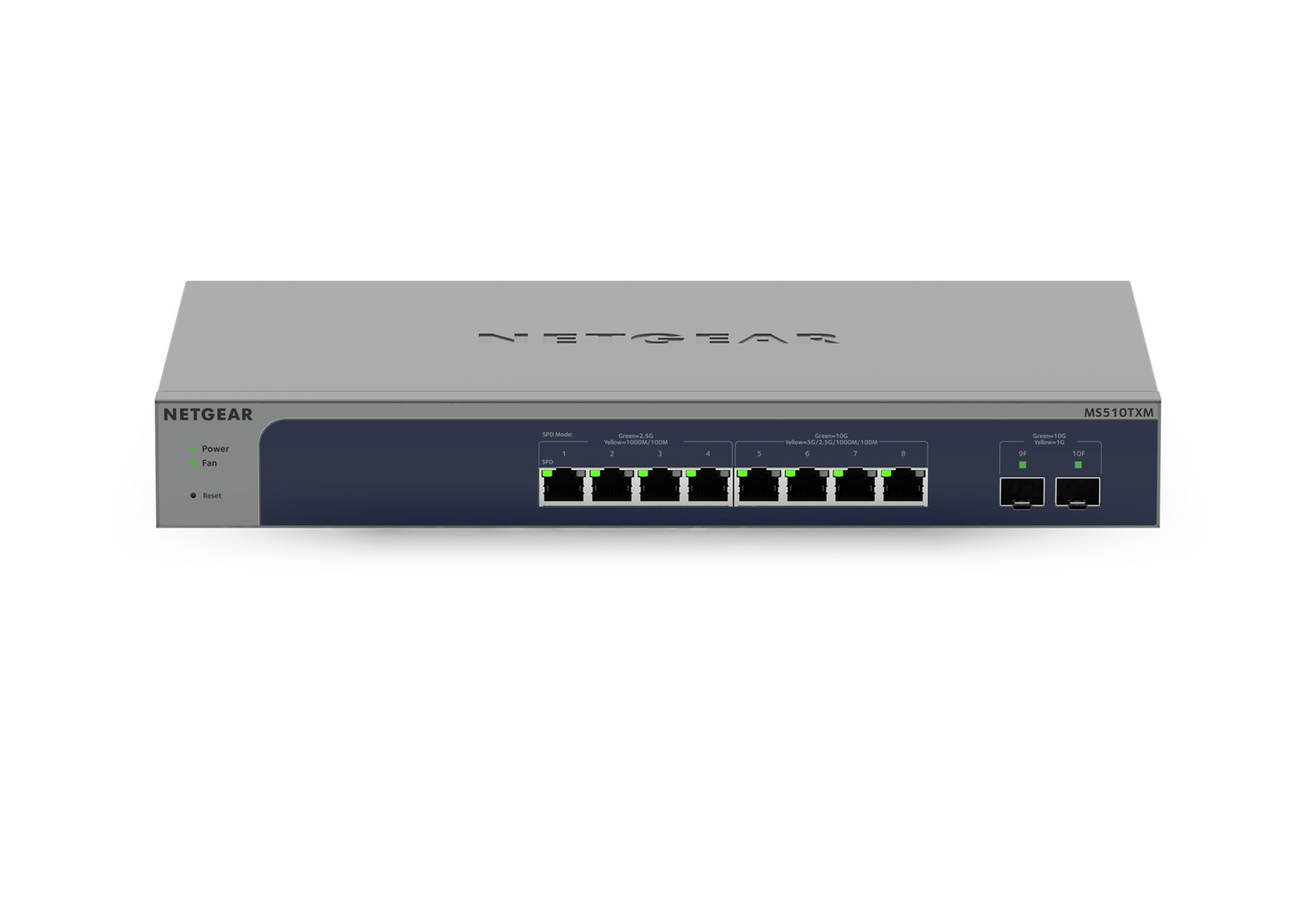

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management
The NETGEARĀ® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.

- Multi-speed Ethernet ports for flexible and auto-adaptive wired connectivity of multi-Gigabit devices.
- 2-port 10G SFP+ Fiber uplinks (1G/10GBASE-X fiber SFP+).
- Quiet desktop operation or rack mounting.
- Layer 3 static routing with 32 routes (IPv4 and IPv6).
- Easy-to-use Web browser-based management GUI.
- NETGEAR Insight Cloud management activation (1-Year Insight subscription is included).
- Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings.

14 IN STOCK

SKU: MS510TXM-100EUS

Manufacturer: Netgear Netgear

RRP Price €665.78

Specifications

Management features

Switch type
Managed
Switch layer
L2+
Quality of Service (QoS) support
Yes
Web-based management
Yes
Cloud-managed
Yes
System event log
Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
10G Ethernet (100/1000/10000)
SFP+ module slots quantity
2

Network

Networking standards
IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
10G support
Yes
Port mirroring
Yes
Broadcast storm control
Yes
VLAN support
Yes
Number of VLANs
256

Data transmission

Switching capacity
140 Gbit/s
MAC address table
32000 entries
Number of queues
8
Jumbo frames support
Yes
Jumbo frames
10000
Packet buffer memory
2 MB

Security

DHCP features
DHCPv6 snooping
Access Control List (ACL)
Yes
IGMP snooping
Yes
Password protection
Yes
Queue scheduling algorithms
WRR+SP

Multicast features

Multicast support
Yes
Number of multicast groups filtered
256

Design

Rack mounting
Yes
Product colour
Grey
LED indicators
Activity, Fan fail, Link, Power, Speed
Number of fans
2 fan(s)

Performance

Built-in processor
Yes
Processor frequency
1000 MHz
Internal memory
256 MB
Flash memory
64 MB
Noise level
25 dB
Firmware upgradeable
Yes
Mean time between failures (MTBF)
1059519 h

Power

Power source
AC
Power supply included
Yes
Power consumption (max)
47 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
0 - 50 °C
Storage temperature (T-T)
-20 - 70 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 3000 m
Heat dissipation
160.458 BTU/h

Weight & dimensions

Width
330 mm
Depth
206 mm
Height
43 mm
Weight
2.08 kg

Packaging content

Cables included
AC
User guide
Yes

Packaging data

Rack rails
Yes

Logistics data

Harmonized System (HS) code
85176990

Accessories

License
