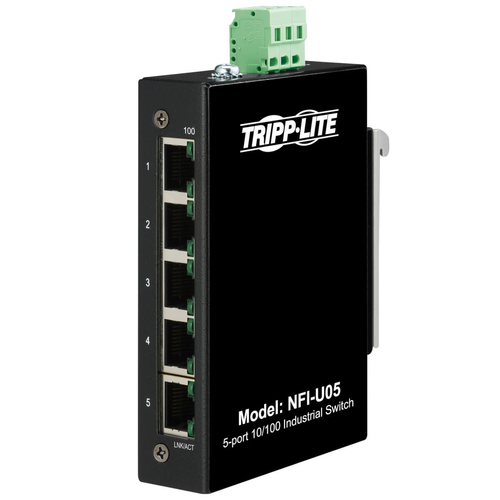

Tripp Lite NFI-U05 5-Port Unmanaged Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount

5-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN

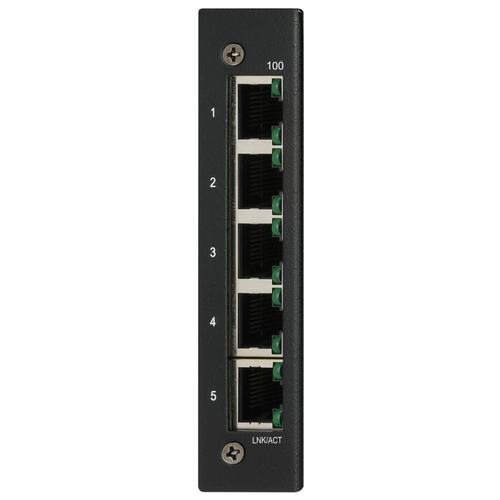

This space-saving switch transmits data over an Ethernet network. Five auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U05 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NFI-U05 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

Works with the Most Popular Web Browsers
The NFI-U05 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NFI-U05 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

Flexible Mounting Options

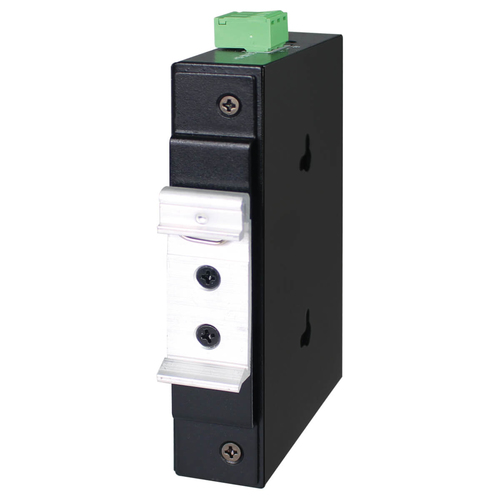

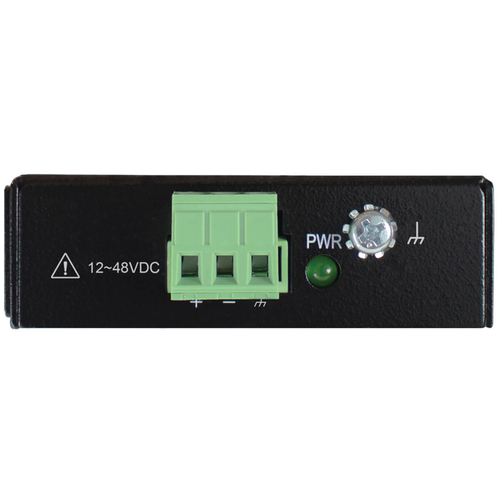

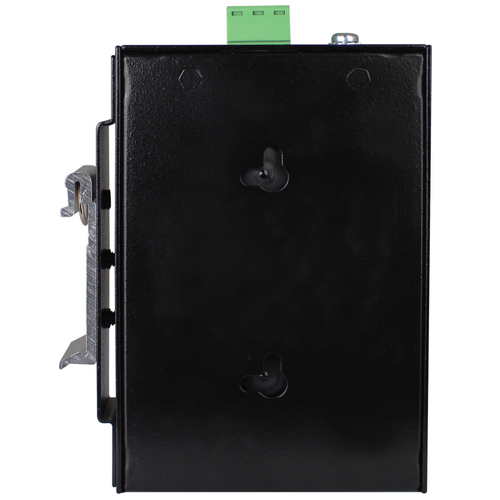

The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. It may also be wall mounted using the rear mounting holes. A 3-pin 12–48VDC terminal block supplies power input. Device power must be supplied by SELV circuit.

TAA-Compliant for GSA Schedule Purchases
The NFI-U05 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: NFI-U05

Manufacturer: Eaton Eaton

RRP Price €107.43

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
5
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
Terminal block (3-pin)

Network

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support
No
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
100 Mbit/s
Auto-negotiation
Yes
MAC address auto-learning supported
Yes

Data transmission

Switching capacity
1 Gbit/s
Jumbo frames support
No

Design

Rack mounting
No
Product colour
Black
Housing material
Aluminium
LED indicators
LAN, Link, Power
Wall mountable
Yes
DIN rail mounting
Yes

Power

Power supply included
No
DC input voltage
12 - 48 V
Input current
0.15 A
Power consumption (typical)
3 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
23.4 mm
Depth
73.9 mm
Height
109.2 mm
Weight
190 g

Packaging content

Manual
Yes

Packaging data

Package width
128 mm
Package depth
237 mm
Package height
62 mm
Package weight
310 g

Sustainability

Sustainability compliance
Yes

Technical details

Master (outer) case GTIN (EAN/UPC)
10037332264265

Certificates

Compliance certificates
CE, REACH, RoHS

Logistics data

Country of origin
Taiwan
Master (outer) case width
272 mm
Master (outer) case length
492 mm
Master (outer) case height
342.9 mm
Harmonized System (HS) code
8517.62.0020
Master (outer) case gross weight
7.14 kg
Products per master (outer) case
20 pc(s)

Accessories

License
