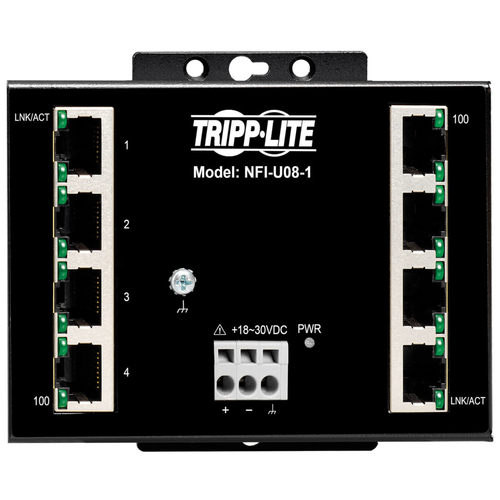

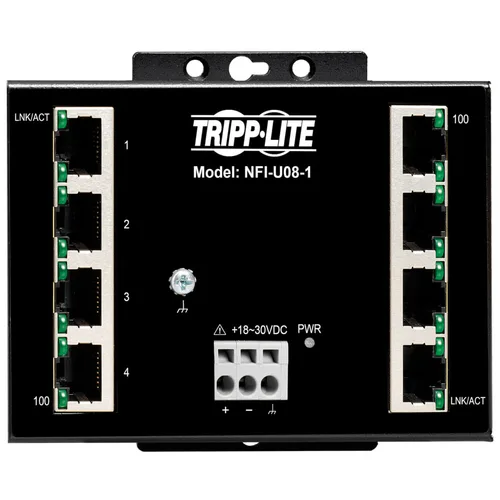

Tripp Lite NFI-U08-1 8-Port Unmanaged Fast Industrial Ethernet Switch - 10/100 Mbps, Ruggedized, -40° to 75°C, DIN/Wall Mount

8-Port Unmanaged Ethernet Switch Connects Your Devices to a LAN
This space-saving switch transmits data over an Ethernet network. Eight auto-negotiating 10/100 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.

Ruggedized Metal Housing Built to Last in Harsh Environments
The compact NFI-U08-1 adds 10/100 Mbps Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The IP30 industrial-grade aluminum case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 to 75 degrees Celsius (-40 to 167 degrees Fahrenheit).

Unmanaged Switch Requires Little to No Configuration
Quickly connect your network devices with little to no configuration. Alternative-language LEDs indicate when the switch is powered ON and which Ethernet ports are showing activity with connection speed. The NFI-U08-1 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

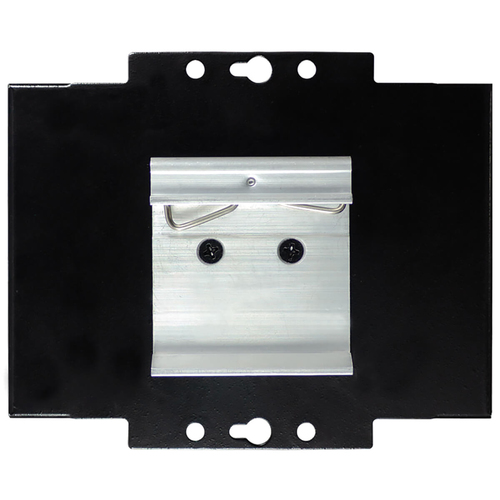

Pre-Installed DIN Rail Clip Allows for Convenient Installation
The open-type device may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 3-pin 18-30VDC terminal block supplies power input. Device power shall be supplied by 61010-2-201 R/C power with LPS (Limited Power Source).

TAA-Compliant for GSA Schedule Purchases
The NFI-U08-1 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

ON ORDER

SKU: NFI-U08-1

Manufacturer: Eaton Eaton

RRP Price €121.34

Specifications

Management features

Switch type
Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Fast Ethernet (10/100)
Power connector
Terminal block (3-pin)

Network

Networking standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
10G support
No
Flow control support
Yes
Auto MDI/MDI-X
Yes
Ethernet LAN data rates
100 Mbit/s
Auto-negotiation
Yes
MAC address auto-learning supported
Yes

Data transmission

Switching capacity
1.6 Gbit/s

Design

Rack mounting
No
Product colour
Black
Housing material
Metal
LED indicators
LAN, Link, Power
Wall mountable
Yes
DIN rail mounting
Yes

Power

Power supply included
No
DC input voltage
18 - 30 V
Input current
0.2 A
Power consumption (typical)
4 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)
No

Operational conditions

Operating temperature (T-T)
-40 - 75 °C
Storage temperature (T-T)
-40 - 85 °C
Operating relative humidity (H-H)
5 - 95%
Storage relative humidity (H-H)
5 - 95%

Weight & dimensions

Width
109.2 mm
Depth
73.9 mm
Height
30.7 mm
Weight
290 g

Packaging content

Manual
Yes

Packaging data

Package width
232.9 mm
Package depth
182.9 mm
Package height
62 mm
Package weight
420 g

Sustainability

Sustainability compliance
Yes

Technical details

Master (outer) case GTIN (EAN/UPC)
10037332264272

Certificates

Compliance certificates
CE, REACH, RoHS

Logistics data

Country of origin
Taiwan
Master (outer) case width
389.9 mm
Master (outer) case length
500.1 mm
Master (outer) case height
365 mm
Harmonized System (HS) code
8517.62.0020
Master (outer) case gross weight
10 kg
Products per master (outer) case
20 pc(s)
