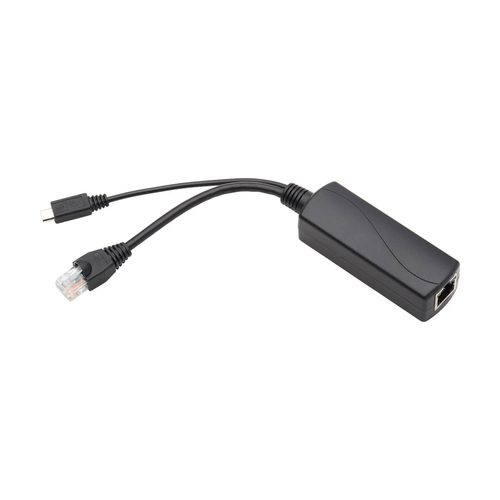

Tripp Lite NPOE-SPL-G-5VMU PoE to USB Micro-B and RJ45 Active Splitter - 802.af, 48V to 5V 1A, Up to 328.08 ft. (100 m)

Split Your PoE Signal into Separate Power and Ethernet Connections for Edge Networks
Connect the NPOE-SPL-G-5VMU PoE (Power over Ethernet) splitter to your edge network up to 328 feet (100 meters) from a PoE switch or 48V injector. The splitter separates the power and data signals, delivering 5V 1A (5W) of power to the USB Micro-B plug and 10/100/1000 Mbps to the RJ45 data plug. This allows you more flexibility in placing devices in areas where an AC outlet is unavailable and too expensive or impractical to install.

Supports Power over Ethernet to Save You Money and Give You More Installation Choices
This PoE splitter supplies the power (through its USB connector) to operate non-PoE equipment, such as security cameras, VoIP telephones and wireless access points (WAP). This saves you the expense and effort of purchasing, connecting and installing individual power supplies for each device. It also helps you install devices in areas far away from AC outlets, such as poles or ceilings. The NPOE-SPL-G-5VMU supports a wide range of input voltages from 36VDC to 57VDC and has a fixed USB output of 5VDC.

Simple Plug-and-Play Installation Has the Splitter Connected in Minutes
No configuration or software is required to add the NPOE-SPL-G-5VMU to your LAN. It complies with 802.3af (PoE), 802.3 (Ethernet), 802.3u (Fast Ethernet) and 802.3ab (Gigabit Ethernet) standards.

ON ORDER

SKU: NPOE-SPL-G-5VMU

Manufacturer: Eaton Eaton

RRP Price €16.77

Specifications

Ports & interfaces

Connector 1
RJ-45
Connector 2
RJ-45, Micro-USB Type-B
Connector 1 gender
Male
Connector 2 gender
Female
Ethernet LAN data rates
10,100,1000 Mbit/s

Performance

Product colour
Black
Cable types supported
Cat5, Cat5e, Cat6, Cat6a

Power

Input voltage
48 V
Output voltage
5 V
Output current
1000 mA

Operational conditions

Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 50 °C
Relative humidity
0 - 90%

Certificates

Compliance certificates
RoHS
Certification
CE, FCC, REACH

Weight & dimensions

Weight
50 g

Packaging data

Package width
134.9 mm
Package depth
55.1 mm
Package height
45 mm
Package weight
80 g

Logistics data

Country of origin
China
Products per master (outer) case
10 pc(s)
Master (outer) case GTIN (EAN/UPC)
10037332242140
Master (outer) case width
255 mm
Master (outer) case length
154.9 mm
Master (outer) case height
134.9 mm
Master (outer) case gross weight
800 g
Harmonized System (HS) code
8504.40.9550
