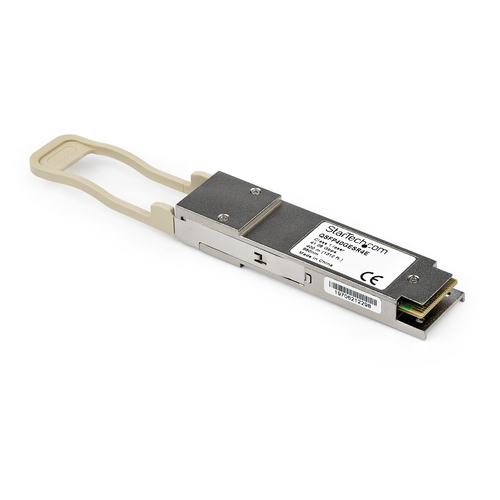

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - Multi Mode Fiber (MMF) - 40GE Gigabit Ethernet QSFP+ - MPO 300m - 850nm ~MSA Uncoded QSFP+ Module - 40GBASE-SR4 - Multi Mode Fiber (MMF) - 40GE Gigabit Ethernet QSFP+ - MPO 300m - 850nm

StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - Multi Mode Fiber (MMF) - 40GE Gigabit Ethernet QSFP+ - MPO 300m - 850nm ~MSA Uncoded QSFP+ Module - 40GBASE-SR4 - Multi Mode Fiber (MMF) - 40GE Gigabit Ethernet QSFP+ - MPO 300m - 850nm

Name: StarTech.com MSA Uncoded QSFP+ Module - 40GBASE-SR4 - Multi Mode Fiber (MMF) - 40GE Gigabit Ethernet QSFP+ - MPO 300m - 850nm ~MSA Uncoded QSFP+ Modul...
Brand: StarTech.com
SKU: QSFP-40G-ESR4-ST
Price: 366.62 EUR
Availability: OutOfStock

40 Gbps | Multi Mode Fiber | MPO | 300 m (984 ft) | Lifetime Warranty

The QSFP-40G-ESR4-ST is an MSA compatible fiber transceiver module that has been designed, programmed and tested to work with MSA brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-SR4 compliant networks, with a maximum distance of up to 300 m (984 ft).

Technical Specifications:

• Wavelength: 850nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Multi Mode Fiber
• Connection Type: MPO
• Maximum Transfer Distance: 300 m (984 ft)
• MTBF: 498,745,585 hours
• Power Consumption: Low power consumption
• Digital Diagnostics Monitoring (DDM): Yes

This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.

StarTech.com SFPs

All StarTech.com SFP & QSFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of QSFP+ modules and direct-attach QSFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.

The StarTech.com Advantage

ON ORDER

SKU: QSFP-40G-ESR4-ST

Manufacturer: StarTech.com

RRP Price €366.62

Specifications

Performance

SFP transceiver type

Fiber optic

Maximum data transfer rate

40000 Mbit/s

Interface type

QSFP+

Multi-mode fiber (MMF) supported

Yes

Fiber optic connector

MPO

SFP transceiver standard

SR4

Maximum transfer distance

300 m

Wavelength

850 nm

Fiber ethernet cabling technology

40GBASE

Digital Diagnostics Monitoring (DDM)

Yes

Features

Product colour

Silver

Hot-swap

Yes

Mean time between failures (MTBF)

498745585 h

Certificates

Certification

CE, FCC, UL

Weight & dimensions

Width

122 mm

Depth

18.6 mm

Height

8.5 mm

Weight

37.5 g

Packaging content

Quantity per pack

1 pc(s)

Packaging data

Package width

92 mm

Package depth

117 mm

Package height

34 mm

Package weight

75 g

Logistics data

Master (outer) case width

90 mm

Master (outer) case length

115 mm

Harmonized System (HS) code

85369010

Master (outer) case height

31 mm

Products per master (outer) case

100 pc(s)

Description

Manufacturer

StarTech.com

WH1 (1–2 Days)

N/A

WH2 (1–3 Days)

N/A

WH3 (5–7 Days)

N/A

Weight

0.0375 kg

Country of Origin

N/A

Datasheet

Data Sheet

Download
