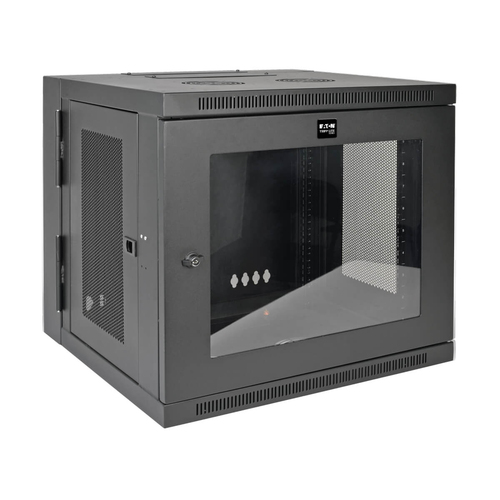

Tripp Lite SRW10USG SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Clear Acrylic Window, Hinged Back

Saves Valuable Workspace
Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way
Houses EIA-standard 19 in. rack equipment in 10U of space
Maximum load capacity of 200 lb.

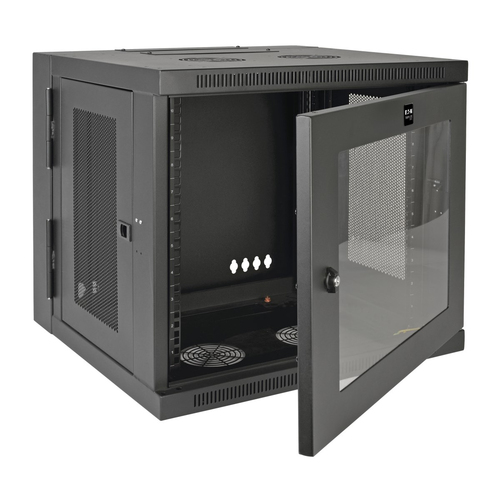

Hinged Cabinet for Convenient Access
Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance
Rotate cabinet 180° before mounting to open reversible doors left or right

Shatter-Resistant Clear Acrylic Front Window
Lets you monitor equipment without unlocking the enclosure
Prevents equipment tampering
Reduces acoustic noise
Provides extra visual flair

Keeps Important Equipment Secure
Side panels and doors lock securely to help prevent damage, tampering or theft
Vented panels allow generous airflow that keeps equipment cool
Convenient ports with removable covers allow cable routing through top and bottom

Easy Enclosure and Equipment Installation
Ships fully assembled for quick installation
Mounts to wall or rolls on floor with optional SRCASTER caster kit

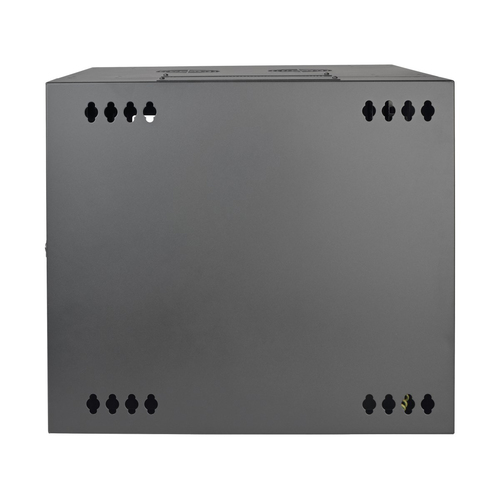

Wall-mounting holes spaced 16 in. apart for standard wall stud placement

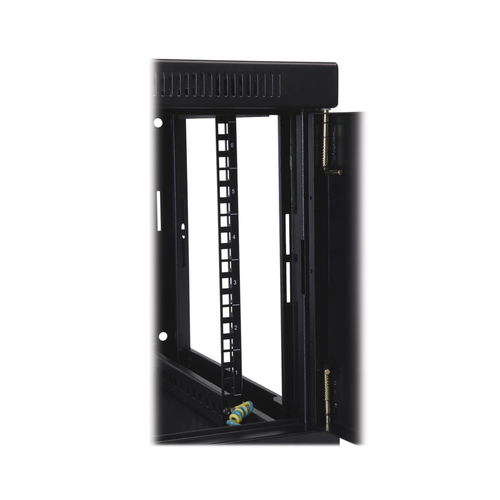

Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

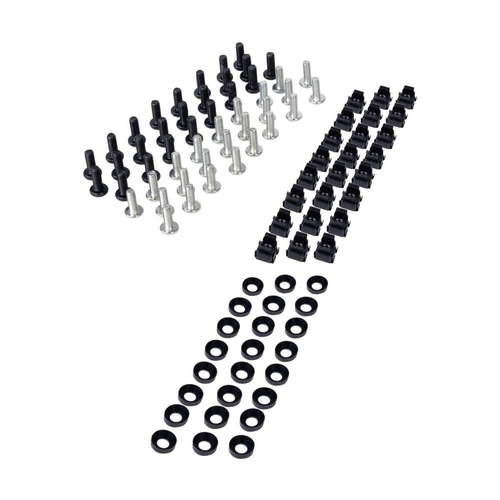

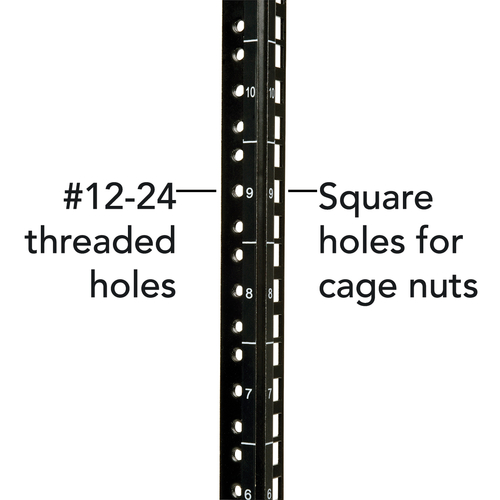

Rails support square-hole or 12-24 threaded-hole mounting
Rack spaces numbered for easy reference

Meets Payment Card Industry Standards
Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance

ON ORDER

SKU: SRW10USG

Manufacturer: Eaton Eaton

RRP Price €501.44

Specifications

Features

Rack capacity
10U
Type
Wall mounted rack
Maximum weight capacity
90.7 kg
Product colour
Black
Frame type
Closed
Removable front door
Yes
Removable side panels
Yes
Side panels included
Yes
Key lock
Yes
Number of fans
4 fan(s)
Certification
UL/CSA 60950-1, EIA-310-D, IEC 60297-3-100, IP20 Protection, RoHS

Weight & dimensions

Width
600 mm
Depth
548 mm
Height
546 mm
Weight
24 kg
Mounting depth (max)
54.8 cm

Packaging data

Wall mounting kit
Yes
Manual
Yes
Package width
670.1 mm
Package depth
612.9 mm
Package height
616 mm
Package weight
26.8 kg

Logistics data

Country of origin
China
Harmonized System (HS) code
8517.79.0000
Master (outer) case width
670.1 mm
Master (outer) case length
612.9 mm
Master (outer) case height
616 mm
Master (outer) case gross weight
26.8 kg
Products per master (outer) case
1 pc(s)
